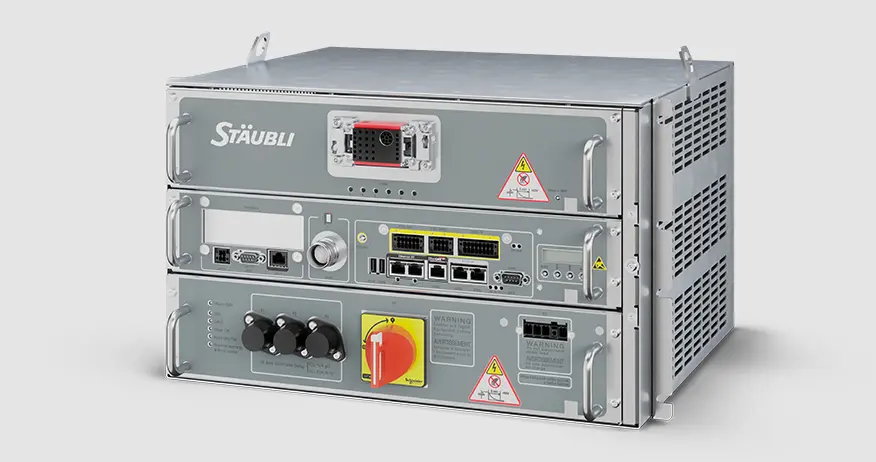

Stäubli Robotics CS9 MP Robot Controller

If you need a robot controller that never slows down your line, the Stubli Robotics CS9 MP Robot Controller is the answer. It is built to run complex motions for industrial robots. Many factories lose money when a controller cant keep up with fast cycles. This controller removes that bottleneck and lets you keep production steady. The ubli technology inside makes the system reliable and easy to integrate.

Stubli Robotics CS9 MP Robot Controller

Manufacturers often face unpredictable downtime because their controller cannot handle many I/O signals or multiple communication standards. When a controller fails, the whole cell stops, causing lost orders and unhappy customers. The CS9 MP solves this by offering a powerful four-core CPU, many Ethernet and fieldbus ports, and optional industrial chassis that protect the unit. With this controller you get continuous operation and the confidence to expand your automation. The controller also includes a built-in web server so you can monitor status from any browser.

Benefits

• You keep production running even during peak demand.
• The system talks to many fieldbuses, so you do not need extra adapters.
• Fast I/O lets you react to sensor signals in real time.
• Compact size saves space on the shop floor.
• Optional industrial chassis gives extra protection in harsh environments.

Usages

The CS9 MP fits into pick-and-place cells, welding stations, assembly lines, and packaging machines. It works with Stubli TX2-140 and TX2-160/L robots, but also can be paired with any third-party robot that supports EtherCAT or Profinet. It is ideal for automotive, electronics, food, and pharma factories that need precise motion and fast data exchange. Because it supports both master and slave modes, you can place it at the top of the network or downstream, giving you flexibility in system design.

Key Features

• Dimensions: 297 445 365 mm.
• Weight: 44 kg.
• Protection class IP20, optional IP54 with industrial chassis.
• Four-core CPU for high computing power.
• Two Ethernet ports, one EtherCAT port, two Ethernet RT ports, RS232 serial link.
• Two USB ports for easy device connection.
• Supports EtherCAT, EtherNet/IP, Profinet, Sercos III, Powerlink, Modbus.
• Master and slave communication configurations for flexible network design.
• Optional PCIe card expands processing capability.
• Fast I/O module for rapid signal handling.

Specifications
