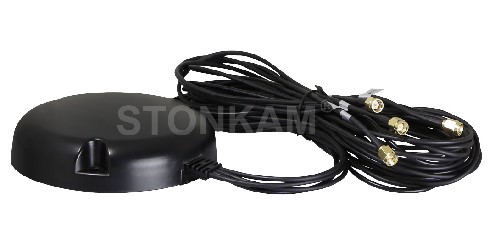

Stonkam AC564 2 x LTE MIMO/ GPS/ WIFI All-in-one Multiple Antenna

Imagine you are trying to stream video in a remote field and the signal keeps dropping. The Stonkam AC564 2 x LTE MIMO/ GPS/ WIFI All-in-one Multiple Antenna is built to stop that. It combines two LTE MIMO antennas, a GPS antenna and a Wi-Fi antenna in one compact unit. If you need reliable data, location tracking and Wi-Fi connectivity in a single mount, this product gives you exactly that. It solves weak signal and messy cabling problems for anyone who works outdoors or on the move.

Stonkam AC564 2 x LTE MIMO/ GPS/ WIFI All-in-one Multiple Antenna

The main problem many users face is a fragmented antenna setup. Separate LTE, GPS and Wi-Fi antennas create gaps in coverage, increase installation time and add points of failure. When a signal drops, a project can stall and data can be lost. This antenna bundle removes those gaps. By placing two LTE MIMO elements, a high-gain GPS element and a dual-band Wi-Fi element together, the Stonkam AC564 delivers stronger cellular links, precise positioning and steady Wi-Fi in one mount. The solution is simple: one cable, one connector and a single mounting point, which means less hassle and more uptime.

Key Features

• 2 LTE MIMO antennas covering 700-960 MHz and 1710-2690 MHz.
• Peak LTE gain of 2 dBi with VSWR 2.0.
• GPS antenna supporting BeiDou, GPS and GLONASS at 1575 MHz.
• GPS peak gain of 3 dBic and VSWR < 2.0.
• Wi-Fi antenna for 2.4 GHz and 5 GHz bands with 3 dBi gain.
• Linear polarization for LTE and Wi-Fi, RHCP for GPS.
• Durable PC+ABS housing, 120 mm diameter.
• 3 m RG174H-02 cable with SMA male connector.
• Low DC voltage 2.7-5 V and current 8-14 mA.

Specifications
