Imagine a busy road where a hidden danger can appear in a split second. The Stonkam ADA38 1080P Intelligent Pedestrian & Vehicle Detecting & Warning Camera watches that space for you. It spots people and cars, then alerts you before a collision can happen. If you have ever worried about blind spots or missed warnings, this camera gives you the safety net you need.

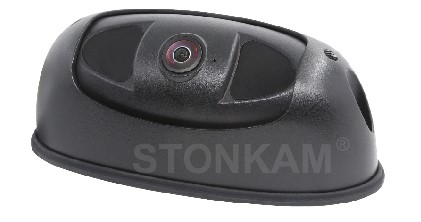

Stonkam ADA38 1080P Intelligent Pedestrian & Vehicle Detecting & Warning Camera
Many drivers and facility managers lose valuable time trying to see what is around corners or in low light. That lack of visibility can cause accidents, fines, and lost productivity. The ADA38 solves the problem by using 1080P vision and smart detection algorithms to recognize pedestrians and vehicles up to 30 meters away. It then sends a clear warning, letting you act before it is too late. The result is smoother traffic flow and safer environments.
Key Features
- 1920 x 1080 effective pixels for sharp video.
- 25/30 fps progressive scanning for smooth motion.
- Auto white balance and exposure for consistent color.
- 0.01 Lux minimum illumination works in near darkness.
- Three output modes: AHD, CVBS, fast Ethernet.
- RTSP and ISO17215 network protocols for easy integration.
- 70 front/side view, 150 rear view, 200 bird view.
- Detection range up to 30 m vertically and horizontally.
- Audio output for audible warnings.
- DC10-32 V power input supports many installations.
- ISO 16750-3 anti-vibration rating for rugged use.
- Mirror/normal image switch for flexible mounting.
Specifications
| Image Device |
|
| Effective Pixels |
1920(H) × 1080(V) |
| Pixel Size |
2.8μm × 2.8μm |
| Frame Rate |
25/30 |
| Scanning System |
Progressive Scanning |
| Sync. System |
Internal |
| Resolution |
1080P |
| Video Output |
1.0Vp-p, 75Ohm |
| Gamma Consumption |
0.45 |
| Signal to Noise Ratio |
38dB |
| White Balance |
Auto |
| Exposure |
Auto |
| Power |
|
| Power Supply |
DC10~32V |
| Operating Environment |
|
| Operating Temp. & Humidity |
–20℃~70℃, RH95%MAX. |
| Storage Temp. & Humidity |
–30℃~80℃, RH95%MAX. |
| Protection |
|
| Waterproof Rating |
IP69K |
| Anti-vibration |
ISO 16750-3 2012 (5.9G) |
| Optics |
|
| Viewing Angle |
Front / side view: 70° (Horizontal) |
| |
Rear view: 150° (Horizontal) |
| |
Bird view: 200° (Horizontal) |
| Minimum Illumination |
0.01Lux |
| Detection Distance |
Vertical side view: 0.5~30m |
| |
Horizontal narrow Angle: 0.5~30m |
| |
Horizontal wide Angle: 0.5~20m |
| |
Downward view: 8m/10m |
| Image Mode |
Mirror/Normal image switchable |
| Audio |
|
| Audio |
YES |
| Communication |
|
| Output Mode |
AHD/CVBS/Fast ethernet |
| Network Protocol |
RTSP/ISO17215 |
