Backing a large truck in tight spaces can be risky. Without a clear view, you may hit obstacles, damage cargo, or cause an accident. This problem matters because it can lead to costly repairs and safety concerns. The Stonkam FHD073 1080P IP69K Waterproof Truck Reverse Camera gives you a sharp, real-time image of what is behind the vehicle, so you can reverse with confidence.

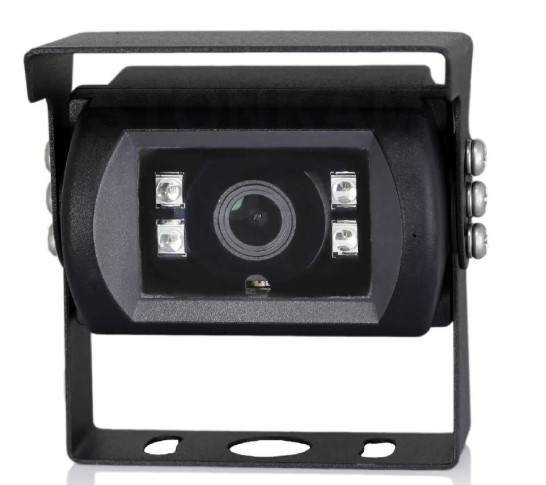

Stonkam FHD073 1080P IP69K Waterproof Truck Reverse Camera with Stonkam
Imagine pulling into a loading dock and seeing every pallet, pole, or person on your screen before the rear wheels move. The Stonkam FHD073 1080P IP69K Waterproof Truck Reverse Camera is a high-definition rear-view system designed for trucks, trailers, and heavy-duty vehicles. It captures full 1080P video at 25-30 fps and survives rain, mud, and extreme temperatures. Drivers who struggle with blind spots or who work in harsh weather will find this camera essential for safe and efficient reversing.
Key Features
-
1080P high definition
-
IP69K waterproof
-
Wide viewing angle：130° / 110° / 100° / 70° / 50° / 35°
-
Night vision distance: 8m~10m （26.25ft~32.81ft)
-
Wide power supply: DC 12V / DC10~32V
-
Anti-vibration: ISO 16750-3 (Max. 17.3G)
-
Mirror / Normal image
-
Smart-IR optional
-
Working temperature: -20ºC ~ +70ºC
Specifications
| Image Device |
|
| Image Device |
1/2.9" CMOS |
| Frame Rate |
25 fps / 30 fps |
| Effective Pixels |
1920(H) × 1080(V) |
| Pixel Size |
2.8 μm × 2.8 μm |
| Scanning System |
Progressive Scanning |
| Sync. System |
Internal |
| Resolution |
1080P |
| Video Output |
1.0Vp-p, 75Ohm |
| Gamma Consumption |
0.45 |
| AGC |
Auto |
| Signal to Noise Ratio |
Better than 52dB |
| White Balance |
Auto |
| Electronic Shutter |
1/25 (1/30)～1/50,000 Seconds |
| BLC |
Auto |
| Operating Environment |
|
| Operating Temp. & Humidity |
-20℃～70℃, RH 95% MAX. |
| Storage Temp. & Humidity |
-30℃～80℃, RH 95% MAX. |
