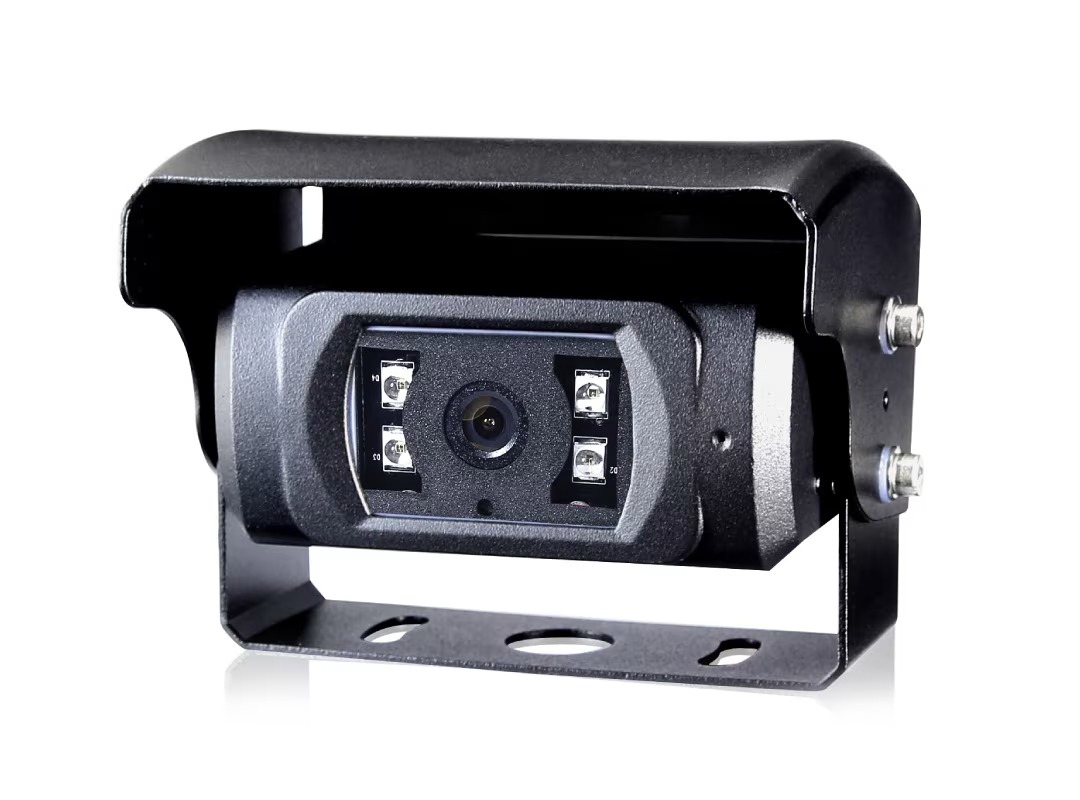

Stonkam (FHD635M) HD Auto Shutter Truck Reverse Camera IP69K 110°/130° Angle
Imagine a camera that turns a blind spot into a crystal-clear window. The Stonkam reverse camera is a high-definition 1080P unit designed for trucks and heavy-duty vehicles. Drivers who struggle with limited rear visibility need this camera to avoid costly mistakes and keep their routes on schedule. Stonkam delivers the safety and peace of mind that professional drivers demand.

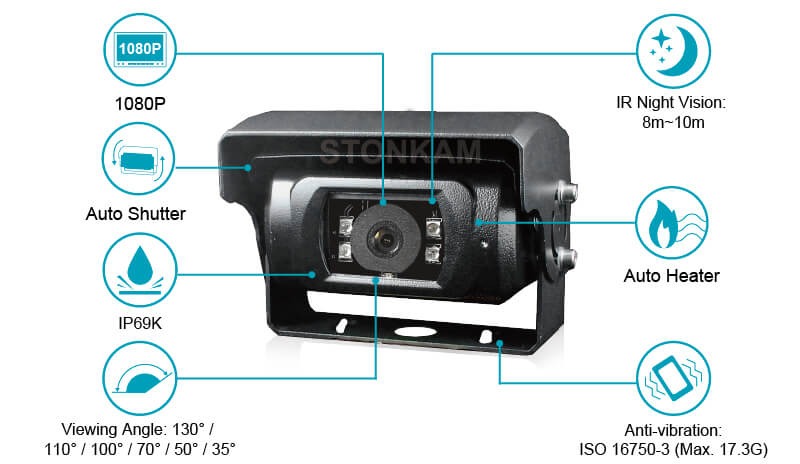

Key Features
- 1/2.9 CMOS sensor for sharp video.
- 25/30 fps frame rate for smooth playback.
- 0.1 Lux minimum illumination, 0 Lux with IR.
- Progressive scanning for detailed images.
- Dynamic range 81 dB for good contrast.
- Electronic shutter speed from 1/30 to 1/50,000 seconds.
- Anti-vibration rating 5.9G for rough roads.
- 12 V DC power supply, max 430 mA current.
- 4-pin connector for easy wiring.
- Lens options 3.6 mm / 2.8 mm with 110° / 130° Angle view.
Specifications
| Image Device |
1/2.9” CMOS |
| Frame Rate |
25 fps / 30 fps |
| Effective Pixels |
1920 (H) × 1080 (V) |
| Pixel Pitch |
2.8 μm × 2.8 μm |
| Scanning System |
Progressive Scanning |
| Sync. System |
Internal |
| Resolution |
1080P |
| Minimum Illumination |
0.1 Lux (Day), 0 Lux (with IR) |
| Microphone |
Yes |
| Video Output |
1.0 Vp-p, 75 Ohm |
| Gamma |
0.45 |
| AGC |
Auto |
| Dynamic Range |
81 dB |
| White Balance |
Auto |
| Electronic Shutter |
1/30 (1/25) to 1/50,000 seconds |
| BLC |
Auto |
| Current Consumption |
Max. 430 mA (with heater) |
| Power Supply |
DC 12 V |
| Connection |
4 PIN |
| Anti-vibration |
5.9G |
| Operating Temperature |
−20°C to 70°C, RH 95% MAX |
| Lens |
f = 3.6 mm / 2.8 mm |
| Lens Angle |
110° / 130° |
