Tired of guessing where a forklift is in a busy warehouse? The Stonkam FHD814P, 1080P HD Laser Positioning Forklift Camera gives you a clear view and exact location every time. It is a compact camera that mounts on a forklift and sends a high definition image to your monitor. If you have missed pallets, caused accidents, or lost time because operators could not see the load, this camera fixes that problem.

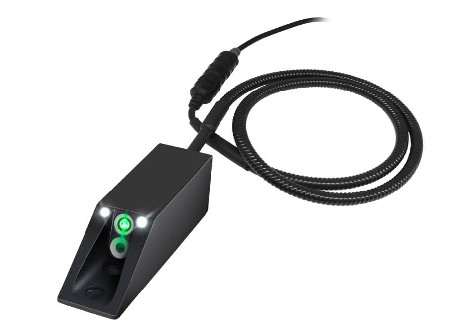

Stonkam FHD814P, 1080P HD Laser Positioning Forklift Camera
The main issue on a busy floor is that a driver cannot see the exact position of the fork when it is under a rack or in a tight aisle. When the driver cannot see, mistakes happen and productivity drops. This camera solves the issue by providing a live 1080P image with a built-in laser that shows the exact fork tip location. The result is safer moves, fewer errors and a smoother workflow.
1080P High Definition
1080P CMOS image sensor can help you get a clear view during forklift operation
Laser Positioning
Built-in laser positioning line helps the driver to accurately operate the fork, so as to avoid damage to the goods
70° Viewing Angle
Wide enough visual range can help solve blind spots problems
Magnetic housing
No need for wiring, time-saving and effortless.
Waterproof & Shock-resistant
IP69K waterproof, dustproof,shock resistant, durable and fit for forklift to work outside
Pinhole Lens
The glass outside the lens is relatively small, which can protect the lens well and prevent collisions with other objects such as sawdust, extending the it's lifespan.
Mini appearance
The camera is compact and mini in size, and can be easily installed on a slim forklift arm.
Corrugated Wire Tube
Wire tube design for impact resistance, enhancing wire durability.
Specifications
| Image Device |
|
| Image Device |
1/2.9" |
| Frame Rate |
25/30 |
| Effective Pixels |
1920 (H) × 1080 (V) |
| Pixel Size |
2.8 μm × 2.8 μm |
| Scanning System |
Progressive Scanning |
| Sync. System |
Internal |
| Resolution |
1080P |
| Video Output |
1.0Vp-p, 75Ohm |
| Gamma Consumption |
Auto |
| AGC |
Auto |
| BLC |
Auto |
| Dynamic Range |
81dB |
| Electronic Shutter |
1/30（1/25）～1/50,000 Seconds |
| Power |
|
| Power Supply |
DC10-32V |
| Power Consumption |
1.7 ~ 2.2W |
| Operating Environment |
|
| Operating Temp. & Humidity |
–20℃ ~ +70℃, RH95%MAX. |
| Storage Temp. & Humidity |
–30℃ ~ +80℃, RH95%MAX. |
| Protection |
|
| Waterproof Rating |
IP69K |
| Optics |
|
| Viewing Angle |
Horizon: 70° Vertical: 39° |
| Minimum Illumination |
0Lux |
| Night Vision Distance |
NO IR LED |
| IR-Cut Function |
No |
| Image Mode |
Normal |
| Hardware |
|
| Heater |
No |
| Audio |
No |
