Tired of fuzzy screens that make it hard to read data while on the road? The Stonkam HD127D is a 7-inch high-definition TFT LCD color monitor designed for mobile and automotive use. It gives you a sharp, bright picture even in bright daylight, so you can see navigation, diagnostics, or video without squinting. If you need a reliable display that works with a car battery, this monitor solves that problem. You will also appreciate the sturdy housing that resists vibration, so the screen stays steady on bumpy roads.

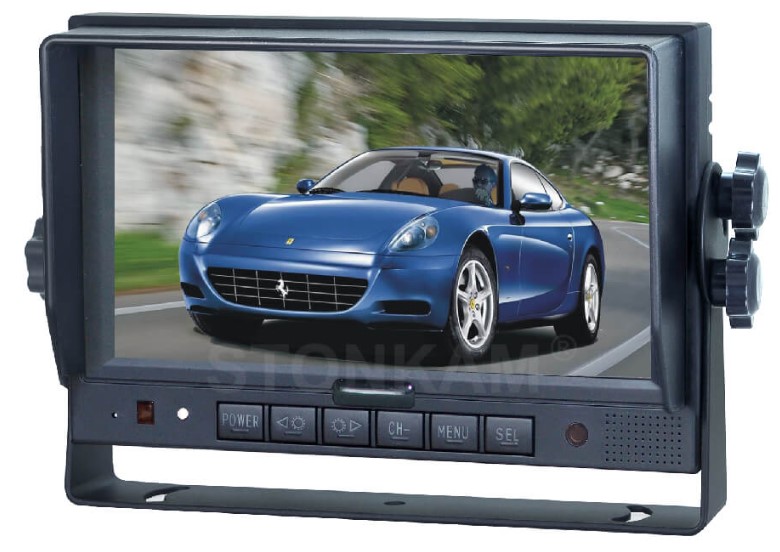

Stonkam HD127D, 7 inch High Definition TFT LCD Color Monitor
Many drivers and field technicians struggle with small, low-contrast screens that disappear in sunlight. When you cannot read the information, mistakes happen and time is wasted. The Stonkam monitor fixes this by offering 1024 x 600 resolution, 700:1 contrast, all powered from a 10-30 V car battery. The result is a clear view that lets you work safely and efficiently. The monitor also includes a built-in anti-glare coating that reduces reflections, making it easier to see at dusk or under street lights.
Key Features
- TFT LCD display with wide viewing angle and high resolution
- 4 channel cameras input, 4 reverse trigger wire
- Support vertical, mirror and normal viewing
- Multiple video formats available to cameras:1080P 30/ 1080P 25/ 720P 30/ 720P 25/ PAL/ NTSC
- Full-function remote control supported
- Support mechanical buttons with backlight
- Speaker available and users can adjust the volume from the control panel
- Multi languages available, able to be customized according to users' requirements: English, French, Portuguese, Spanish, Russian, Dutch, German, Italian
- Automatic backlight adjustment
- 10 - 32V wide power supply input supports 12V or 24V automobile battery
Specifications
| Display |
|
| Color Depth |
24 bit |
| Display Colors |
16.7M dithering |
| Resolution |
1024 × 3(RGB) × 600 |
| Contrast |
700:1 |
| Brightness |
600cd/m² |
| Viewing Angle |
U: 85°, D: 85°, R: 85°, L: 85° |
| Dot Pitch |
0.1506(H) × 0.1432(V) |
| Power |
|
| Power Supply |
Automobile storage battery (10-32V) |
| Power Consumption |
about 10W |
| Operating Environment |
|
| Operating temp. & humidity |
-20ºC~+70ºC, RH90%MAX |
| Storage temp. & humidity |
-30ºC~+80ºC, RH90%MAX |
| Physical Specification |
|
| Dimension |
182mm (W) × 122mm (H) × 28.7mm (T) (without flush mount)
199mm (W) × 139mm (H) × 31mm (T) (with flush mount)
|
