Driving without a clear view of all mirrors can be risky. When you cannot see blind spots, accidents happen and stress builds. The Stonkam HD136D gives you four camera feeds on a bright 7-inch screen, so you always know what is around your vehicle. It works in any weather and fits most cars, trucks, and RVs, making safe driving easier.

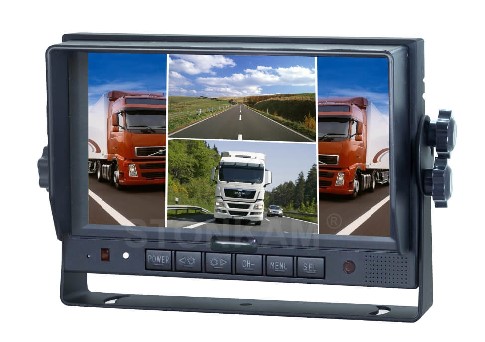

Stonkam HD136D, 7 inch 4 Channel HD quad-view Vehicle Monitor with Stonkam
Imagine never guessing what is behind you again. The Stonkam HD136D is a 7-inch vehicle monitor that shows four HD camera angles at once. It is designed for drivers who need full visibility while parking, towing, or navigating tight streets. If you have struggled with blind spots or missed obstacles, this monitor gives you a clear solution. Stonkam builds the hardware to be reliable, bright, and easy to install, so you can focus on the road instead of worrying about what you cannot see.
Key Features
- 7-inch LCD with 1024 x 600 resolution.
- Supports 1080P30, 1080P25, 720P30, 720P25 video formats.
- Four video inputs and four audio inputs.
- Contrast ratio 700:1 for sharp images.
- Viewing angle 85 all around for clear sight from any seat.
- Aspect ratio 16:9 matches most camera outputs.
- Power input 10-32 V, cameras powered up to 4 500 mA at 12 V.
- Compact design fits under dash or on the windshield.
- Plug-and-play installation reduces setup time.
Specifications
| Display |
|
| System Format |
1080P30/1080P25/720P30/720P25 |
| Resolution |
1024 × 3(RGB) × 600 |
| Brightness |
600 cd/m² |
| Contrast |
700:1 |
| Viewing Angle |
U: 85° / D: 85°, R/L: 85° |
| Aspect Ratio |
16:9 |
| Dot Pitch |
0.1506(H) × 0.1432(V) |
| Video & Audio |
|
| Video Input |
4 CH |
| Audio Input |
4 CH |
| Power |
|
| Power Input |
10V-32V |
| Power for Cameras |
Max. 4 × 500mA, 12V |
| Power Consumption |
Max.25W |
| Operating Environment |
|
| Operating Temperature |
-20~+70℃ |
| Storage Temperature |
-30~+80℃ |
