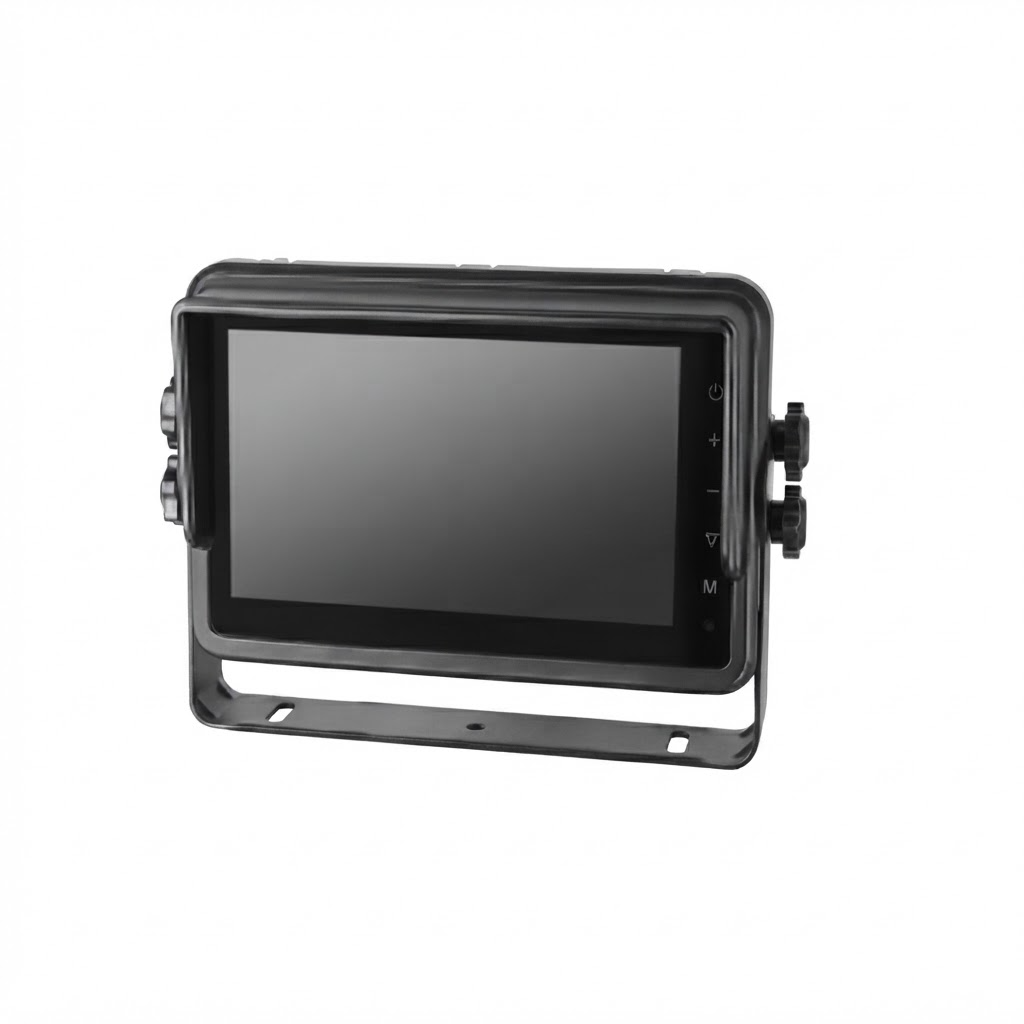

HD277R 7'' HD Waterproof Vehicle Video Recording Quad Monitor
It is 7 inch Waterproof Vehicle Video Recording Monitor with Split-screen combines a quad-view display, built-in video recording, and broad camera compatibility in a single device. It provides reliable real-time monitoring, secure video storage, and stable operation for a wide range of vehicle and mobile equipment applications.
Key Features
-
Built-in recording and secure local storage preserve critical operational footage for incident review, driver training, and maintenance analysis, eliminating the need for a separate recording device.
-
Supports multiple analog and IP camera formats, allowing seamless integration with existing vehicle monitoring systems while reducing upgrade costs and simplifying system expansion.
-
Multiple display layouts enable operators to monitor different camera views simultaneously, improving surrounding visibility and supporting safer vehicle operation in various working scenarios.
-
Designed for demanding vehicle environments with IP66 protection, intelligent system diagnostics, and image anomaly detection to help ensure stable performance and continuous monitoring.
Integrated Recording & Secure Storage
This 7-inch Waterproof Vehicle Video Recording Monitor combines display and recording in a single unit, eliminating the need for a separate DVR while ensuring continuous video storage.
- Supports loop recording and alarm-triggered recording
- Up to 1 TB Micro SD storage with a lockable card slot
- Local video playback for quick incident review
Broad Camera Compatibility
Designed to integrate with a wide range of vehicle camera systems.
- Supports CVBS, TVI, AHD, CVI, and IPC video inputs
- Compatible with existing monitoring systems
- Optional CANBUS, RS232, and RS485 expansion interfaces

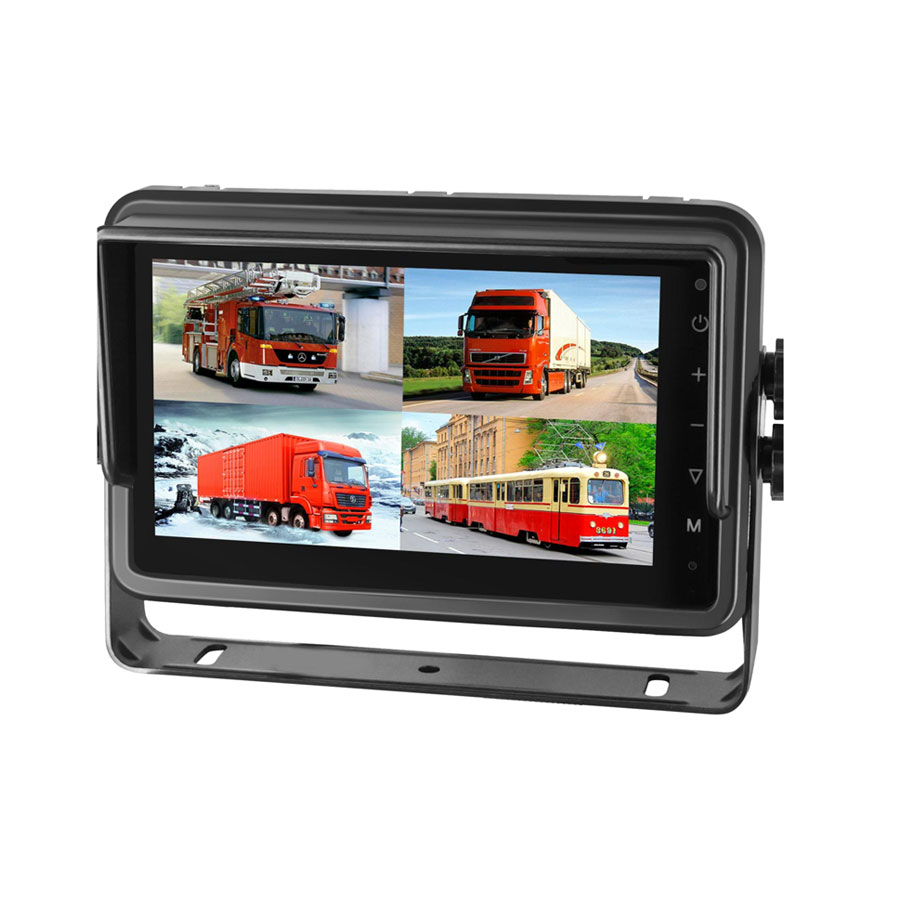

Intelligent Multi-View Monitoring
Monitor multiple camera views simultaneously with flexible display layouts that adapt to different driving and operating scenarios.
- Single, split-screen, and quad-view display modes
- Adjustable Picture-in-Picture (PIP) size and position
- Touchscreen, button, and remote-control operation
Reliable All-Weather Operation
Built for demanding vehicle applications with durable hardware and intelligent monitoring functions.
- IP66-rated waterproof enclosure
- IPS display with 1024 × 600 resolution
- Failure diagnosis and image anomaly detection
- Alerts for image freezing, blurring, and obstruction
Specifications
| Brightness |
600 cd/m2 |
| LCD Dimension |
7" |
| Resolution |
1024x600 (RGB) |
| Maximum Number of Cameras |
4 |
| Viewing Angle |
U: 85°/ D: 85°, R/L: 85° |
| Audio Input |
4 |
| Trigger |
5 |
| Contrast |
700 |
| Video Input |
4-channel camera input, support mutiple resolutions (1080P25/1080P30/720P25/720P30/PAL/NTSC) |
| Storage |
1*Micro SD (512G) |
| Operating Temperature |
-20 ~ +70℃, RH 90% |
| Storage Temperature |
-30 ~ +80℃, RH 90% |
| Mirror Function |
Yes |
| Split Screen |
Yes |
| Power Consumption |
Max 30W |
| Loudspeaker |
1W/8Ω |
| Power Supply |
DC 10V-32V |
| Accessories |
1- U-support bracket
1- Sun shield
4- Angle adjustment screws
1- Remote control |
