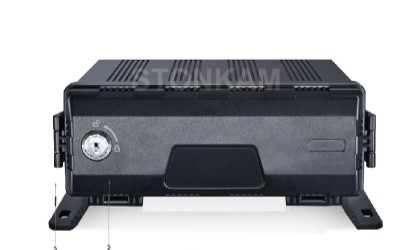

Stonkam HD29, 1080P Waterproof Hard Disk Box, 4G 8CH Vehicle DVR System
Stonkam HD29, 1080P Waterproof Hard Disk Box, 4G 8CH Vehicle DVR System
Stonkam HD29, 1080P Waterproof Hard Disk Box, 4G 8CH Vehicle DVR System

Stonkam HD29, 1080P Waterproof Hard Disk Box, 4G 8CH Vehicle DVR System

UK Free Shipping UK Free Shipping over £249


Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Product Code: CNTR-226

MPN #: HD293

Imagine driving and knowing every angle of your journey is saved in crystal clear video. The Stonkam HD29, 1080P Waterproof Hard Disk Box, 4G 8CH Vehicle DVR System records up to eight high-definition cameras and stores the footage safely even in rain or dust. Many drivers lose evidence after an accident because their recorder cannot handle harsh weather or multiple feeds. This device gives you reliable proof when you need it most.



Stonkam HD29, 1080P Waterproof Hard Disk Box, 4G 8CH Vehicle DVR System

The biggest problem for fleet owners and private drivers is missing video when a crash or theft occurs. Without clear footage, insurance claims stall and legal disputes grow. This matters because every minute of lost video can cost money and peace of mind. The Stonkam system solves the issue by capturing up to eight 1080P streams, protecting the unit with waterproof housing, and adding 4G connectivity for remote access. You get instant, reliable evidence wherever the road takes you.





Key Features
    • Supports up to 8 analog HD cameras at 1080P.
    • H.264 compression reduces storage needs.
    • 2.5 inch SATA SSD slot, up to 2 TB capacity.
    • Optional 128 GB SD card slot for backup.
    • G-sensor detects sudden motion and triggers alarms.
    • 8 alarm inputs and 2 alarm outputs for external triggers.
    • Built-in 4G/3G module for remote video streaming.
    • Wi-Fi hotspot option for local network access.
    • RS232, RS485, CAN, and USB ports for easy integration.
    • Linux OS with graphical OSD menu for simple setup.
    • Operating temperature from -20 C to 70 C.
    • 12 V@4 A output and 100 mW standby power consumption.



Specifications
System
Operating System Linux
Operating Interface Graphical menu operation interface(OSD)
Video Permission Administrator & user setting
Video
Video Input Max 8ch 1080P analog high definition
CVBS Output 1CH 6pin aviation connector output PAL/NSTC
HD Output 1CH 1080P
Video Display 1 or 4 or 8CH
Video Standard PAL: 25FPS, NTSC: 30FPS
Compression H.264 main profile
Total Resources 1080P PAL: 200FPS; NTSC: 240FPS
Audio
Audio Input 8 channels
Audio Output 2 channels
Record Format Synchronized video & audio recording
Audio Compression ADPCM
Digital Processing & Storage
Video Quality 1~8 level adjustable
Video Bit Rate 128kbps~6Mbps/channel
Audio Bit Rate 32kbps
Storage 2.5 inch SATA SSD x 1, max 2TB; SD card x 1, max 128GB
Alarm
Alarm Input 8 channels
Alarm Output 2 channels
Motion Detection High / Low / Off
Interface for Communication
IR 1 channel
RS232 2 channels
RS485 2 channels
CAN 1 channel
RJ45 1 channel
USB2.0 1 channel
USB3.0 1 channel for file backup and firmware upgrade
Wireless
3G/4G HSPDA/EVDO/FDD-LTE/TDD-LTE module optional
WIFI optional
WIFI Hotspot/AP optional
G-Sensor/Gyroscope Available
Software
Windows Client Available
iOS Client Available
Web Portal Available
Power
Input 10~32V
Output 12V@4A
Max Power Consumption 60W
Standby Power Consumption 100mW
Electrical Specifications
Operating Temperature & Humidity -20~70℃<80%
Clock Built-in clock, Calendar
Super Capacitor Available
Video Input Impedance 75ohm
Video Output Voltage 1Vpp CVBS output
