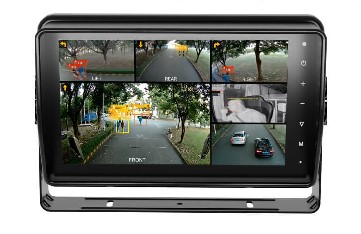

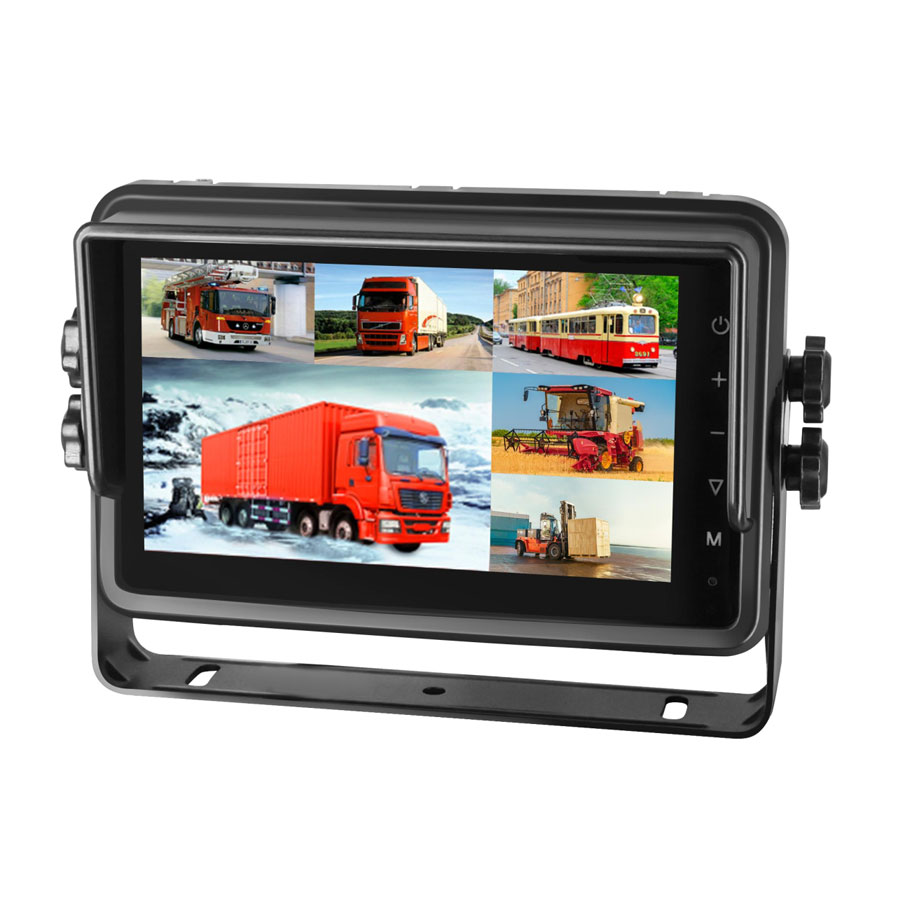

HD100297RSW HD 10.1'' 6CH IP66 Vehicle Recording AI Monitor
It is 10.1" 6CH AI Vehicle Recording Monitor combines AI detection, HD video recording, wireless connectivity, and vehicle monitoring in a single display. It helps improve driving safety, capture reliable video evidence, and simplify onboard monitoring without an external DVR.
Key Features
- HD 10.1" AI Recording Monitor
- Waterproof IP66
- Support SSD/MicroSD recording
- 6-CH BSD included
- 4-CH 360 AVS + 2-CH AHD INPUTS or 6-CH BSD/DMS/ADAS/APC are Optional
- Multiple video formats availabl
- Anti-glare film for monitor screen
Highlights
Multi-Algorithm AI Detection
• Supports multiple AI algorithms, including ADAS, BSD, DMS, APC, and other AI functions.
• Provides real-time visual and voice alerts.
• Automatically records AI-detected events.
Intelligent Connectivity for Remote Monitoring
• Supports live video, remote playback, and location tracking.
• Compatible with CMSV6, Wialon, and JT/T 808 platforms.
• Supports remote configuration and OTA upgrades.
HD Video Recording & Evidence Management
• Supports up to 6-channel video recording.
• H.264/H.265 video compression.
• Supports loop recording and event recording.
• Supports Micro SD card and SSD storage.
Specifications
| Display |
|
| Brightness |
600 cd/m² |
| LCD Dimension |
10.1" |
| Resolution |
1024 × 600 |
| Maximum number of Cameras |
6 |
| Viewing Angle |
U: 85° / D: 85°, R/L: 85° |
| Aspect Ratio |
16:9 |
| Contrast |
700:1 |
| Number of Colours Supported |
16.7M |
| Video & Audio |
|
| Video Input |
6-channel camera input, support mutiple resolutions
(1080P25/1080P30/720P25/720P30/PAL/NTSC）
|
| Audio Input |
6 |
| Trigger |
5 |
| Storage |
|
| Storage |
2 x Micro SD(512G) + 1 x SSD(2T)
|
| Protection |
|
| Waterproof Rating |
IP66 |
| Anti-vibration |
ISO 16750-3 |
| Power |
|
| Power Supply |
DC 10V-32V |
| Power Consumption |
Max. 30W |
| Audio |
|
| Loudspeaker |
1W/8Ω |
| Operating Environment |
|
| Operating Temperature |
-20 ~ +70℃ |
| Storage Temperature |
-30 ~ +80℃ |
| Others |
|
| Blind Spot Detection |
6-CH BSD is included |
| Optional AI Safety Upgrade |
4-CH 360 AVS + 2-CH AHD INPUTS and 6-CH BSD/DMS/ADAS/APC are optional |
| GPS |
Yes, Included |
| 4G |
Optional |
| 360° View |
2D only
3D: Not supported |
