Driving a truck, trailer, or RV without a clear view of the rear can be dangerous. Blind spots make parking, reversing and lane changes stressful, and accidents can cost time and money. The Stonkam HDW127Q 7 inch HD 2.4GHz Digital Wireless Vehicle Quad-view Monitor gives you a bright, real-time picture of what is behind your vehicle, so you can move with confidence. You will also save time because you no longer need to rely on spotters or guesswork.
Stonkam HDW127Q 7 inch HD 2.4GHz Digital Wireless Vehicle Quad-view Monitor with Stonkam

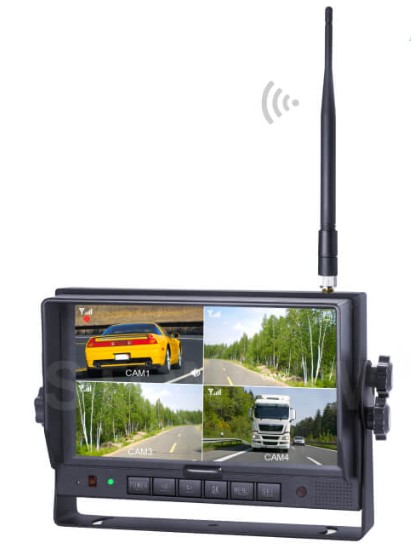

See behind you like never before. The Stonkam HDW127Q is a 7-inch high-definition monitor that receives video from up to four cameras wirelessly. It is designed for trucks, trailers, buses and RVs that need a clear rear view without messy cables. If you struggle with limited visibility, this monitor solves the problem by delivering a crisp 1024600 picture on a bright screen, even in low light. The monitor also includes a built-in speaker so you hear alerts while you watch the video.
Key Features
-
Support 4CH wireless camera and wireless transmitter
-
Display mode supports quad-view mode, split-view mode, single view mode, and the channels for the quad-view and split-view can be set flexibly
-
With built-in recorder (supports 128GB Micro SD card), support 4CH real-time recording and video playback
-
Supports both manual and automatic pairing
-
Supporting 1080P/720P camera input
-
Touch screen optional
-
5 trigger lines input, includes 4 channel single view trigger display and 1 channel split view trigger display, and the split view image can be set flexibly. In addition, trigger delay and priority can be adjusted freely.
-
Support automatic brightness adjustment; screen brightness decreases automatically after the environment gets dark for 3 seconds.
-
Automatic scan available, scanning channel and scanning time can be choosed.
-
Support power fail safeguard by super-capacitor.
-
Able to set reversing marking line, adjusting and calibrating freely.
Specifications
| Display |
|
| LCD Dimension |
7" |
| Resolution |
1024 × 3 (RGB) × 600 |
| Contrast |
700:1 |
| Brightness |
600cd/m² |
| Viewing Angle |
U:80 / D:85, R/L:85 |
| Pixel Size |
0.1506(W) × 0.1432(H) |
| Aspect Ratio |
16:9 |
| Wireless |
|
| Operating Frequency |
2400MHz ~ 2483.5MHz(ISM band) |
| Receiving Sensitivity |
-78dBm |
| Transmission Power |
FCC≤26dBm, CE≤20dBm, MIC≤10dBm |
| Compression |
H.264 |
| Modulation |
FHSS |
| Delay |
200ms |
| Transmission Distance |
FCC≤300 MCE≤200 MMIC≤60 M |
| Video |
|
| Channel |
4 CH |
| System Format |
PAL / NTSC |
| Storage |
|
| Storage |
Micro SD Card, up to 128GB |
| Audio |
|
| Loudspeaker |
1W/8Ω |
| Power |
|
| Power Supply |
DC 10-32V |
| Power Consumption |
Max.10W |
| Operating Environment |
|
| Operating temp. & humidity |
-20~+70ºC, RH90%MAX |
| Storage temp. & humidity |
-30~+80ºC, RH90%MAX |
