If you need to watch several camera feeds on a single screen while driving, you often end up with tangled wires, blurry images, or missed alerts. This makes it hard to keep your vehicle safe and to record important events. The Stonkam HMU436, 6-Channel HD Vehicle Video Multiplexer solves these problems by combining up to six video sources into one clear, adjustable display. It gives you reliable video, easy control, and protection against harsh road conditions.

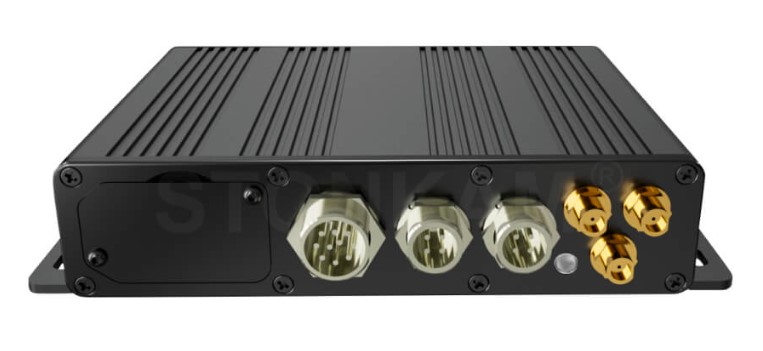

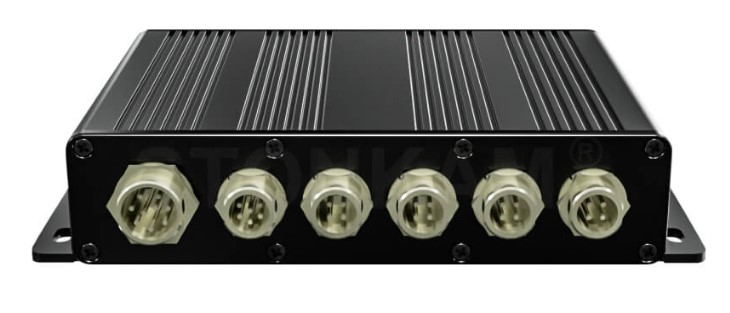

Stonkam HMU436, 6-Channel HD Vehicle Video Multiplexer with Stonkam
Imagine a device that lets you see every camera on your truck without switching cables. The Stonkam HMU436 is a compact video hub that merges six AHD or CVBS cameras into one monitor. It is built for fleets, police cars, and anyone who needs instant video from multiple angles. Without this unit, you would have blind spots and slower reaction times. Stonkam gives you a single, reliable view that keeps you in control.
Key Features
- Six channels support 1080P25/30, 720P25/30, PAL, NTSC.
- Outputs AHD and CVBS signals for flexible monitor choices.
- Display modes: single, dual, quad, 5-split, 6-split.
- Horizontal and vertical image flip to correct camera orientation.
- Auto-scan with adjustable interval from 1 to 60 seconds.
- Six trigger inputs with customizable delay and priority.
- IP66 rating protects against water and dust.
- ISO 16750-3 anti-vibration design for rough roads.
- 12 V camera power output simplifies wiring.
- Remote control with optional extension cable.
- DC 10-32 V power range, max 6 W consumption.
Specifications
| Video |
|
| Supported Camera Resolutions |
Six-channel camera resolution support: 1080P25/1080P30/720P25/720P30/PAL/NTSC |
| Video Formats |
AHD(1080P25/1080P30/720P25/720P30), CVBS（PAL/NTSC) output |
| Display Modes |
Single, dual, quad, 5-split and 6-split view display modes available |
| Images Flipping Function |
Images can be set to flip horizontally or vertically |
| Automatic Scan |
Support auto scanning, with scanning sequence and duration editable.
Scanning time is adjustable from 1 to 60S
|
| Reverse Cursor |
Optional cursor switch, position can be adjusted up and down, left and right |
| Triggering Function |
Six trigger wires, with trigger display image, delay and priority adjustable |
| Protection |
|
| Waterproof Rating |
IP66 waterproof and dustproof control box, which could be applied even if in bad weather |
| Anti-vibration |
ISO 16750-3（2.13G） |
| System Features |
|
| Languages |
Support 12 languages; Language can be customized according to users' needs |
| Camera Power Supply Function |
Provide 12V power supply to the camera, which is convenient for users to install |
| Remote Control |
Adopt remote control, and support remote control extension cable |
| Power |
|
| Power Supply |
DC: 10-32V |
| Power Consumption |
Max. 6W |
| Operating Environment |
|
| Operating Temperature |
-20℃～70℃ |
| Storage Temperature |
-30℃～80℃ |
| Physical Specification |
|
| Dimension of Multiplexer Box |
164 × 110.6 × 33.5 mm |
