Imagine missing a crucial moment because your camera cannot see the whole scene. The Stonkam MN150C(CMOS/1080P) 1080P Super Wide Angle CMOS Board Camera captures every detail in full HD, even in low light. If you need a reliable eye for security, robotics or DIY projects, this camera solves the blind spot problem and gives you clear, wide angle video.

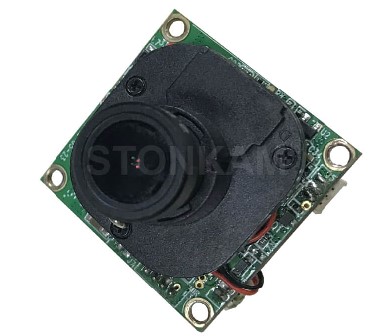

Stonkam MN150C(CMOS/1080P) 1080P Super Wide Angle CMOS Board Camera
Many users struggle with cameras that cut off corners or become blurry when the light changes. Missing those edges can leave a property unprotected or a robot blind to obstacles. This camera removes that risk by offering a super wide viewing angle and automatic image adjustments. The result is a smooth, full-scene view that works day and night, so you can trust what you see.
Key Features
- 1/2.8 inch color CMOS sensor.
- 1920 by 1080 effective pixels.
- Frame rates of 25 or 30 fps.
- Progressive scanning system.
- Internal synchronization.
- Video output 1.0 Vp-p, 75 Ohm.
- Signal to noise ratio better than 52 dB.
- Auto backlight compensation.
- Electronic shutter range from 1/25 to 1/50000 second.
- Operating temperature from -20C to +70C, humidity up to 95%.
- Storage temperature from -30C to +80C, humidity up to 95%.
- Viewing angles from 35 to 240 depending on model.
Specifications
| Image Device |
|
| Image Device |
1/2.8” Color CMOS |
| Frame Rate |
25fps / 30fps |
| Effective Pixels |
1920(H) × 1080(V) |
| Sensing Area |
5.568mm(H) × 3.132mm(V) |
| Scanning System |
Progress |
| Sync. System |
Internal |
| Resolution |
FHD 1080P |
| Horizontal Sync. Frequency |
1H Period = 35.56us / 29.63us |
| Vertical Sync. Frequency |
25Hz / 30Hz |
| Video Output |
1.0Vp-p, 75 Ohm |
| Gamma Consumption |
0.45 |
| AGC |
Auto |
| Signal to Noise Ratio |
Better than 52dB |
| White Balance |
Auto |
| Electronic Shutter |
1/25(1/30)~1/50,000 Seconds |
| BLC |
Auto |
| Audio |
Yes |
| Power |
|
| Power Supply |
DC 12V / DC 10-32V (Optional) |
| Operating Environment |
|
| Operating Temp. & Humidity |
-20℃ ~ +70℃, RH 95% MAX. |
| Storage Temp. & Humidity |
-30℃ ~ +80℃, RH 95% MAX. |
| Optics |
|
| Minimum Illumination |
0.1 Lux (day), 0 Lux (with IR) |
| Viewing Angle |
240° / 200° / 150° / 130° / 110° / 100° / 70° / 50° / 35° (depending on models) |
