Finding a reliable camera module for security or video projects can be frustrating. Low resolution, poor low-light performance, and mismatched video formats often lead to blurry footage and missed details. The Stonkam MN150C(CMOS/D1) solves these issues by delivering 600 TV lines of clear image, automatic gain and white balance, and a built-in audio channel, so you get sharp video that works with PAL or NTSC systems right out of the box.

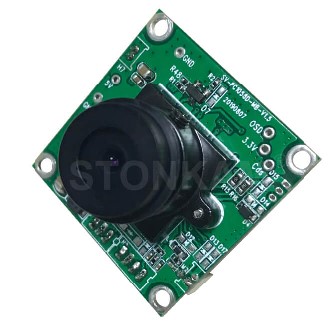

Stonkam MN150C(CMOS/D1), 600 TV Lines CMOS Camera Module with Stonkam
Imagine a tiny camera that never lets you down, even in dim rooms or outdoor rain. The Stonkam MN150C(CMOS/D1) is a 1/3-inch color CMOS sensor that fits into tight spaces while delivering crisp 960576 (PAL) or 960480 (NTSC) pictures. It syncs internally, so you do not need extra circuitry, and it includes auto-gain, auto-white-balance and back-light compensation. If you need a reliable eye for a DVR, a robot, or a home-monitoring system, this module gives you the picture quality you expect without extra hassle.
Features:
-
Auto AGC
-
Internal Synchronization
-
Auto BLC
-
Low Power Consumption
-
32 x 32mm（dimension）
Specifications
| Image Device |
|
| Image Device |
1/3” Color CMOS |
| System Format |
PAL/NTSC |
| Effective Pixels |
PAL: 960 × 576 pixels; NTSC: 960 × 480 pixels |
| Sensing Area |
4.880mm(H) × 3.67mm(V) |
| Scanning System |
Interlace |
| Sync. System |
Internal |
| Resolution |
600 TV Lines |
| Horizontal Sync. Frequency |
15.625KHz / 15.734KHz |
| Vertical Sync. Frequency |
50Hz / 60Hz |
| Video Output |
1.0Vp-p, 75 Ohm |
| Gamma Consumption |
0.45 |
| AGC |
Auto |
| Signal to Noise Ratio |
Better than 43.3dB |
| White Balance |
Auto |
| Electronic Shutter |
Auto: 1/50(PAL) 1/60(NTSC) 1/100000 |
| BLC |
Auto |
| Audio |
Yes |
| Power |
|
| Power Supply |
DC 12V |
| Operating Environment |
|
| Operating Temp. & Humidity |
-20℃~+70℃, RH 95% MAX. |
| Storage Temp. & Humidity |
-40℃~+80℃, RH 95% MAX. |
| Optics |
|
| Minimum Illumination |
0.1 Lux(day), 0 Lux(with IR) |
| Viewing Angle |
150° / 120° / 92° / 69° (depending on models) |
