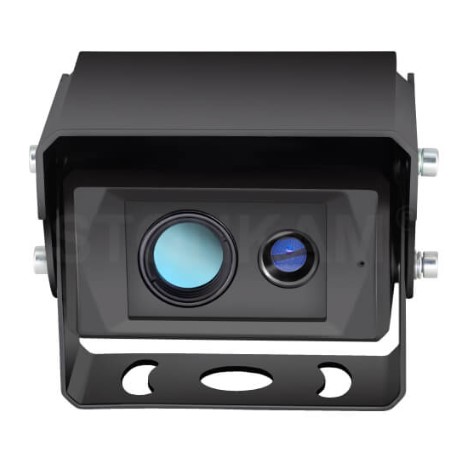

Stonkam TC639-T6 Infrared Thermal Imaging Dual Spectrum Vehicle AI Camera IP69K FHD 92° Angle

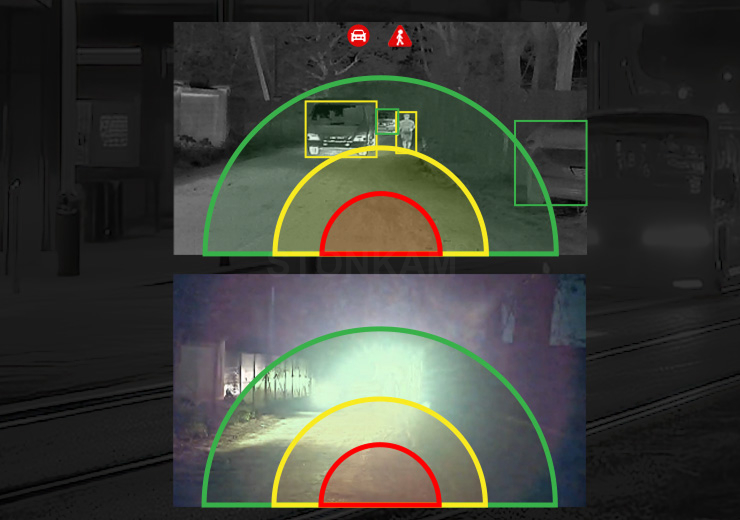

Drivers often struggle with blind spots after dark or in bad weather. Missing a pedestrian, animal, or another vehicle can lead to accidents and costly repairs. The Stonkam system removes that risk by blending a high-definition visible camera with a thermal infrared sensor. You get real-time video that shows heat signatures and clear images at the same time, so you can react faster and drive safer.
Key Features

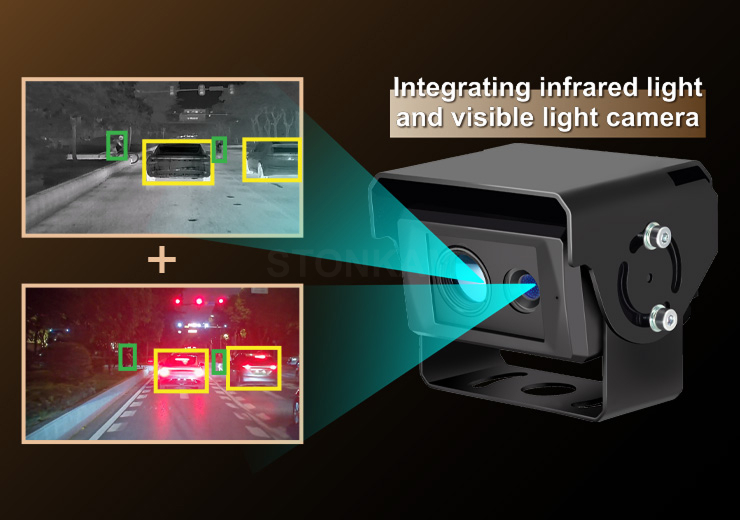

- Dual spectrum camera: visible HD 1920 x 1080 at 25/30 fps and infrared 640 x 512

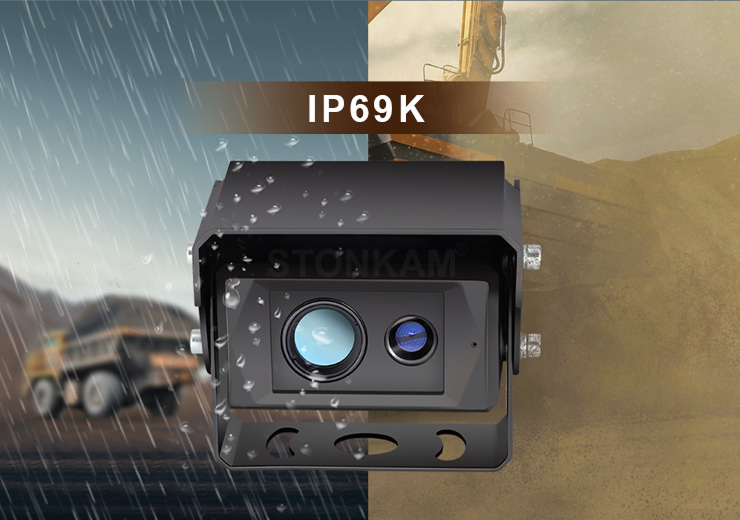

- IP69K waterproof rating for rain, dust, and high-pressure wash.
- Power range 12-32 V DC, suitable for most vehicle electrical systems.
- USB 2.0 interface for firmware upgrades.
- AHD video output (1.0Vp-p,75Ohm) for easy integration with monitors.
- Alarm output for immediate alerts when heat signatures are detected.
Demo Link: Demo of Stonkam TC639-T3 Vehicle Infrared Detection System with Dual Spectrum Camera
Specifications
| Built-in Visible Light Camera module |
|
| Resolution/Frame Rate |
HD 1920 x 1080 / 25 fps or 1920 x 1080/30fps |
| Infrared Camera Module |
|
| Resolution/Frame Rate |
640 x 512 (TC639-T6) |
| Video & Audio |
|
| Video Output |
AHD(1.0Vp-p,75Ohm) |
| Audio Output |
Alarm Output |
| Communication |
|
| Communication Interface |
USB 2.0 (for software upgrade) |
| Power |
|
| Power Supply |
DC 12~32V |
| Power Consumption (12V IN) |
385±20mA |
| Operating Environment |
|
| Operating Temperature |
-20 ~ +70°C |
| Storage Temperature |
-30 ~ +80°C |
| Protection |
|
| Waterproof Rating |
IP69K |
| Physical |
|
| Pixel Size |
94.5*64*66.5 |
| Cable Length |
Equipment out 0.5m (8pin connector) |
| Weight |
450g |
| Housing Color |
Black |
