You often need to send video from a camera that is far away or placed outdoors. A weak signal or water damage can make the feed freeze or disappear, which stops you from watching what matters. The WT473, 20 dBm IP69K Waterproof WiFi Transmitter solves this by giving a strong, rain-proof wireless link that keeps your video clear even in harsh weather.

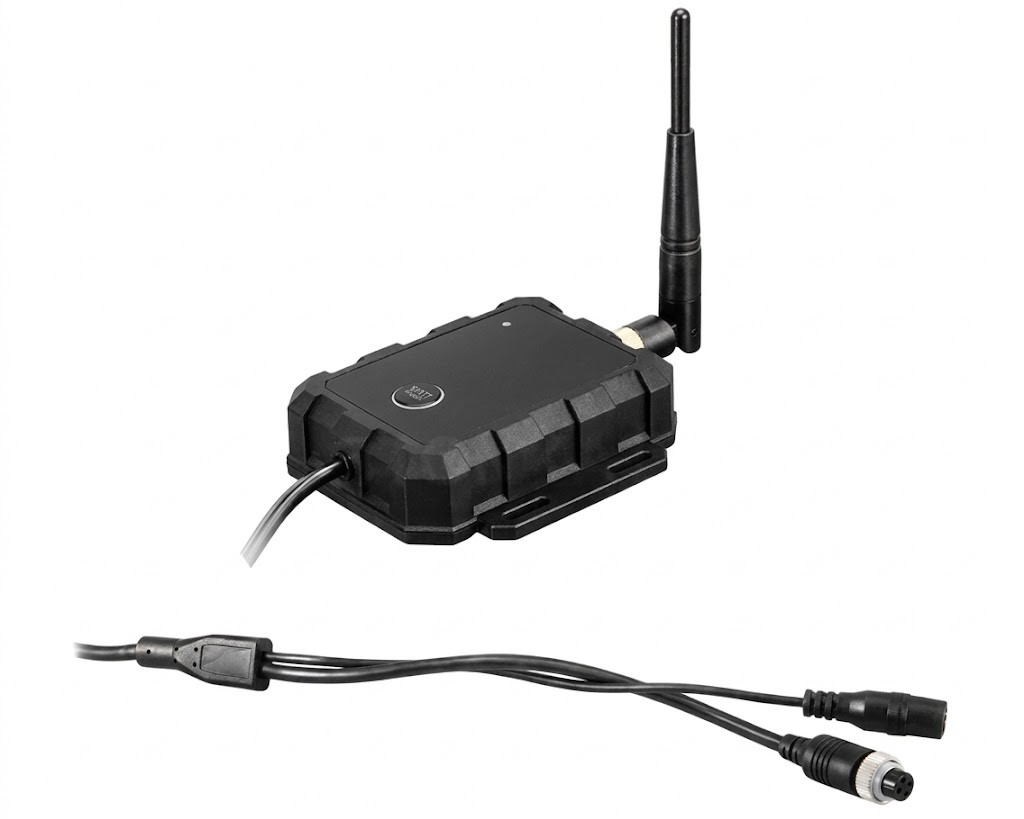

WT473 20 dBm IP69K Waterproof WiFi Transmitter
Imagine a tiny box that can turn any analog camera into a wireless source that works up to 60 meters without a cable. That is what this transmitter does. It takes CVBS, AHD, TVI or CVI video and sends it over a 2.4 GHz or 5 GHz WiFi channel. If your current setup drops the signal or cannot survive rain, you need this device to keep the feed alive.
Key Features
- Supports multiple types of camera signal input, up to 1080P@30f
- Supports mobile APP access to display the camera and upgrade the firmware
- Supports snapshot, recording and playback
- Transmitting distance: 60m (Barrier-free)
- Power supply: 12V (wide power supply input available)
- Waterproof rating: IP69K
Specifications
| Transmitting distance |
60m (barrier-free) |
| Mirror/Normal Image Switch |
Yes, client software to setup |
| Video Recorder |
Yes, client software to setup |
| Operating Mode |
AP mode |
| Display Resolution |
720P / D1 / CIF |
| Video Codec |
H.264 |
| Audio Format |
G.711A |
| Operating Temperature |
-20 ~ 70°C |
| Storage Temperature |
-40 ~ 80°C |
| Image Delay |
400ms |
| Transmission rate |
54Mbps |
| Video input signal |
CVBS / AHD / TVI / CVI |
| Transmission Output Power |
20 dBm |
| Sensitivity @PER |
-89 dBm |
| SSID name |
AP SSID default password is 88888888 |
| Current consumption |
12V/0.5A |
| Operating frequency |
2.4GHz-2.4835GHz / 5.12GHz-5.825GHz |
| Wireless standard |
IEEE 802.11b/g/n |
| Image frame rate |
2~30f/s |
| Operation system |
IOS / Android 2.2 above |
| Decompression form |
MPEG4 |
