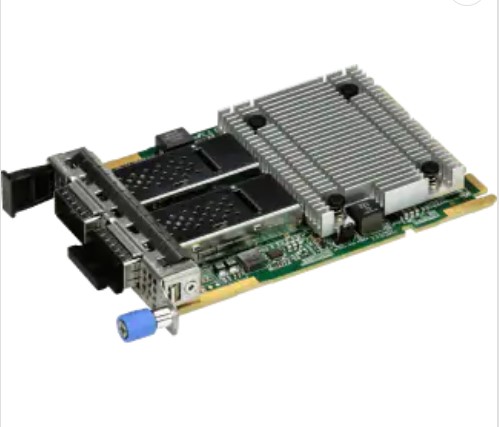

Advanced 200Gb Ethernet controller in Supermicro Advanced I/O Module (AIOM)- MTHO-506
Supermicro® Advanced I/O Modules (AIOM) are the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The AOC-A200G-B1CM is using the shared hardware design of AOC-A100G-b2CM by enabling the firmware setup to provide single port 200Gbps output in port1 while the port2 is disabled. Based on the Broadcom® BCM57508 with features such as VXLAN, NVGRE, RoCE, it provides unparalleled density, performance, and functionality. The Supermicro® AOC-A200G-B1CM is the most versatile 200GbE controller in the market and an excellent choice to enhance network connectivity in Data Centers and Enterprise environments.
Key Features
- Advanced I/O Module (AIOM) Form Factor
- Broadcom® BCM57508 200GbE controller
- Support for 200GbE, 100GbE, 50GbE and 40GbE Speed
- Single QSFP56 Connector
- RDMA over Converged Ethernet (RoCE)
- VXLAN, NVGRE and Geneve
- Broadcom® TruFlow™ flow processing engine
- Asset Management Features with thermal sensor
- NC-SI for Remote Management (not supported by default)
- RoHS compliant 6/6
Specifications:
| General |
|
| Form Factor |
Advanced I/O Module (AIOM) Form Factor |
| Controller |
Broadcom® BCM57508 200GbE controller |
| Connector |
Single QSFP56 Connector |
| Networking Features |
|
| Jumbo frames |
Up to 9.6 KB |
| IEEE 802.3x flow control |
Supported |
| IEEE 802.3ad Link Aggregation |
Supported |
| Virtual LANs |
802.1q VLAN tagging |
| Configurable Flow Acceleration |
Supported |
| UEFI and iSCSI boot |
Supported |
| Stateless Offload Features |
|
| Checksum Offloads |
TCP, UDP and IP checksum offloads |
| IPv4 and IPv6 Offloads |
Supported |
| Large Send Offload |
Supported |
| Receive Segment Coalescing |
Supported |
| TCP Segmentation Offload |
Supported |
| Large Receive Offload |
Supported |
| Receive Side Scaling (RSS) |
Supported |
| Transmit Side Scaling (TSS) |
Supported |
| Virtualization Features |
|
| Queue Technologies |
NetQueue, VMQueue, and Multiqueue |
| SR-IOV |
Up to 128 Virtual Functions (VFs) |
| Overlay Networking |
VXLAN, NVGRE, and Geneve |
| Edge Virtual Bridging (EVB) |
Supported |
| RDMA over Converged Ethernet (RoCE) |
|
| RoCE Support |
RoCEv1 and RoCEv2 |
| Data Center Bridging with RoCE |
Supported |
| Flow Processing |
|
| Flow Lookup |
Exact/Wildcard Match Flow Lookup |
| VLAN Operations |
VLAN insertion/deletion |
| Traffic Functions |
NAT/NAPT/Mirroring |
| Data Center Bridging |
|
| Priority-based flow control (PFC) |
IEEE 802.1Qbb |
| Enhanced transmission selection (ETS) |
IEEE 802.1Qau |
| Quantized Congestion Notification (QCN) |
IEEE 802.1Qau |
| Data Center Bridging Capability eXchange (DCBX) |
IEEE 802.1Qaz |
| Traffic Classes |
8 traffic classes per port; fully DCB compliant per 802.1Qbb |
| Power Savings |
|
| Power Management |
ACPI compliant power management |
| PCI Express ASPM |
PCI Express Active State Power Management (ASPM) |
| Ultra-low-power mode |
Supported |
| Energy Efficient Ethernet |
Pass-through Energy Efficient Ethernet (IEEE 802.3az-2010) |
| Power Consumption |
|
| Maximum Power Consumption |
20W |
| Storage Conditions |
|
| Storage temperature |
-40°C to 70°C (-40°F to 158°F) |
| Storage humidity |
90% non-condensing relative humidity at 35°C |
| Physical Dimensions |
|
| Card PCB dimensions |
76mm x 115mm (W x D) |
