Product Code: NSHO-188
MPN #: SYS-211E-FRN2T

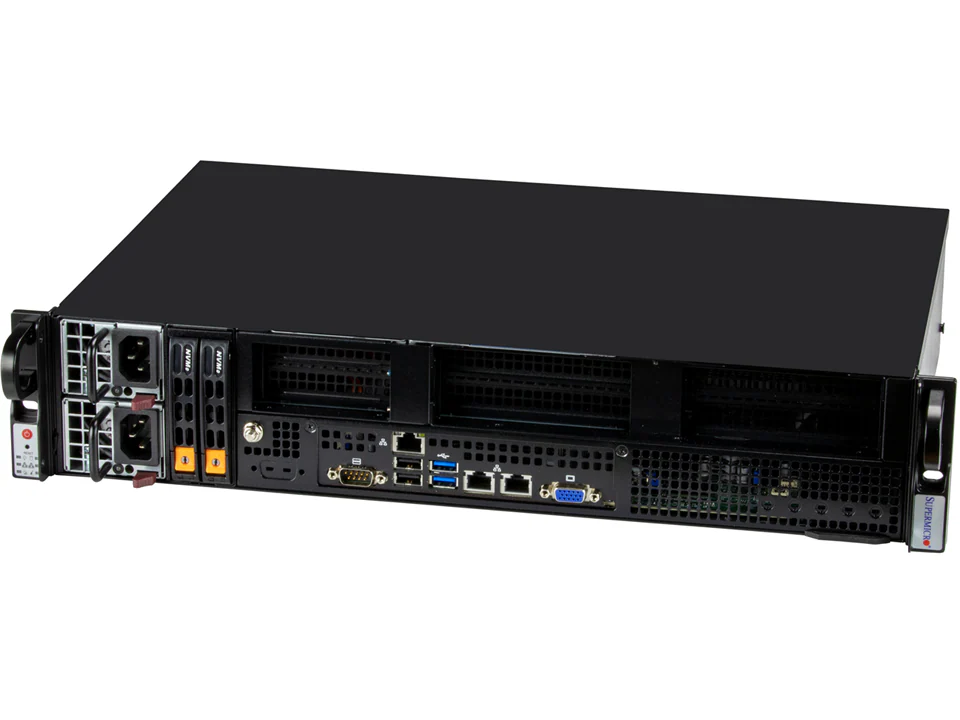

Are you tired of slow and inefficient servers that are holding back your business? Do you need a reliable and powerful solution to handle your growing workload? Look no further than the Supermicro SYS-211E-FRN2T, Intel Xeon Gold 6530, 2U Rackmount Server. This server is designed to provide high-performance computing and storage capabilities, making it an ideal solution for businesses that require fast and efficient data processing. With its advanced features and robust design, this server is perfect for companies that need to handle large amounts of data and require a reliable and scalable solution. Many buyers face the problem of slow servers that cannot handle their workload, but with the Supermicro server, you can say goodbye to those problems and hello to fast and efficient computing.
The Supermicro SYS-211E-FRN2T server solves the problem of slow and inefficient computing by providing a powerful and reliable solution. This problem matters to users because it can lead to lost productivity and revenue. The Supermicro server gives a clear solution by providing high-performance computing and storage capabilities, making it an ideal solution for businesses that require fast and efficient data processing. With its advanced features and robust design, this server is perfect for companies that need to handle large amounts of data and require a reliable and scalable solution.
| Processor | |
| CPU | Intel® Xeon® Gold 6530 Processor, 32-Core, 2.10GHz, 160MB Cache (270W) |
| CPU License | EMR/SPR OD-LIC Analytics Suite 4 (IAA.DSA), for XCC |
| Socket | Single Socket E (LGA-4677) |
| Memory | |
| Installed Memory | 8× 64GB DDR5 6400MHz ECC RDIMM Server Memory (2Rx4) |
| Memory Slots | 8 of 8 slots populated |
| Storage | |
| NVMe SSD | 7.6TB NVMe PCIe4 SSD 2.5" 1DWPD TLC D (SED, 7mm) |
| M.2 SSD | 480GB NVMe PCIe4 SSD M.2 1DWPD TLC D (80mm) |
| GPU | |
| GPU | NVIDIA® Ada L4 24GB GDDR6 PCIe 4.0 Graphics Card (70W) |
| Networking | |
| Network |
Supermicro 10GbE X710 (2x SFP+) Ethernet Network Adapter, Supermicro 25GbE E810-CAM1 (4x SFP28) Ethernet Network Adapter, Supermicro 25GbE E810 (2x SFP28) Ethernet Network Adapter |
| BMC LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| Power | |
| Power Supply Configuration | 2x 800W Redundant Platinum Level (94%) power supplies |
| Input | 750W: 100-127Vac / 50-60Hz; 800W: 200-240Vac / 50-60Hz; 800W: 230-240Vdc / 50-60Hz |
| Warranty & Service | |
| Hardware Warranty | 3 Years Parts and Labor + 1 Years of Cross Shipment |
| Software Included | Supermicro DataCenter Management Suite (DCMS) |
| Trusted Platform Module | |
| Module | SPI capable vertical TPM 2.0 |
| Platform | |

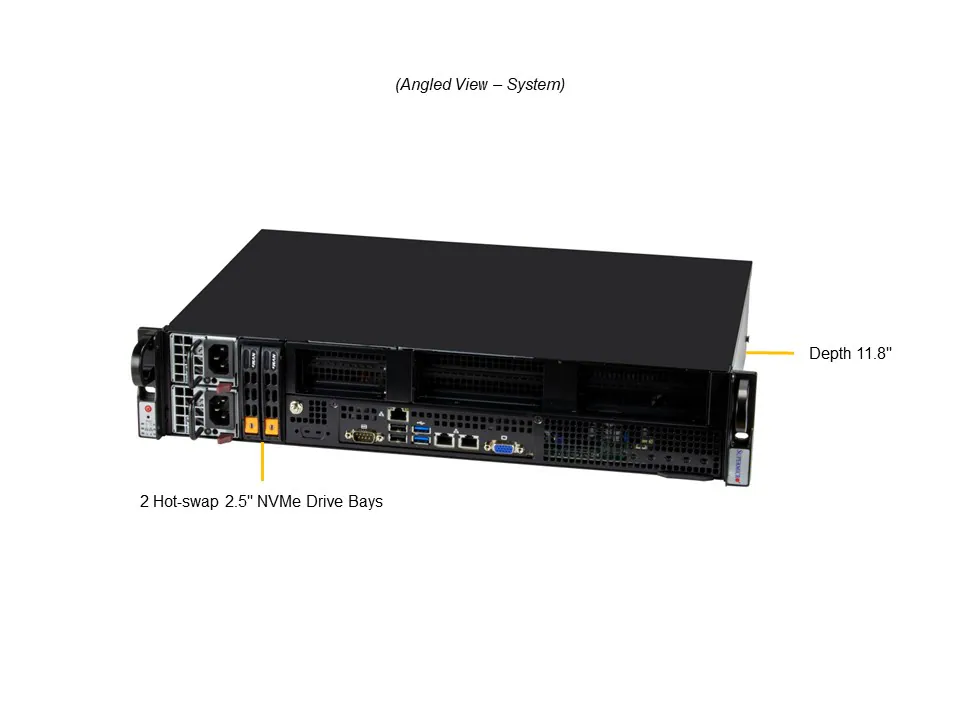

| Form factor | 2U Rackmount | 436.88 × 88.9 × 298.8 mm (W×H×D) |
| Weight | Gross Weight: 22 lbs (10 kg) | Net Weight: 17 lbs (7.7 kg) |
| Cooling | |

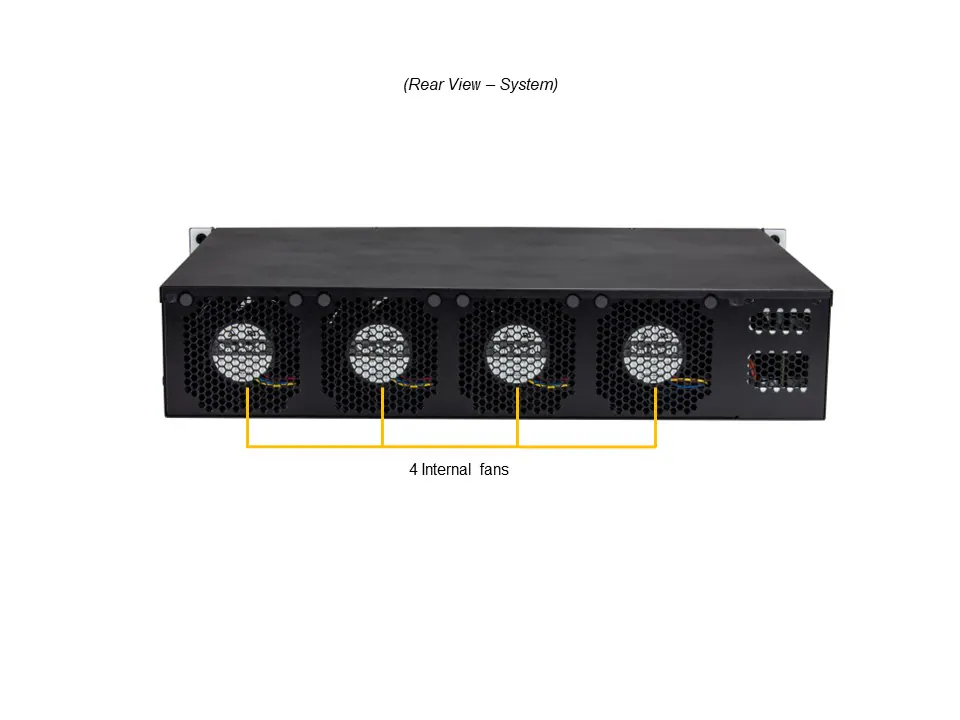

| Cooling | Up to 4x 4-PIN PWM 8cm Fan(s) | 1 Air Shroud |
| Heatsink |
Supports up to 350W TDP CPUs (Air Cooled)* | Air Cooled CPUs with TDP over 205W only |
| Expansion | |
| Expansion | 2 PCIe 5.0 x16 FHHL slots; 1 PCIe 5.0 x16 HHHL slot; 1 PCIe 5.0 x8 HHHL slot |
| BIOS | |
| BIOS | AMI 256MB SPI Flash |
| I/O | |

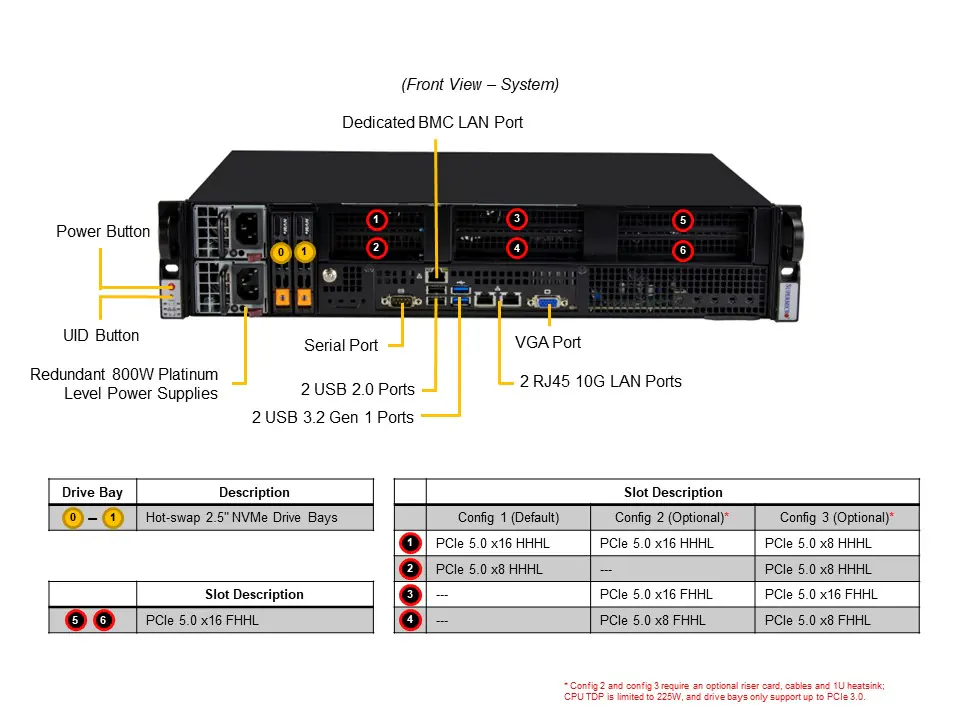

| I/O | 1 RJ45 1 GbE Dedicated BMC LAN port; 2 RJ45 10 GbE LAN ports (Intel® X550-AT2); 2 USB 2.0 ports (front); 2 USB 3.2 Gen1 ports (front); 1 VGA port; 1 port |
| Security | |
| Hardware Security | Trusted Platform Module (TPM) 2.0; Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Security Features |
Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| Management | |
| Power Management | ACPI Power Management; Power-on mode for DC power recovery |
| Software |
SuperCloud Composer® (SCC), Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Certifications | |
| Compliance | Oracle Linux 9.2, RHEL 8.8, RHEL 9.2, Windows Server 2022 |
| On-board | |
| Selected | 2x 10GbE RJ45 LAN Ports |
| Power Cord | |
| Selected | 2× Default Power Cord (Free of charge) |
