Product Code: NSHO-185
MPN #: SYS-521GE-TNRT

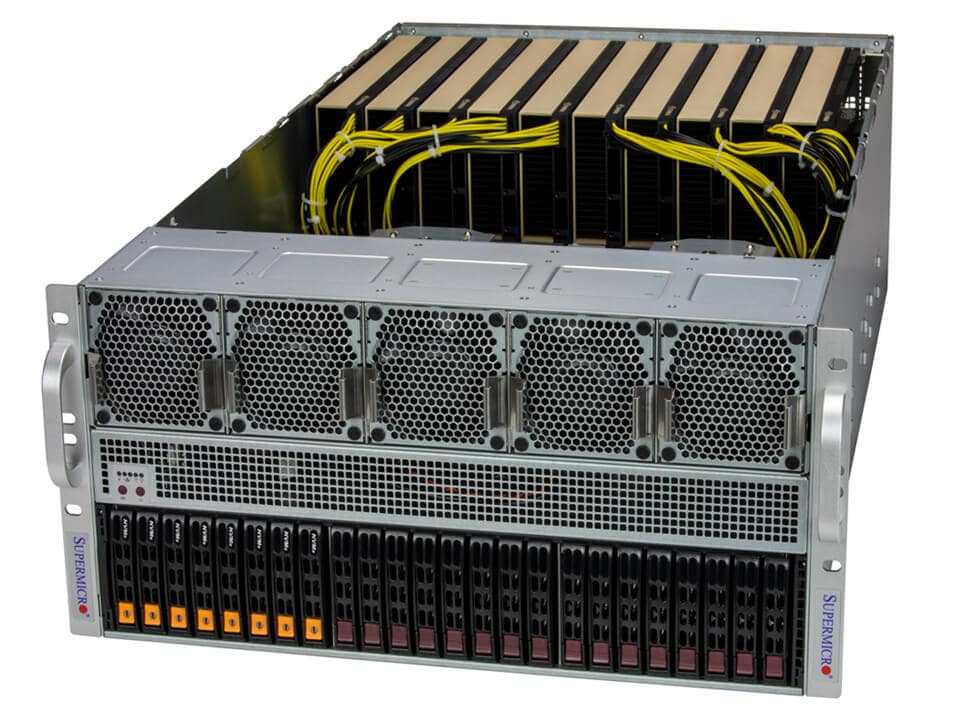

Are you tired of using slow and outdated servers that are holding back your business? Look no further than the Supermicro SYS-521GE-TNRT, Dual Socket E (LGA-4677), 5U Rackmount Server. This powerful server is designed to handle even the most demanding workloads, making it perfect for businesses that need a reliable and efficient solution. With its advanced features and cutting-edge technology, this server is the perfect choice for anyone looking to upgrade their current system. Many buyers face the problem of slow data processing and limited storage capacity, but with the Supermicro server, these problems are a thing of the past.
The Supermicro SYS-521GE-TNRT server solves the problem of slow data processing and limited storage capacity by providing a fast and efficient solution. This problem matters to users because it can greatly impact their business operations and productivity. The Supermicro server gives a clear solution by providing advanced features such as dual socket E processors, high-speed memory, and large storage capacity. With this server, users can process large amounts of data quickly and efficiently, making it perfect for businesses that require high-performance computing.
| Form Factor | |
| Form Factor | 5U Rackmount Enclosure |
| Dimensions | 438 x 222.5 x 786.1 mm (17.2" x 8.75" x 31") |
| Package Dimensions | 720 x 440 x 1080 mm (28.34" x 17.32" x 42.51") |
| Processor | |
| Processor | Dual Socket E (LGA-4677), 5th Gen Intel® Xeon®, 4th Gen Intel® Xeon® Scalable processors |
| Core Count | Up to 64C/128T, Up to 320MB Cache per CPU |
| GPU | |

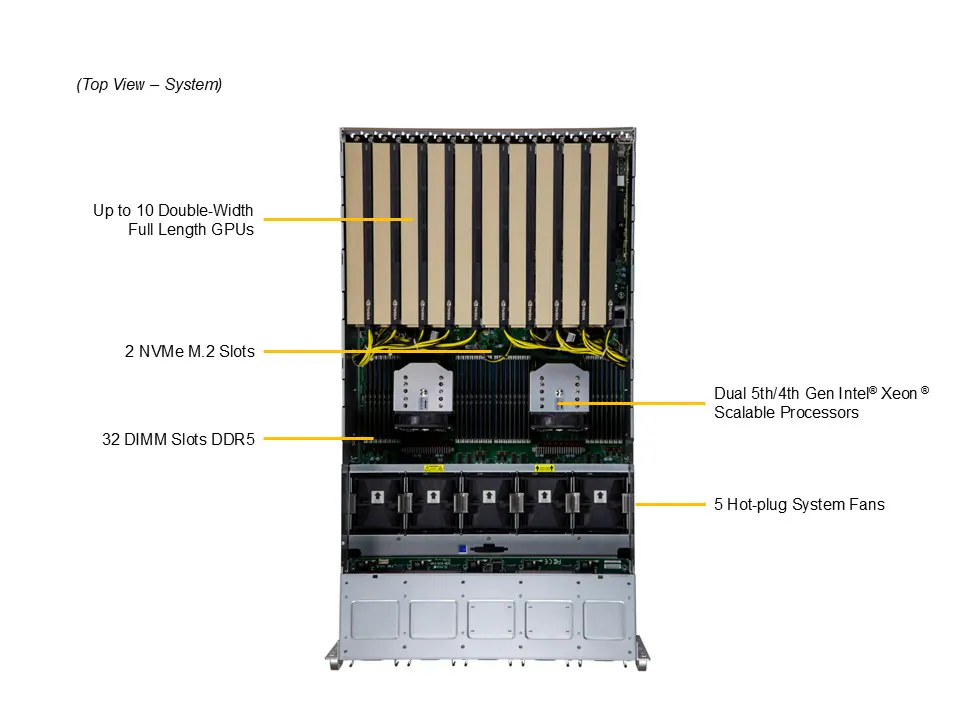

| Max GPU Count | Up to 2 quad-width or 2 triple-width or 8 double-width or 10 single-width GPUs |
| Supported GPU |
NVIDIA PCIe: H100 NVL, H200 NVL (141GB), L4, L40S, NVIDIA RTX PRO™ 4500 Blackwell Server Edition, NVIDIA RTX PRO™ 6000 Blackwell Server Edition, RTX 6000 Ada Generation |
| CPU-GPU Interconnect | PCIe 5.0 x16 Switch Dual-Root |
| GPU-GPU Interconnect | NVIDIA® NVLink™ Bridge (optional) |
| Memory | |
| Slot Count | 32 DIMM slots |
| Max Memory (1DPC) | Up to 4TB 5600MT/s ECC DDR5 RDIMM |
| Max Memory (2DPC) | Up to 8TB 4400MT/s ECC DDR5 RDIMM |
| Storage | |

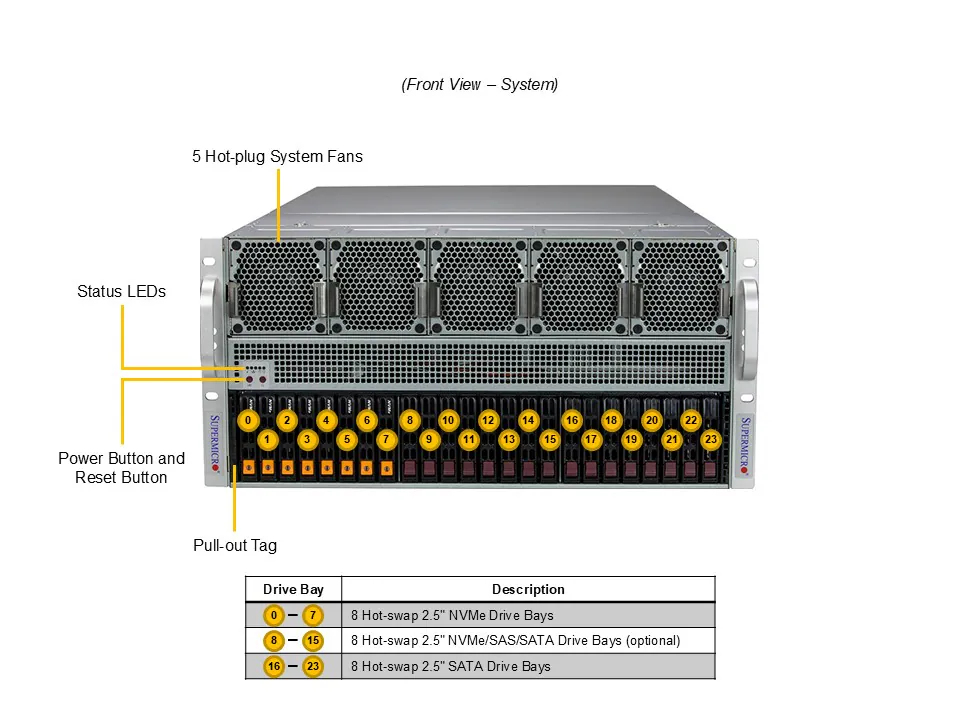

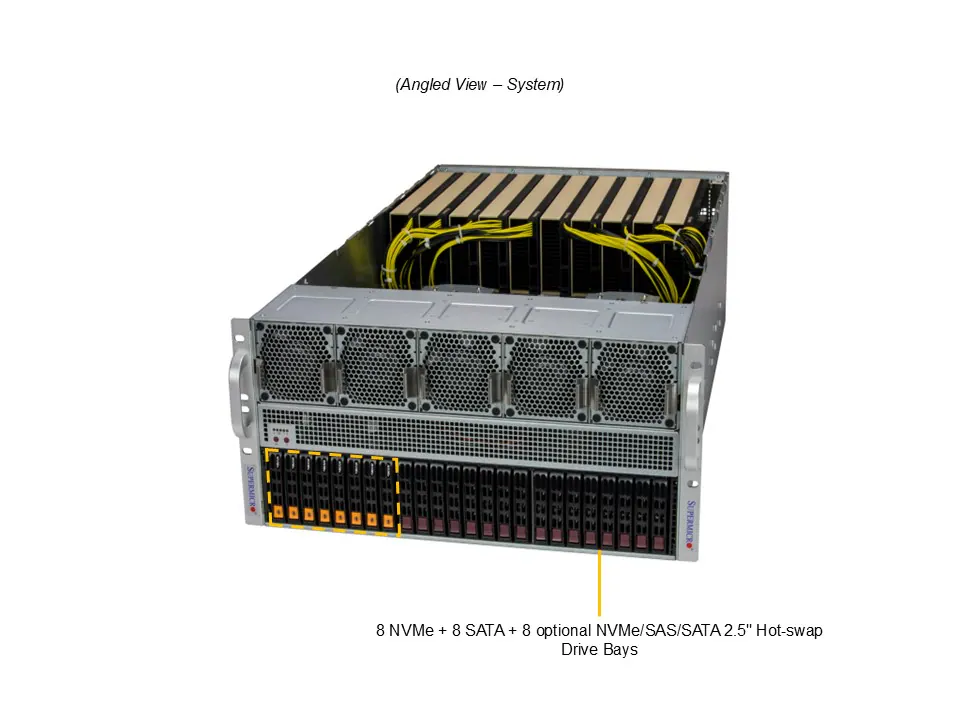

| Drive Bays Configuration | Default: Total 16 bays, 8 front hot-swap 2.5" NVMe drive bays, 8 front hot-swap 2.5" SATA drive bays |
| M.2 | 2 M.2 NVMe slots (M-key) |
| Expansion | |

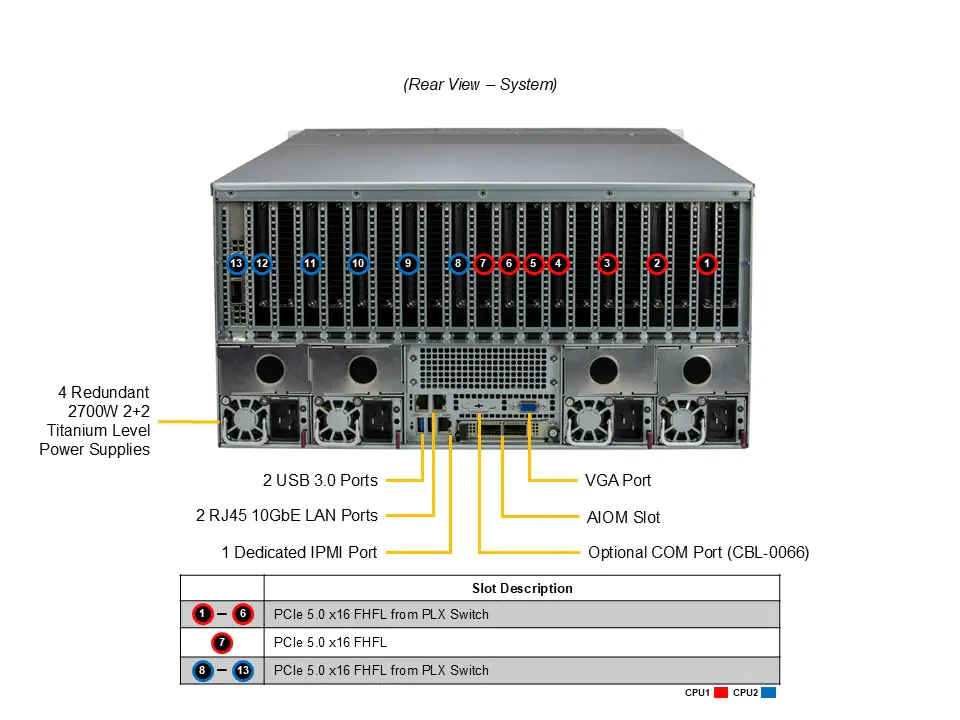

| Expansion Slots | Default, 13 PCIe 5.0 x16 FHFL slots |
| On-Board Devices | |
| Chipset | Intel® C741 |
| Network Connectivity | 2 RJ45 10GbE with Intel® X710-AT2 |
| Input / Output | |
| Video | 1 VGA port |
| Cooling | |
| Fans | Up to 10 heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) |
| Power | |
| Power Supply | 4x 2700W Redundant Titanium Level (96%) power supplies |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
| Management |
SuperCloud Composer® (SCC), Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| PC Health Monitoring | |
| CPU | 8+4 Phase-switching voltage regulator, Monitors for CPU Cores, Chipset Voltages, Memory |
| Fan | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Operating Environment | |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity | 8% to 90% (non-condensing) |
| Non-operating Relative Humidity | 5% to 95% (non-condensing) |
| Motherboard | |
| Motherboard | Super X13DEG-OA |
| Chassis | |
| Chassis | CSE-528GTS-R5K40P |
