Supermicro SYS-621C-TN12R 2U CloudDC Rackmount Server
Supermicro SYS-621C-TN12R 2U CloudDC Rackmount Server
Supermicro SYS-621C-TN12R 2U CloudDC Rackmount Server
Supermicro SYS-621C-TN12R 2U CloudDC Rackmount Server
Supermicro SYS-621C-TN12R 2U CloudDC Rackmount Server

Supermicro SYS-621C-TN12R 2U CloudDC Rackmount Server

UK Free Shipping UK Free Shipping over £249


Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Product Code: NSHO-174

MPN #: SYS-621C-TN12R

Are you tired of using outdated servers that slow down your business? Do you want to take your operations to the next level with a powerful and efficient server? Look no further than the Supermicro SYS-621C-TN12R 2U CloudDC Rackmount Server. This server is designed to provide high-performance computing and storage for a variety of applications, including cloud computing, data centers, and enterprise environments. With its advanced features and capabilities, this server is the perfect solution for businesses that need to process large amounts of data quickly and efficiently. Many businesses struggle with outdated servers that are unable to keep up with their growing demands, but with the Supermicro SYS-621C-TN12R 2U CloudDC Rackmount Server, you can say goodbye to those struggles and hello to a faster and more efficient operation.



Supermicro SYS-621C-TN12R 2U CloudDC Rackmount Server

The Supermicro SYS-621C-TN12R 2U CloudDC Rackmount Server solves the problem of outdated servers by providing a powerful and efficient solution for businesses. This problem matters to users because it can slow down their operations and reduce productivity. The Supermicro SYS-621C-TN12R 2U CloudDC Rackmount Server gives a clear solution by providing high-performance computing and storage, allowing businesses to process large amounts of data quickly and efficiently. With its advanced features and capabilities, this server is the perfect solution for businesses that need to take their operations to the next level.



Key Features
    • Dual Socket E (LGA-4677) 5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
    • Up to 64C/128T and up to 112.5MB Cache per CPU
    • Up to 2 double-width or 6 single-width GPUs
    • 16 DIMM slots, up to 4TB 5600MT/s ECC DDR5 RDIMM
    • 2 PCIe 5.0 x16 (in x16) FHHL slots and 4 PCIe 5.0 x8 (in x16) FHFL slots
    • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280, default, VROC required for RAID)
    • 12 front hot-swap 3.5" NVMe/SAS/SATA drive bays
    • 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
    • Up to 3x 8cm heavy duty fans with optimal fan speed control
    • 1 Air Shroud
    • Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) - NIST 800-193 Compliant



Specifications
Product
Product SKUs SYS-621C-TN12R
Motherboard Super X13DDW-A
Processor
CPU Dual Socket E (LGA-4677)5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count Up to 64C/128T; Up to 112.5MB Cache per CPU
GPU
Max GPU Count Up to 2 double-width or 6 single-width GPUs
Supported GPU

NVIDIA PCIe: H100, H100 NVL, A2, L4, L40, L40S, RTX A4000, RTX A4500, RTX A5000, RTX A6000

Intel PCIe: Intel Data Center GPU Flex 140, Intel Data Center GPU Flex 170

Certification Nvidia Certified
System Memory
Memory Slot Count: 16 DIMM slotsMax Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage 1.1V
On-Board Devices
SATA SATA (6Gbps); RAID 0/1/5/10 support
NVMe NVMe; RAID 0/1/5/10 support (VROC HW key required)
Network Connectivity Via AIOM

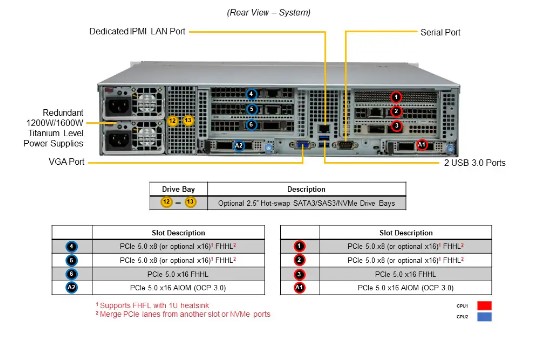

Input / Output
LAN 1 RJ45 1 GbE Dedicated BMC LAN port
USB 2 USB 3.2 Gen1 Type-A ports (rear)
Video 1 VGA port
Serial 1 COM port (rear)
TPM 1 TPM header
System BIOS
BIOS Type AMI 32MB SPI FLASH ROM
Management
Software

SuperCloud Composer® (SCC), Supermicro Server Manager (SSM), Supermicro Update Manager

 (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO),

Supermicro Thin-Agent Service (TAS)SuperServer Automation Assistant (SAA) New!

Power configurations ACPI/APM Power Management
Security
Hardware Trusted Platform Module (TPM) 2.0Silicon Root of Trust (RoT) – NIST 800-193 Compliant
PC Health Monitoring
CPU 8 Phase-switching voltage regulatorMonitors for CPU Cores, Chipset Voltages, Memory.
Fan

Fans with tachometer monitoringPulse Width Modulated (PWM) fan connectorsStatus

monitor for speed control

Temperature Monitoring for CPU and chassis environmentThermal Control for fan connectors
Certifications
Operating Systems

ESXi 7.0 U3, ESXi 8.0, ESXi 9.0, Hypervisor 8.2.1, Oracle Linux 8.10, Oracle Linux 9.0, RHEL 8.7,

RHEL 9.0, SAP HANA 2.0, SLES 12 SP5, SLES 15 SP4, Windows Server 2022, Windows Server 2025

Chassis
Form Factor 2U Rackmount
Model CSE-LA26TS-R1K23AWP1
Dimensions and Weight
Height 3.5" (89 mm)
Width 17.2" (437 mm)
Depth 25.5" (648 mm)
Package 11.4" (H) x 26.7" (W) x 34.5" (D)
Weight Gross Weight: 59 lbs (26.76 kg)Net Weight: 33 lbs (15 kg)
Available Color Black front & sliver body

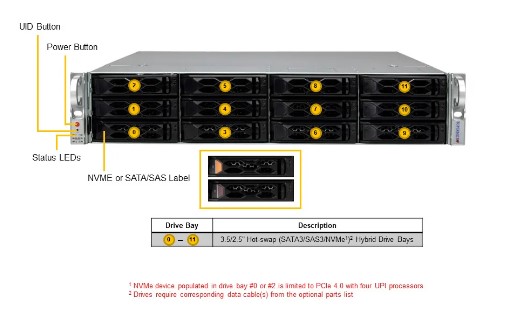

Front Panel
Buttons Power On/OffUniversal Information (UID)
LED Drive activityNetwork activityPower statusUniversal Information (UID)
Expansion Slots
PCI-Express (PCIe)

4 PCIe 5.0 x8 (in x16) FHFL slots2 PCIe 5.0 x16 (in x16) FHHL slots2 PCIe 5.0 x16 (in x16)

AIOM slots (OCP 3.0 compatible)

CXL Support Up to 2 CXL 1.1 x16/x8 Type 2/Type 3 devices
Drive Bays / Storage
Drive Bays Configuration Total 12 bays12 front hot-swap 3.5" NVMe*/SAS*/SATA* drive bays
M.2 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280(default); VROC required for RAID)
System Cooling
Fans Up to 3x 8cm heavy duty fans with optimal fan speed control
Air Shroud 1 Air Shroud
Power Supply
Power Supply 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL) 76 x 40 x 336 mm
Input

1000W: 100-127Vac1000W: 100-127Vac / 50-60Hz

1200W: 200-240Vac1200W: 200-240Vac / 50-60Hz

1200W: 200-240Vdc / 50-60Hz (for CCC only)

+12V

Max: 83A / Min: 0A (100Vac-127Vac)

Max: 100A / Min: 0A (200Vac-240Vac)

Max: 100A / Min: 0A (200Vdc-240Vdc)

5V SB Max: 4A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
RoHS RoHS Compliant
