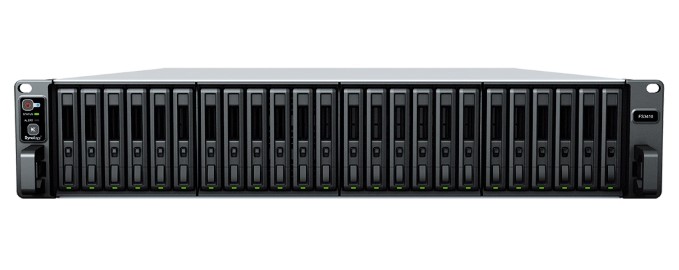

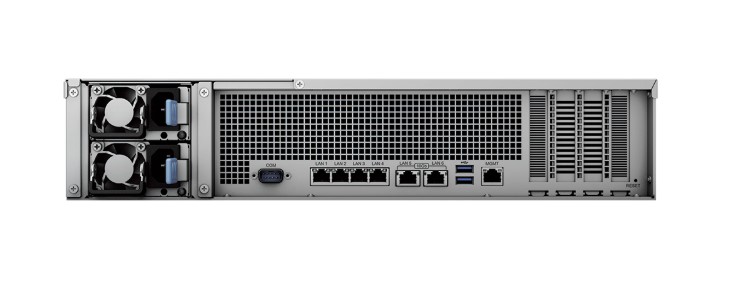

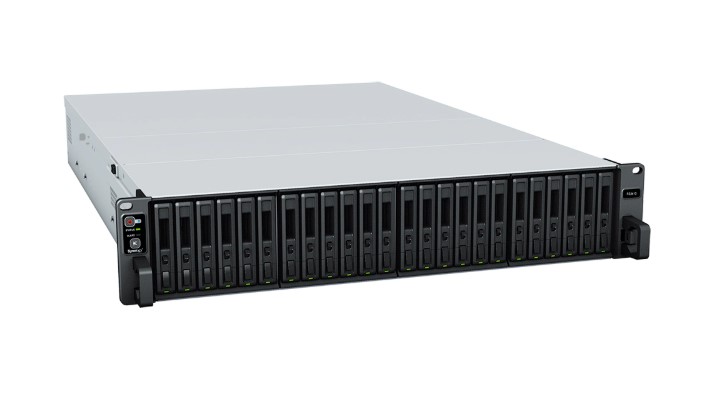

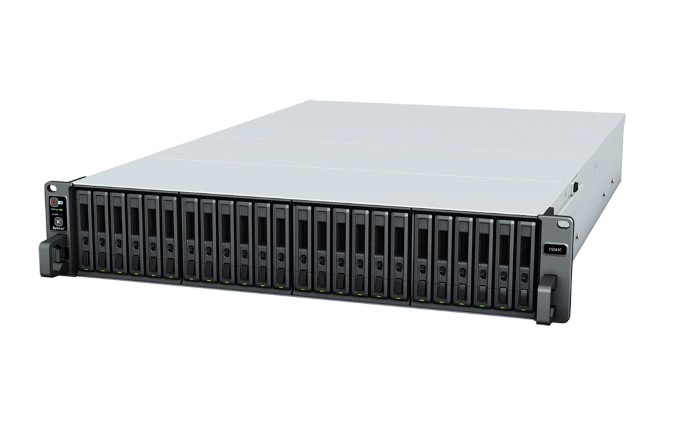

When high-speed storage needs to handle demanding workloads, Synology FlashStation FS3410 provides a 24-bay all-flash NAS platform built for performance-focused environments. It combines an Intel Xeon D-1541 8-core processor, 16 GB DDR4 ECC RDIMM memory, 24 × 3.84TB SSDs, and 10GbE networking to provide centralized, high-capacity storage in a compact 2U rackmount design.
Synology FlashStation FS3410 for High-Performance NAS Storage
Synology FlashStation FS3410 is designed for environments that need high-capacity SSD storage with fast network connectivity and dependable rackmount operation. Its 24 drive bays support 2.5" SATA SSDs, while the installed 24 × 3.84TB configuration provides 92.16TB of SSD storage. The system also includes PCIe expansion, redundant power support, and multiple network ports for flexible deployment.
Usages
Synology FlashStation FS3410 can be used for:
-
High-performance all-flash NAS storage
-
Centralized SSD-based business storage
-
Data-intensive workloads
-
Enterprise rackmount storage environments
-
High-speed network storage using 10GbE connectivity
-
Storage deployments requiring PCIe expansion
Benefits
The 24-bay design provides substantial SSD storage capacity in a 2U chassis, while the Intel Xeon D-1541 processor and 16 GB DDR4 ECC RDIMM memory support demanding storage operations. Its two 10GbE LAN ports provide high-speed connectivity, and four 1GbE ports add networking flexibility. Redundant power supply support helps maintain system availability, while PCIe expansion provides additional flexibility for future requirements.
Key Features
Intel Xeon D-1541 Processor: 8-core, 16-thread processor with 2.1 (base) / 2.7 (turbo) GHz frequency.
16 GB DDR4 ECC RDIMM: Includes 16 GB pre-installed memory with 4 total memory slots and support for up to 128 GB.
24 Drive Bays: Supports 24 × 2.5" SATA SSDs for high-density all-flash storage.
92.16TB Installed Storage: Includes 24 × 3.84TB SSDs using SAT5221-3840G drives.
10GbE Networking: Provides 2 RJ-45 10GbE LAN ports for high-speed network connectivity.
Multiple LAN Ports: Includes 4 RJ-45 1GbE LAN ports and 1 out-of-band management LAN port.
PCIe Expansion: Provides 2 × Gen3 x8 slots with x8 link for expansion.
2U Rackmount Design: Fits a 4-post 19" rack with Synology Rail Kit - RKS-02 support.
Redundant Power Supply: Includes a 550 watts power supply with redundant power support.
Wide Operating Range: Supports 0°C to 35°C (32°F to 95°F) operating temperature and 8% to 80% RH operating humidity.
Specifications:
| CPU |
CPU Model: Intel Xeon D-1541 |
| CPU Quantity |
1 |
| CPU Cores |
8 |
| CPU Threads |
16 |
| CPU Architecture |
64-bit |
| CPU Frequency |
2.1 (base) / 2.7 (turbo) GHz |
| Hardware Encryption Engine |
Yes |
| Memory |
System Memory: 16 GB DDR4 ECC RDIMM |
| Memory Module Pre-installed |
16 GB (16 GB × 1) |
| Total Memory Slots |
4 |
| Maximum Memory Capacity |
128 GB (32 GB × 4) |
| Storage |
|
| Drive Bays |
24 |
| Drive Type |
2.5" SATA SSD |
| Installed Storage |
92.16TB |
| Installed SSD Configuration |
24 × 3.84TB |
| SSD Model |
SAT5221-3840G |
| Hot Swappable Drive |
Yes |
| External Ports |
|
| RJ-45 1GbE LAN Port |
4 |
| RJ-45 10GbE LAN Port |
2 |
| Out-of-Band Management LAN Port |
1 |
| Max. Number of LAN Ports |
15 |
| USB 3.2 Gen 1 Port |
2 |
| PCIe |
|
| PCIe Expansion |
2 × Gen3 x8 slots (x8 link) |
| Appearance |
|
| Form Factor (RU) |
2U |
| Size (Height × Width × Depth) |
88 mm × 482 mm × 724 mm |
| Weight |
15.0 kg |
| Rack Installation Support |
4-post 19" rack (Synology Rail Kit - RKS-02) |
| Others |
|
| System Fan |
80 mm × 80 mm × 4 pcs |
| Fan Speed Mode |
Full-Speed ModeCool ModeQuiet Mode |
| Noise Level |
46.1 dB(A) |
| Power Supply Unit / Adapter |
550 watts |
| Redundant Power Supply |
Yes |
| AC Input Power Voltage |
100V to 240V AC |
| Power Frequency |
50/60 Hz, Single Phase |
| Power Consumption |
113.84 watts (Access) |
| British Thermal Unit |
388.70 BTU/hr (Access) |
| Temperature |
|
| Operating Temperature |
0°C to 35°C (32°F to 95°F) |
| Storage Temperature |
-20°C to 60°C (-5°F to 140°F) |
| Operating Humidity |
8% to 80% RH |
| Storage Humidity |
5% to 95% RH |
| Environment |
RoHS Compliant |
