Synology PAS7700, AMD EPYC 7443P, 64GB 48 Drive Bays 4U NAS

When storage capacity, fast access, and system availability all matter, a standard NAS can quickly become a limitation. Synology PAS7700 is a 4U NAS storage system with 48 drive bays, dual controllers, AMD EPYC 7443P processors, and 64 GB DDR4 ECC RDIMM per controller. It gives demanding storage environments the space, connectivity, and expansion options needed for large-scale data workloads.

Synology PAS7700 for High-Capacity Enterprise Storage

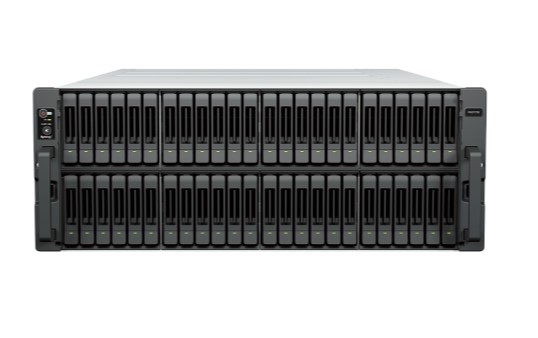

Managing large amounts of data becomes easier when your storage platform can support many drives without taking up excessive rack space. Synology PAS7700 provides 48 2.5” U.3 NVMe SSD drive bays in a 4U rackmount design. Its dual-controller configuration and high-speed network ports provide a practical foundation for demanding storage environments where performance and availability are important.

Usages

Synology PAS7700 can be used for high-capacity enterprise storage, data-intensive applications, centralized file storage, and environments that need fast NVMe-based storage. Its expansion support allows the system to grow to as many as 216 drive bays when connected with PAX224 expansion units.

• Enterprise NAS storage

• Large-scale data storage

• High-speed NVMe storage environments

• Rack-based storage deployments

• Storage systems requiring additional expansion capacity

Benefits

The 48-drive configuration gives you substantial storage capacity in a single 4U system, while support for 2.5” U.3 NVMe SSDs provides fast storage access. Dual controllers help support a more robust storage architecture, and each controller includes 10GbE connectivity for high-speed network access. The available PCIe Gen4 slots provide room for further connectivity upgrades. A 2700W power supply with redundant power support helps maintain dependable operation, while the 5-year warranty provides longer-term product coverage.

Key Features

• 48 Drive Bays: Provides 48 bays for 2.5” U.3 NVMe SSD storage.

• Dual Controllers: Includes 2 controller modules for the storage system.

• AMD EPYC 7443P: Uses a 24-core AMD EPYC 7443P processor with 2.85 (base) / 4.0 (turbo) GHz per controller.

• 64 GB DDR4 ECC RDIMM: Provides 64 GB DDR4 ECC RDIMM per controller.

• High-Speed Networking: Includes 2 x RJ-45 10GbE LAN ports per controller.

• PCIe Gen4 Expansion: Provides 1 x Gen4 x16 slot and 2 x Gen4 x8 slots per controller.

• 216 Drive Expansion: Supports up to 216 drive bays with PAX224 x 7 expansion units.

• 4U Rackmount: Measures 175.8 mm x 480.5 mm x 771 mm and weighs 38.2 kg.

• 2700W Power Supply: Uses a 2700W power supply with 200V to 240V AC input.

• 5-Year Warranty: Includes a 5-year warranty for long-term storage deployment support.

Specifications:
