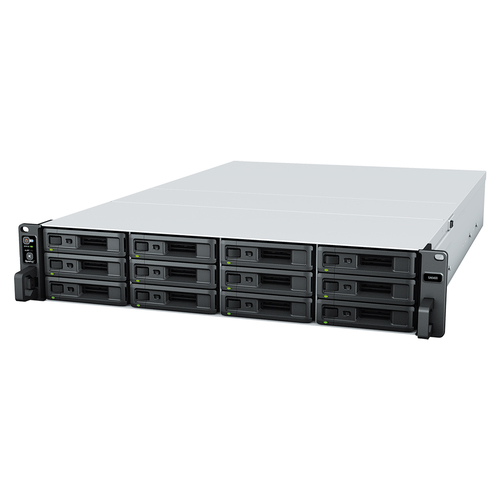

Synology SA SA6400, AMD EPYC 7272, 32GB 12-bay 2U Rackmount NAS

When 12 drive bays are not enough for growing business data, you need a storage system that can scale without replacing the whole platform. Synology SA SA6400 is a 2U rackmount NAS with an AMD EPYC 7272 processor, 32 GB DDR4 ECC RDIMM memory, and support for 12 HDD or SSD drives. It provides high-capacity storage, flexible RAID options, and fast 10GbE networking for demanding business environments.

Synology SA SA6400 for Scalable Business Storage

Large storage environments need more than drive capacity. They also need flexible RAID options, fast network access, expansion support, and reliable system management. Synology SA SA6400 combines 12 drive bays with support for 2.5 and 3.5" HDD and SSD storage, online RAID expansion, online RAID migration, and up to 8000 concurrent connections. Its 2U rackmount design also fits efficiently into a standard server rack.

Usages

Synology SA SA6400 can be used for centralized business storage, file sharing, backup, virtualization storage, and large enterprise NAS deployments. Its support for multiple storage protocols and RAID levels makes it suitable for different storage requirements.

• Enterprise NAS storage

• Centralized file and data storage

• Business backup environments

• High-capacity HDD and SSD storage

• iSCSI storage deployments

• Rackmount storage environments

Benefits

The 12 drive bays give you room to build a high-capacity storage system using HDD or SSD drives. Online RAID expansion and migration help you adjust storage without taking the system offline for these operations. The AMD EPYC processor and 32 GB DDR4 ECC RDIMM memory provide a strong hardware platform for demanding workloads. With 10GbE networking, 8000 concurrent connections, and support for iSCSI, the system can handle high-demand business storage requirements. Redundant power supply support also provides an additional option for maintaining power availability.

Key Features

• AMD EPYC 7272 Processor: Uses a 12-core AMD EPYC processor with 2.9 GHz frequency and 3.2 GHz boost frequency.

• 32 GB DDR4 ECC RDIMM: Includes 32 GB internal DDR4 memory with ECC and RDIMM form factor.

• 12 Drive Bays: Supports up to 12 storage drives using 2.5 and 3.5" HDD or SSD drives.

• Flexible RAID: Supports RAID 0, 1, 5, 6, 10, F1, and JBOD.

• 10GbE Networking: Supports Ethernet LAN data rates up to 10000 Mbit/s.

• High Connection Capacity: Supports up to 8000 concurrent connections.

• PCIe Expansion: Provides 2 PCI Express x8 (Gen 3.x) slots.

• Redundant Power Support: Includes redundant power supply support with a 550 W PSU.

• 2U Rackmount Design: Measures 88 mm x 482 mm x 724 mm and weighs 16.5 kg.

• DiskStation Manager: Runs DiskStation Manager with support for Linux and Windows operating systems.

Specifications:
