| Processor Module |
|
| SoM |
NVIDIA® Jetson AGX Orin 64GB, 2048-core Ampere GPU with 64 Tensor Cores |
| CPU |
12-core NVIDIA Arm® Cortex® A78AE CPU, with 275 TOPS |
| Memory / Storage |
|
| Memory |
256-bit LPDDR5 (102.4 GB/s) RAM soldered on module, 64GB |
| Internal eMMC |
64GB eMMC 5.1 |
| Industrial NVMe SSD |
M.2 2280, 256GB to 2TB available, 2TB |
| microSD Card Socket |
1 × |
| Features |
|
| Real Time Clock (RTC) |
Real time clock (RTC) with supercapacitor backup (charge holds for ~24h without power) |
| Inertial Measurement Unit |
STMicroelectronics ISM330DHCX |

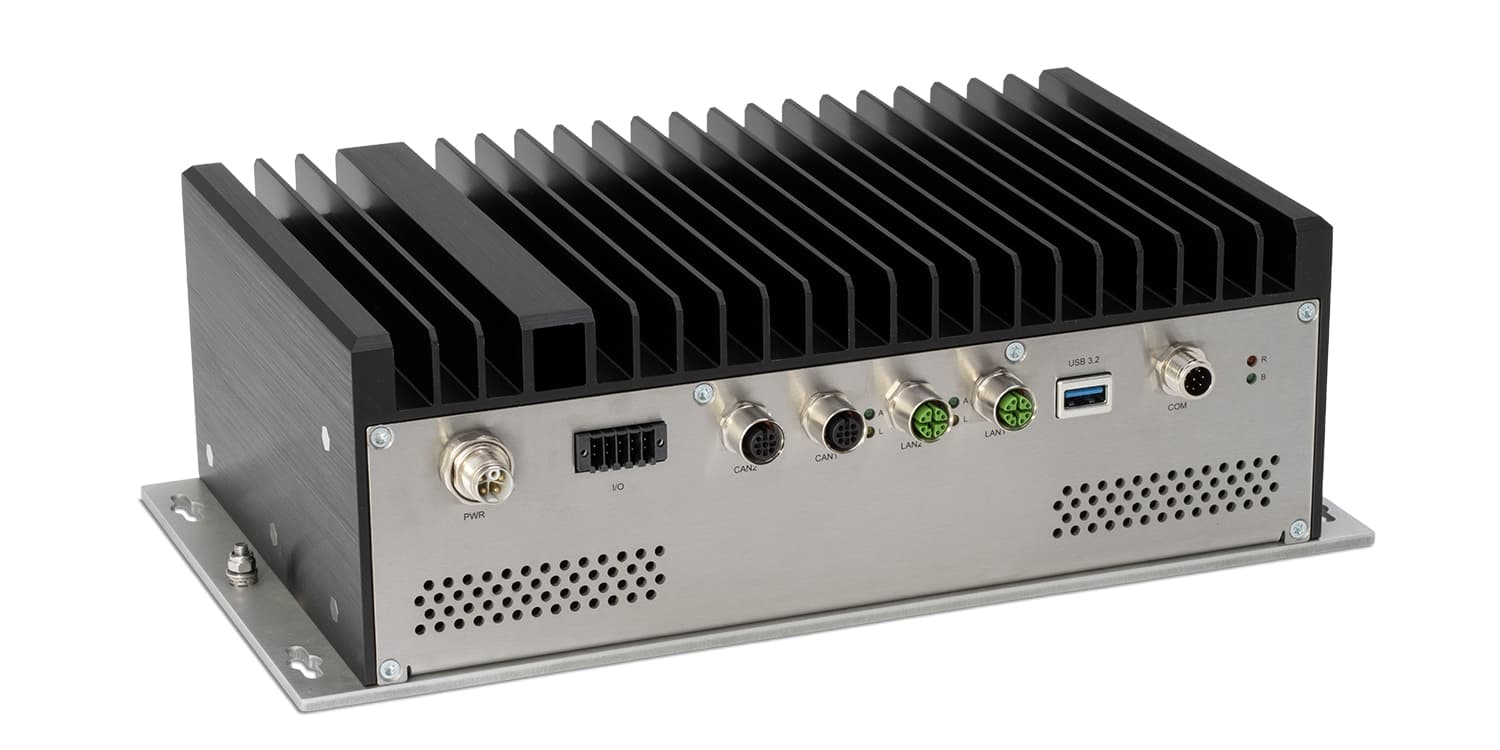

| Communication Interfaces |
|
| DisplayPort |
1 × DisplayPort 1.4a @ 8K60 (behind service cover) |
| Internal USB |
1 × USB 2.0 (Micro USB Type AB) behind the service cover (used for device flashing and SSH access only) |
| USB 2.0 |
2 × USB 2.0 (Type A) behind the service cover (rear) |
| USB 3.2 Gen1 |
1 × USB 3.2 (5 Gbit/s) Type-A with dust cap |
| 10GbE Ethernet |
1 × 10GBASE-T (10/100/1000/10000 BASE-T), M12 female X-coded |
| Gigabit Ethernet |
1 × 1GbE (10/100/1000 BASE-T), M12 female X-coded |
| GMSL2 Camera Inputs |
8 × GMSL2 camera inputs with Power over Coax (PoC), 12VDC (Fakra Z) |
| Power over Ethernet |
4 × 1GbE PoE+ (IEEE 802.3at), M12 female X-coded,
Power sourcing equipment (PSE), total maximal power: 30W
|
| CAN Bus |
2 × CAN 2.0A / CAN 2.0B (set to active by default, passive mode possible),
CAN FD supported, isolated (M12 female A-coded)
|
| Digital I/O |
4 Inputs / 4 Outputs, isolated, current sinking inputs / current sourcing outputs (high side switch),
M12 terminal block
|
| Serial RS-232 |
1 × RS-232 (M12 male A-coded) |
| 4× Single Pair Ethernet |
On request (M8 male) |
| TSN |
TSN support (LAN7431 / TI PHY + Microchip LAN8871) (SPE connector: acc. IEC 63171-5), instead of PoE |
| Analog Inputs |
Up to 4 inputs (on request) |
| Serial RS-422/485 |
Isolated (on request) |

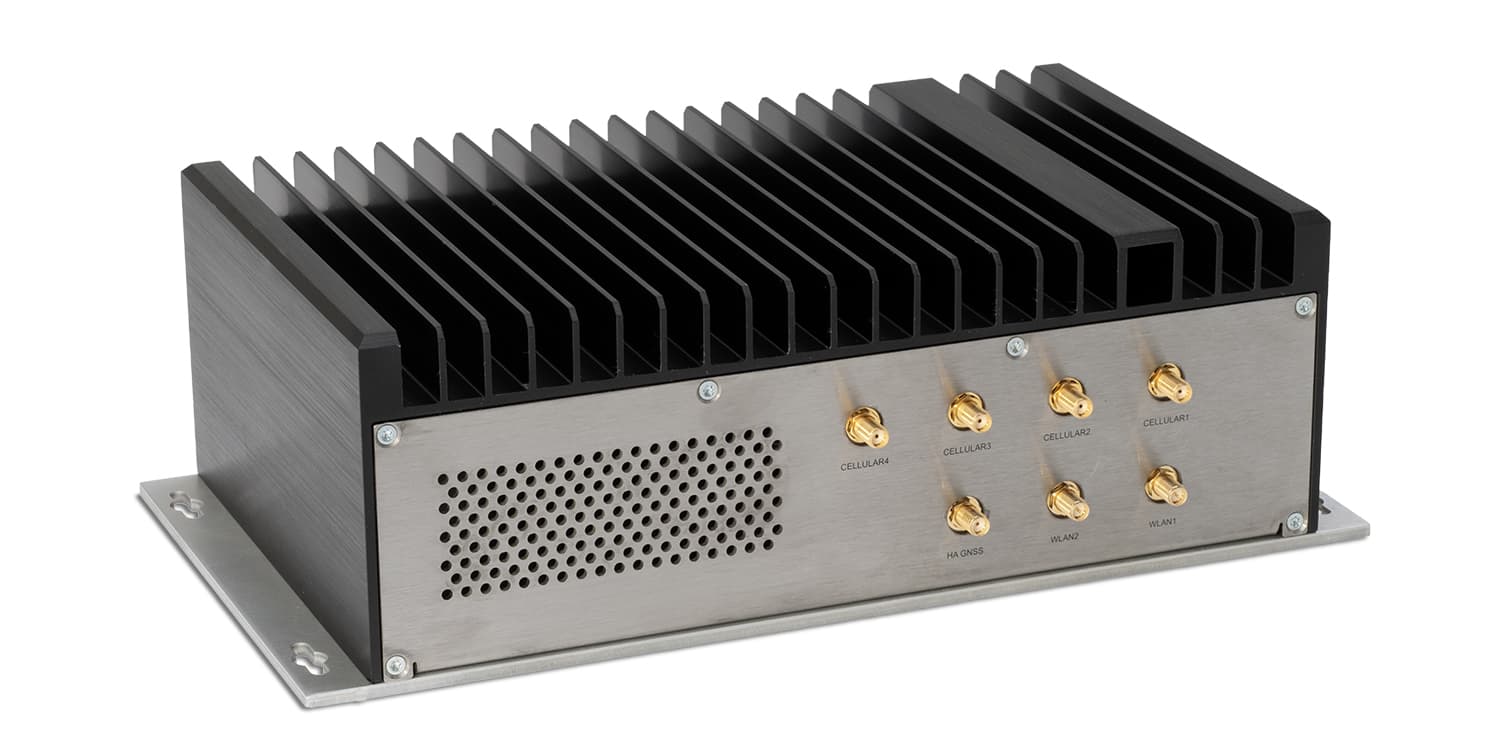

| Wireless Connectivity |
|
| Cellular 5G |
5G module (4G fallback) with onboard GNSS, Quectel RM520N-GL,
dual nano SIM support – M2M only! (4 × SMA)
|
| Wireless LAN |
Wi-Fi 6E (802.11ac/ax/b/g/n) Intel®, Bluetooth® 5.2 Module Intel® Wireless AX210 (2 × RP-SMA) |
| High Precision GNSS |
High precision GNSS module with RTK and dead reckoning (ADR), u-blox ZED-F9R (1 × SMA) |
| Cellular 4G LTE |
Telit FN980 (Global/Black), Sierra Wireless EM7565, dual nano SIM support – M2M only! (on request) |
| Technical Data |
|
| Exterior Dimensions |
314 × 94 × 170 mm (housing incl. mounting plate) |
| Net Weight |
~4500 g |
| Input Voltage |
Isolated input voltage, with RP protection (M12 male K-coded), 16.8…137.5 VDC |
| Voltage Interruption |
EN50155 Class S2, 10 ms |
| Power Consumption |
Approx. 25–60 W @ 24V without peripherals |
| Environmental Conditions |
|
| Operating Temperature |
–40°C to +70°C (Cold start at max. –25°C) |
| Storage Temperature |
–40°C to +80°C (Recommended storage temperature 20°C…25°C) |
| Ingress Protection |
IP20 (according to EN60529) |
| Conformal Coating |
PCX |
| Railway Shock |
EN61373 |
| Railway Vibration |
EN61373 |
| Railway EMC |
EN50121-3-2 / IEC 62236-3-2 |
| Railway Fire Protection |
EN45545-2, HL3 |
| Safety |
Designed to meet EN62368-1 |
| Radio & Telecommunication |
Designed to meet RED |
| UNECE R10 (E-Mark) |
On request |
| MTBF @ 25°C |
~220,000 h (according to Telcordia SR-332, Environment GB, excluding SSD) |
| Certifications |
|
| Compliance |
UKCA / CE |
| Software |
|
| Operating System |
NVIDIA JetPack SDK – Jetson Linux (Ubuntu based) |
