Are you tired of using computers that are not designed for vehicles? Do you need a reliable and powerful computer that can handle the demands of being on the road? Look no further than the Syslogic VSL 82, 16GB/32GB Intel Atom x6425RE IP40 Vehicle Computer. This computer is specifically designed for use in vehicles and is built to withstand the rigors of the road. With its powerful Intel Atom processor and ample storage, this computer is perfect for a variety of applications, from fleet management to public transportation. The Syslogic VSL 82 is the solution to the problem of finding a reliable and powerful computer that can handle the demands of being on the road.

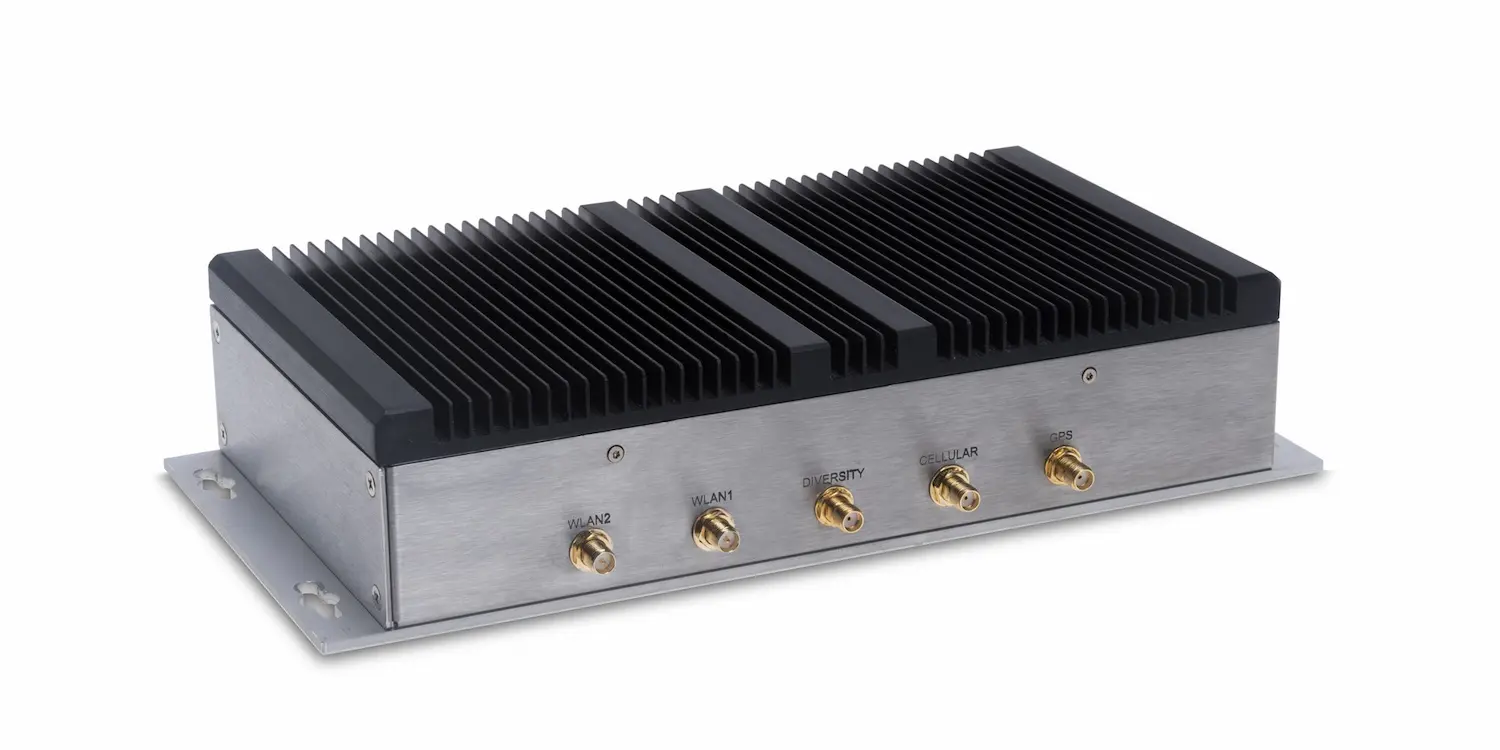

Syslogic VSL 82, 16GB/32GB Intel Atom x6425RE IP40 Vehicle Computer
The Syslogic VSL 82 solves the problem of finding a computer that can handle the demands of being on the road. This problem matters to users because it can cause downtime and loss of productivity. The Syslogic VSL 82 gives a clear solution by providing a reliable and powerful computer that is specifically designed for use in vehicles. With its rugged design and powerful processor, this computer can handle the demands of being on the road and provide users with the reliability and performance they need.
Key Features
- Intel Atom x6425RE processor, with 1.9GHz clock speed and quad-core performance
- 16GB RAM and 32GB eMMC storage, for ample memory and storage
- IP40 rating, for resistance to dust and water
- Compact design, with dimensions of 257 x 54 x 127 mm
- Low power consumption, with typical power consumption of 17W
- Wide operating temperature range, from -40C to 70C
- Support for Linux Debian 10.0 and Windows 10 IoT Enterprise LTSC operating systems
- Variety of interfaces, including DisplayPort, USB, Ethernet, and CAN Bus
- Wireless connectivity options, including Wi-Fi 6 and 4G LTE
- GNSS module, for precise location and navigation
Specifications
| Processor / Performance |
|
| Processor |
Intel® Atom™ x6425RE – Quad core, 1.9GHz clock |
| Memory |
16GB RAM |
| L2 Cache |
1.5MB |
| Memory / Storage |
|
| System Memory |
4267MT/s LPDDR4x RAM soldered on board, 16GB |
| Internal Storage |
32GB eMMC |
| CFast Socket |
1 × CFast socket with latching retainer |
| MicroSD Card Socket |
1 × MicroSD card socket |
| Communication Interfaces |
|
| DisplayPort |
1 × DisplayPort 1.4 (4096 × 2160 @ 60Hz) |
| USB |
2 × USB 3.2 (5Gbps) Type-A |
| Ethernet |
2 × 10/100/1000 BASE-T (1 × Intel® GbE, 1 × Intel® I210-IT), M12 female X-coded |
| CAN Bus |
2 × CAN 2.0A/B & CAN FD (PEAK FPGA chip, SJA1000 compatible), active/passive, isolated (DSUB9) |
| Mini PCIe |
1 × Mini PCIe socket |
| Wireless Connectivity |
|
| 4G LTE |
Sierra Wireless EM7590, LTE Cat-13 (3G fallback), M2M only! (2 × SMA) |
| SIM Slots |
Dual nano SIM slot for cellular modules for 4G module |
| GNSS Module |
u-blox NEO-M9V Module (1 × SMA) |
| High Precision GNSS |
u-blox ZED-F9P/R with IMU and RTK (1 × SMA), on request |
| Wireless LAN |
Wi-Fi 6 (802.11ac/a/b/g/n/ax), Intel®, Bluetooth® 5.2 Module Intel® Wireless-AX210 (2 × RP-SMA) |
| Technical Data |
|
| Exterior Dimensions |
257 × 54 × 127 mm (housing incl. mounting plate) |
| Net Weight |
~2400 g |
| Input Voltage |
8.4 ... 45VDC, 110 VDC wide input voltage (isolated and reverse polarity protected), M12 4P male A-coded |
| Power Consumption |
Typical ~17W @ 24V without Add-Ins, idle |
| Environmental Conditions |
|
| Operating Temperature |
–40°C ... +70°C |
| Storage Temperature |
–40°C ... +85°C (Recommended storage temperature 20°C ... 25°C) |
| Ingress Protection |
IP40 according to EN60529 |
| Conformal Coating |
On request |
| MTBF @ 25°C |
255,710 hours according to Telcordia SR-332, Environment GB, excluding CFast and optional interfaces |
| Certifications |
|
| Shock |
EN60068-2-27 / EN61373 |
| Vibration |
EN60068-2-64 / EN61373 |
| EMI Conformity |
EN50121-3-2 / EN301489-1 |
| Safety |
According to EN62368-1 |
| Software |
|
| Operating Systems |
Linux Debian 10.0, BSP Windows 10 IoT Enterprise LTSC |
