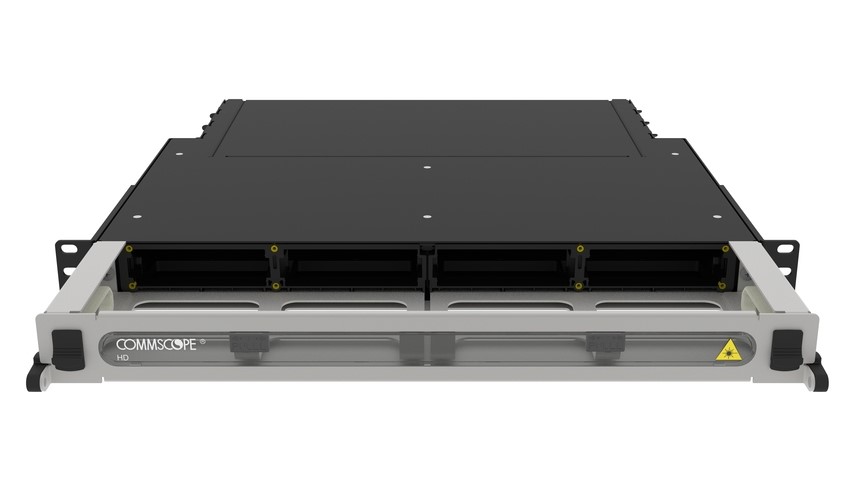

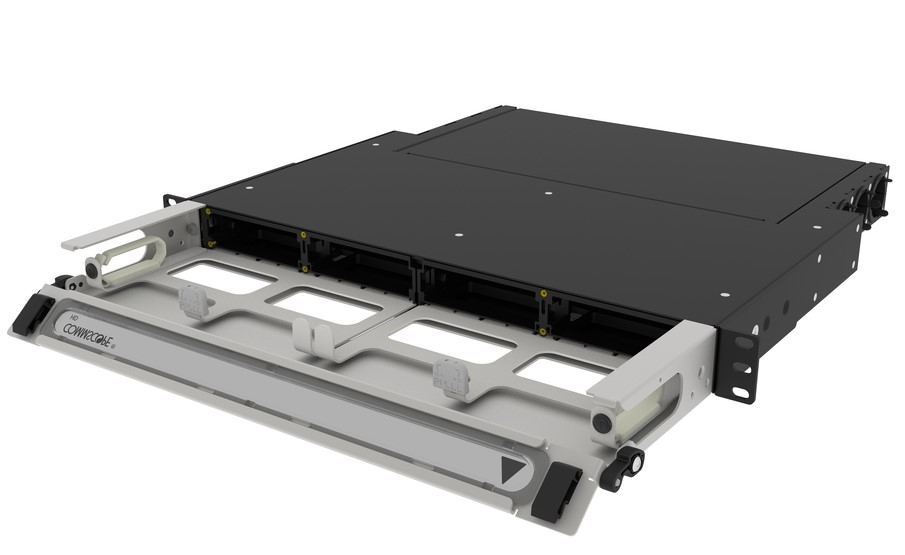

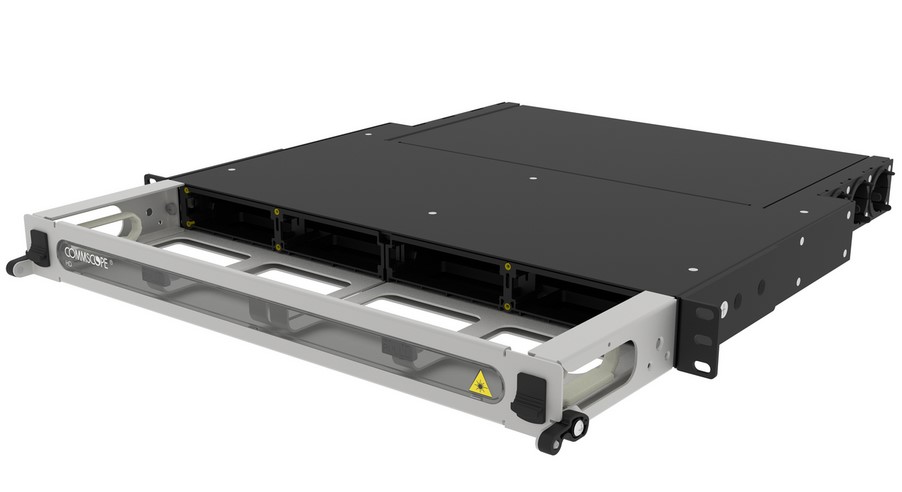

SYSTIMAX 760209940 HD-1U 1U Modular Cassette Sliding Panel

Tired of cramped rack space and hard-to-reach fiber connections? The SYSTIMAX 760209940 HD-1U 1U Modular Cassette Sliding Panel gives you a tidy, easy-access solution for high-density fiber patching. It fits a standard 19-inch rack, slides open for quick changes, and lets you mount four G2 modular cassettes without fuss. If you need reliable, organized fiber management, this panel is the tool you have been looking for.

SYSTIMAX 760209940 HD-1U 1U Modular Cassette Sliding Panel

Network rooms often suffer from tangled cables and limited access to patch modules. When you cannot reach a port quickly, downtime rises and maintenance costs grow. This sliding panel solves the problem by providing a clean, slide-out front that reveals the cassettes instantly. You keep the rack neat, protect the fibers, and reduce the time spent on every change. The result is a smoother workflow and fewer service interruptions.

Benefits

• Fast access - slide the panel and reach all four cassettes without removing the rack unit.
• Space saving - only 1U high, perfect for crowded racks.
• Improved safety - steel construction meets UL 94 V-0 fire rating.
• iPatch-ready - integrates with smart patch management tools.
• Professional look - black and silver gray finish matches modern data centers.

Usages

Use this panel in any 19-inch rack that needs fiber patching. It works well in telecom closets, enterprise data centers, and carrier hotels where you must swap cassettes quickly. It is also ideal for test labs that require frequent re-configuration of fiber paths. Because it accepts four G2 modular cassettes, you can support high-capacity links in a compact footprint.

Key Features

• 1U height, 44.45 mm (1.75 in) tall.
• Standard 19-in EIA rack width (482.6 mm).
• Depth 541.78 mm (21.33 in) for stable mounting.
• Sliding shelf movement for easy access.
• Accepts four G2 modular cassettes.
• Steel body for durability.
• UL 94 V-0 flammability rating.
• UL 1863 safety standard compliance.
• iPatch-ready intelligence for automated management.
• Front interface unloaded for flexible configuration.
• Weight 5.625 kg (12.4 lb) for secure installation.
• Global availability across Asia, EMEA, Americas, and Australia/New Zealand.

Specifications
