Are you tired of using outdated technology that slows down your projects? Look no further than the TechNexion AXON-IMX9, 2GB LPDDR4, 32GB eMMc System on Module (SOM). This powerful module is designed to help you bring your ideas to life with its advanced features and capabilities. With the TechNexion AXON-IMX9, you can say goodbye to slow processing times and hello to faster, more efficient project development. Many buyers face the problem of using old systems that are not compatible with new technologies, but with the TechNexion AXON-IMX9, you can easily integrate it into your existing projects and take advantage of its advanced features.

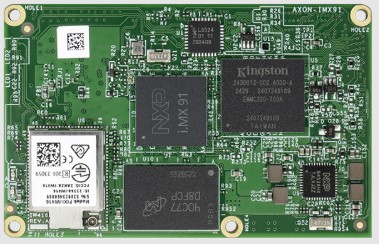

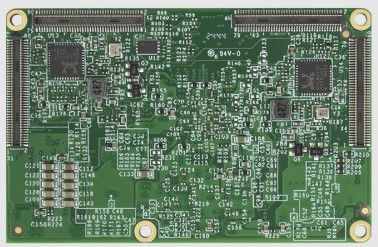

TechNexion AXON-IMX9, 2GB LPDDR4, 32GB eMMc System on Module (SOM)
The TechNexion AXON-IMX9 solves the problem of outdated technology by providing a powerful and efficient system on module that can be easily integrated into your projects. This problem matters to users because it can slow down their project development and make it harder to bring their ideas to life. The TechNexion AXON-IMX9 gives a clear solution by providing advanced features such as a fast processor, plenty of memory, and a range of connectivity options. With the TechNexion AXON-IMX9, you can take your projects to the next level and achieve your goals faster.
Key Features
- NXP i.MX91 processor, providing fast and efficient processing
- 2GB LPDDR4 memory, providing plenty of storage for your applications
- 32GB eMMc storage, providing ample space for your operating system and applications
- AXON 80-pin Hirose connectors, making it easy to connect to your existing projects
- UART interface, providing a reliable and efficient way to communicate with your devices
- Support for Linux, Yocto, and Debian operating systems, giving you flexibility and choice
- Low power consumption, making it suitable for use in portable devices
- Highly reliable, with a range of features to ensure stable and efficient operation
- Small size, making it ideal for use in a range of applications, from industrial automation to consumer electronics
- Easy to integrate into your existing projects, saving you time and money
Specifications:
| Core System |
|
| Processor |
NXP i.MX91 |
| Architecture |
Arm Cortex-A55 |
| PMIC |
NXP MPF9453 |
| Memory |
2GB LPDDR4 |
| Storage |
32GB eMMC (default) |
| Board-to-Board Connector |
AXON 80-pin Hirose connectors |
| System on Module |
AXON SOM |
| Debug Interface |
UART Interface by Through-hole |
| Connectivity |
|
| Network LAN |
2x Realtek RTL8211 |
| Wi-Fi |
NXP IW416 Wi-Fi 4 – 802.11 a/b/g/n (optional) |
| Bluetooth |
NXP IW416 Bluetooth (optional) |
| Antenna |
MHF4 connector (optional) |
| Signaling |
|
| TTL RGB |
1x |
| LAN |
2x |
| USB 2.0 |
2x |
| I²S |
1x |
| CAN |
1x |
| UART |
2x |
| I²C |
2x |
| SDIO/SD/MMC |
1x SDIO |
| GPIO |
16x |
| TAMPER |
1x |
| ADC |
2x |
| Audio |
|
| Audio Codec |
On carrier board |
| Audio Interface |
I²S |
| Power Specifications |
|
| Power Input |
5V DC +/-5% |
| Power Consumption |
Depending on Configuration |
| Software Support |
|
| Standard Support |
LinuxYoctoDebian |
| Environmental and Mechanical |
|
| Dimensions |
58 (W) x 37 (H) x 5 (D) mm |
| Weight |
12 grams |
| Form Factor |
AXON |
| Relative Humidity |
10 to 90 % |
| Operation Temperature |
Commercial: 0°C to +60°C |
| Certification and Compliance |
|
| USA |
FCC ID: 2AKZA-IW416 |
| Canada |
IC: 22364-IW416 |
| European Union |
EN 55032 / EN 55035EN 300 328 v2.2.2EN 301 893 v2.1.1 |
| Japan |
TELEC: 201-230590 |
| Australia / New Zealand |
RCM Compliant |
| Certification |
Compliant with RoHS / REACH directives |
| Bluetooth Logo |
QDID 218991 (Bluetooth 5.2) |
| Commercial Information |
|
| Brand |
TechNexion |
| Country of Origin |
Taiwan |
| HTSN |
8473.30.1180 |
| ECCN |
EAR99 |
| CCATS |
740.17(b)(1) Mass Market (No License Required) |
| REACH / RoHS |
Yes |
