Product Code: ACEL-053

MPN #: UVC-VL-FPD3-1CAM

If you are looking for a way to connect your camera to a USB Type-C equipped system, you may have noticed that it can be a challenge. Many cameras do not have a native USB Type-C interface, which can make it difficult to connect them to newer systems. This can be a problem for people who need to use their cameras for work or other important tasks. The TechNexion UVC-VL-FPD3-1CAM, 1 Port USB Type-C Frame Grabber Adaptor is a product that can help solve this problem. It allows you to connect your camera to a USB Type-C equipped system, even if the camera does not have a native USB Type-C interface. This can be a big help for people who need to use their cameras in a variety of situations.

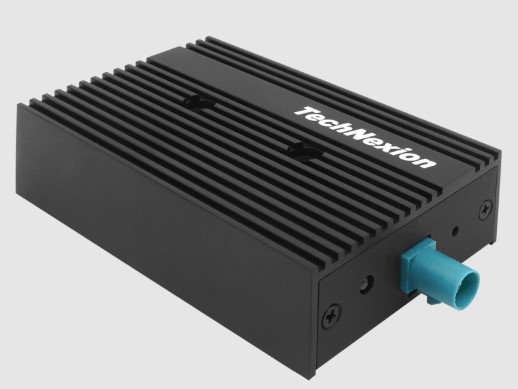

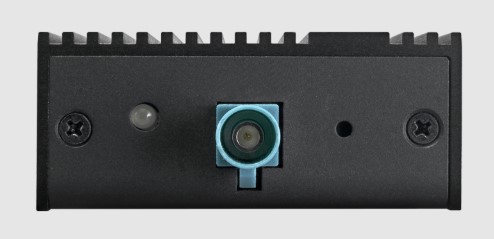

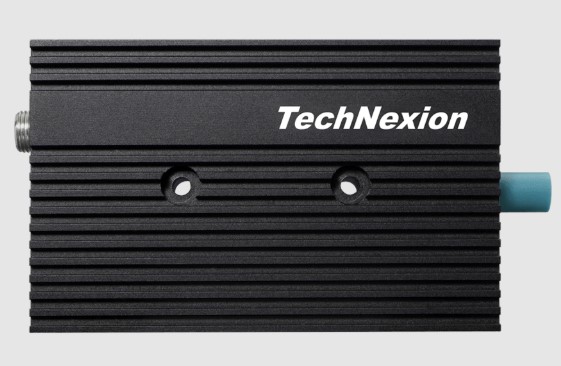

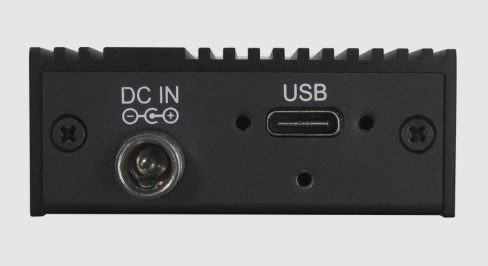

TechNexion UVC-VL-FPD3-1CAM, 1 Port USB Type-C Frame Grabber Adaptor with TechNexion

Are you tired of being limited by your camera's interface options? Do you wish you could connect your camera to any system, regardless of the interface? The TechNexion UVC-VL-FPD3-1CAM, 1 Port USB Type-C Frame Grabber Adaptor is here to help. This product is a frame grabber adaptor that allows you to connect your camera to a USB Type-C equipped system, giving you the freedom to use your camera in a variety of situations. With the TechNexion UVC-VL-FPD3-1CAM, you can connect your camera to a USB Type-C equipped system, even if the camera does not have a native USB Type-C interface. This can be a big help for people who need to use their cameras for work or other important tasks.





Key Features
    • Connects a TechNexion FPD-Link III camera to USB Type-C equipped systems
    • No native FPD-Link interface required
    • Plug-and-play for easy use
    • Supports x86 and ARM systems
    • Aluminum housing for durability
    • Fanless design for quiet operation
    • Screw locking mechanism for secure mounting
    • Automotive ready for use in vehicles
    • Power optimized for low power consumption
    • Supports TN-Vizion SDK series and multiple programming languages





Specifications
Model UVC-VL-FPD3-1CAM
Product Type USB Type-C Frame Grabber Adaptor
Brand TechNexion
Camera Support
Camera Interface FPD-Link III
Max Camera Channels Single camera
Embedded Camera Distance Up to 15 meters over single-wire coax cable
Host Interface
Host Interface USB Type-C
Platform Support x86 / ARM systems
Features
Plug-and-Play Yes
Native FPD-Link Interface Required No
Housing Aluminum
Cooling Fanless
Mounting Screw locking mechanism
Automotive Ready Yes
Power Optimized Various power modules provide a wide power input voltage range
Software Platform Supports TN-Vizion SDK series and multiple programming languages
Application
Function

Connects a TechNexion FPD-Link III camera to USB Type-C equipped systems

without requiring a native FPD-Link interface.
