Are you tired of using low-quality cameras that do not meet your expectations? Look no further than the TechNexion UVLS-FPD3-AR1335-C-S85-IR, FPD-Link III PCB Board Level Camera. This camera is designed to provide high-quality images and videos, making it perfect for a variety of applications. With its advanced features and durable design, this camera is sure to meet all your needs. Many buyers face the problem of finding a camera that can provide clear and sharp images, but with the TechNexion UVLS-FPD3-AR1335-C-S85-IR, you can say goodbye to those days. The TechNexion brand is known for its high-quality products, and this camera is no exception.

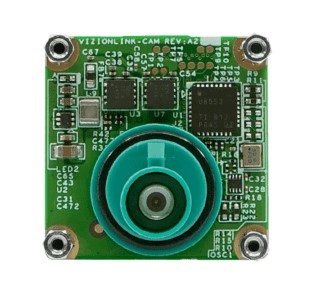

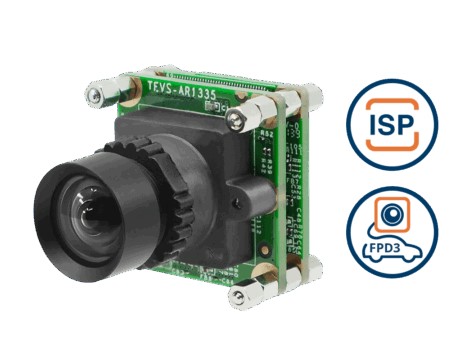

TechNexion UVLS-FPD3-AR1335-C-S85-IR, FPD-Link III PCB Board Level Camera
The TechNexion UVLS-FPD3-AR1335-C-S85-IR, FPD-Link III PCB Board Level Camera solves the problem of low-quality images and videos by providing a high-quality camera that can capture clear and sharp images. This problem matters to users because it can affect the overall quality of their work or project. For example, if you are using a camera for surveillance, a low-quality camera can make it difficult to identify suspects or objects. The TechNexion UVLS-FPD3-AR1335-C-S85-IR provides a clear solution by offering advanced features such as a high-resolution sensor and a wide-angle lens. With this camera, you can capture high-quality images and videos, making it perfect for a variety of applications.
Key Features
- High-resolution sensor: The camera features a high-resolution sensor that can capture clear and sharp images.
- Wide-angle lens: The camera's wide-angle lens makes it perfect for use in applications that require a wide field of view.
- Low power consumption: The camera's low power consumption makes it perfect for use in portable devices.
- Small size: The camera's small size makes it perfect for use in compact devices.
- Durable design: The camera's durable design makes it perfect for use in harsh environments.
- High-quality images and videos: The camera provides high-quality images and videos, making it perfect for a variety of applications.
- Advanced features: The camera offers advanced features such as a high-resolution sensor and a wide-angle lens.
- Easy to use: The camera is easy to use and requires minimal setup and configuration.
- Compatible with a variety of devices: The camera is compatible with a variety of devices, including smartphones, tablets, and computers.
- High frame rate: The camera can capture high-frame-rate videos, making it perfect for use in applications that require fast motion capture.
Specifications
| Camera Information |
|
| CMOS Sensor |
onsemi AR1335 |
| Active Pixels |
4208 (H) x 3120 (V) = 13MP |
| Pixel Size |
1.1 μm x 1.1 μm |
| Illuminated type |
Back Side Illuminated (BSI) |
| Maximum S/N Ratio |
37 dB |
| Optical Format |
1/3.2” (Diagonal 5.8 mm) |
| Shutter Type |
Rolling Shutter |
| Chromaticity |
Color |
| Maximum Frame Rate (YUV422-UYVY) |
4208 x 3120 @ 10 fps
3840 x 2160 @ 15 fps
2560 x 1440 @ 30 fps
1920 x 1080 @ 60 fps
1280 x 720 @ 120 fps
640 x 480 @ 60 fps
|
| Output Format |
YUV422-UYVY
RGB888
RGB565
RAW8
RAW10
RAW12
|
| Interface |
|
| Serial Link |
FPD-Link III |
| Serializer |
TI DS90UB953 |
| Connector |
FAKRA SMB Jack Z-Code |
| Power Specifications |
|
| Power over Coax |
10.8V – 26.4V |
| Power Consumption |
UYVY 4200 x 3120 @ 12 fps ≤ 1.4W |
| Standby Power |
≤ 0.3W Standby |
| Software Support |
|
| Platform Support |
NVIDIA Jetson AGX Orin
NVIDIA Jetson Orin Nano / NX
NVIDIA Jetson Xavier NX
NVIDIA Jetson Nano
NXP i.MX95
TI Sitara™ AM68 / AM69
TI Jacinto™ TDA4VM / TDA4VH
|
| Operation Systems |
LinuxYocto |
| SDK |
VizionViewer™ / VizionSDK |
| Lens Information |
|
| Focus Type |
Fixed Focus |
| Focal Length |
3.2 mm |
| Aperture |
F2.4 |
| Module D-FOV |
84.6° ± 5% |
| Module H-FOV |
70.3° ± 5% |
| Module V-FOV |
55.2° ± 5% |
| TTL |
22 mm |
| BFL |
3.4 mm |
| MOD |
0.3 m |
| Distortion |
< 1.6% |
| IR-Filter |
650 nm |
| Environmental and Mechanical |
|
| Dimensions |
24.5(W) x 24.5(H) x 30.0(D) mm |
| Weight |
20 grams |
| Operation Temperature |
-30°C to +70℃ |
| Certification and Compliance |
|
| Certification |
Compliant with CE / FCC / RoHS / REACH directives |
| Commercial Information |
|
| Brand |
TechNexion |
| Country of Origin |
Taiwan |
| HTSN |
8525.89.5050 |
| ECCN |
EAR99 |
| REACH / RoHS |
Yes |
