If you are looking for a high-quality camera that can provide you with clear and detailed images, then you should consider the TechNexion UVLS-GM2-AR1335-C-S85-IR, GMSL2 PCB Board Level Camera 13MP. This camera is designed to provide you with the best possible image quality, and it is perfect for a variety of applications, including security, surveillance, and industrial inspection. Many people struggle with finding a camera that can provide them with the level of detail and clarity they need, but with the TechNexion UVLS-GM2-AR1335-C-S85-IR, you can say goodbye to those struggles. With its high-resolution sensor and advanced features, this camera is the perfect solution for anyone looking for a reliable and high-quality camera.

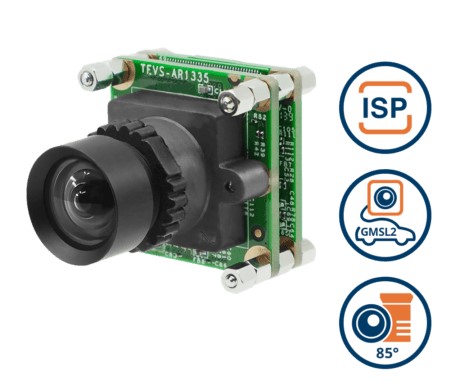

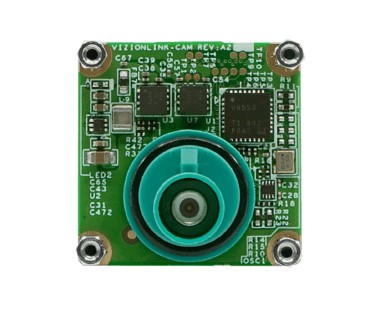

TechNexion UVLS-GM2-AR1335-C-S85-IR, GMSL2 PCB Board Level Camera 13MP
The TechNexion UVLS-GM2-AR1335-C-S85-IR, GMSL2 PCB Board Level Camera 13MP solves the problem of poor image quality and provides a clear solution for users who need high-quality images. This problem matters to users because poor image quality can lead to inaccurate results and a lack of detail. The TechNexion UVLS-GM2-AR1335-C-S85-IR provides a clear solution by offering a high-resolution sensor and advanced features that provide users with the best possible image quality. With this camera, users can enjoy clear and detailed images, making it perfect for a variety of applications.
Key Features
- 13MP high-resolution sensor
- Back-side illuminated sensor for improved low-light performance
- Rolling shutter for reduced noise and improved image quality
- GMSL2 interface for high-speed data transfer
- Serializer for easy integration into existing systems
- FAKRA SMB Jack Z-Code connector for secure and reliable connections
- Power over coax for easy and convenient power supply
- Low power consumption for reduced heat and improved reliability
- Compact and lightweight design for easy integration into existing systems
- Compliant with CE, FCC, RoHS, and REACH directives for safe and reliable use
Specifications
| Camera Information |
|
| CMOS Sensor |
onsemi AR1335 |
| Active Pixels |
4208 (H) x 3120 (V) = 13MP |
| Pixel Size |
1.1 μm x 1.1 μm |
| Illuminated type |
Back Side Illuminated (BSI) |
| Maximum S/N Ratio |
37 dB |
| Optical Format |
1/3.2” (Diagonal 5.8 mm) |
| Shutter Type |
Rolling Shutter |
| Chromaticity |
Color |
| Maximum Frame Rate (YUV422-UYVY) |
4208 x 3120 @ 10 fps
3840 x 2160 @ 15 fps
2560 x 1440 @ 30 fps
1920 x 1080 @ 60 fps
1280 x 720 @ 120 fps
640 x 480 @ 60 fps
|
| Output Format |
YUV422-UYVY
RGB888
RGB565
RAW8
RAW10
RAW12
|
| Interface |
|
| Serial Link |
GMSL2™ |
| Serializer |
MAX96717 |
| Connector |
FAKRA SMB Jack Z-Code |
| Power Specifications |
|
| Power over Coax |
10.8V – 26.4V |
| Power Consumption |
UYVY 4200 x 3120 @ 12 fps ≤ 1.56W |
| Standby Power |
≤ 0.6W Standby |
| Software Support |
|
| Platform Support |
NVIDIA Jetson AGX Orin
NVIDIA Jetson Orin Nano / NX
NXP i.MX95
NXP i.MX8M Plus
Intel Arrow Lake
Intel Panther Lake
|
| Operation Systems |
Linux
Yocto
Android
|
| SDK |
VizionViewer™ / VizionSDK |
| Lens Information |
|
| Focus Type |
Fixed Focus |
| Focal Length |
3.2 mm |
| Aperture |
F2.4 |
| Module D-FOV |
84.6° ± 5% |
| Module H-FOV |
70.3° ± 5% |
| Module V-FOV |
55.2° ± 5% |
| TTL |
22 mm |
| BFL |
3.4 mm |
| MOD |
0.3 m |
| Distortion |
< 1.6% |
| IR-Filter |
650 nm |
| Environmental and Mechanical |
|
| Dimensions |
24.5(W) x 24.5(H) x 30.0(D) mm |
| Weight |
20 grams |
| Operation Temperature |
-30°C to +70℃ |
| Certification and Compliance |
|
| Certification |
Compliant with CE / FCC / RoHS / REACH directives |
| Commercial Information |
|
| Brand |
TechNexion |
| Country of Origin |
Taiwan |
| HTSN |
8525.89.5050 |
| ECCN |
EAR99 |
| REACH / RoHS |
Yes |
