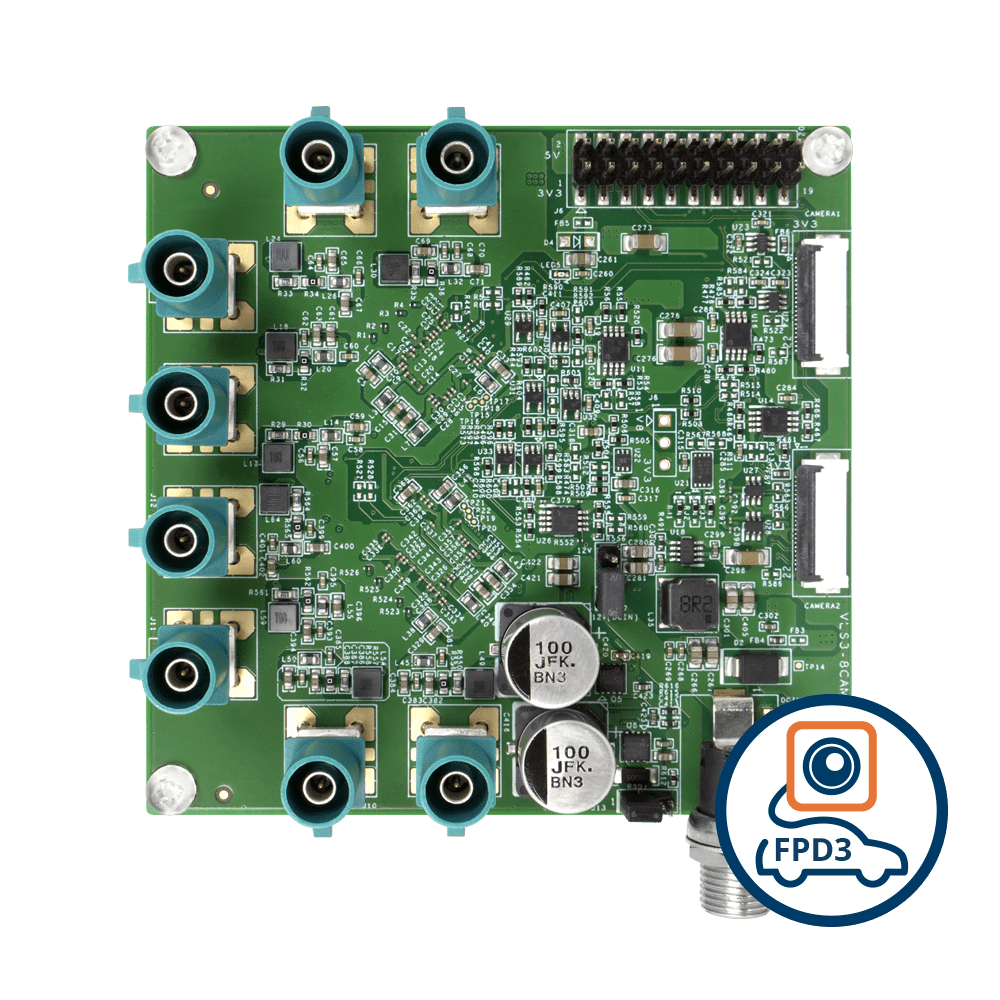

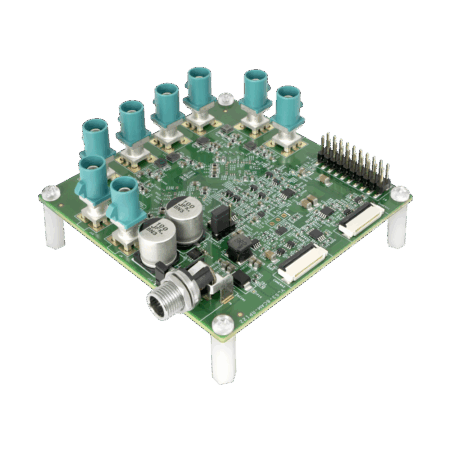

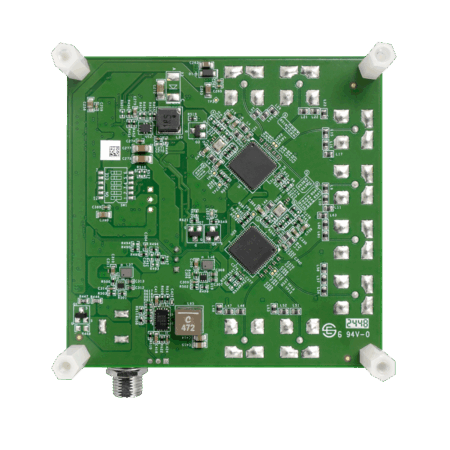

Technexion VL-FPD3-8CAM-RPI22, 8 Channel FPD-Link III cameras, Frame Grabber
Technexion VL-FPD3-8CAM-RPI22, 8 Channel FPD-Link III cameras, Frame Grabber
Technexion VL-FPD3-8CAM-RPI22, 8 Channel FPD-Link III cameras, Frame Grabber
Technexion VL-FPD3-8CAM-RPI22, 8 Channel FPD-Link III cameras, Frame Grabber
Technexion VL-FPD3-8CAM-RPI22, 8 Channel FPD-Link III cameras, Frame Grabber

Technexion VL-FPD3-8CAM-RPI22, 8 Channel FPD-Link III cameras, Frame Grabber

UK Free Shipping UK Free Shipping over £249


Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Product Code: SMVS-059

MPN #: VL-FPD3-8CAM-RPI22

If you are looking for a reliable and efficient solution to capture and process video feeds from multiple cameras, you may be facing a common problem. Many systems struggle to handle the high bandwidth required for multiple camera feeds, resulting in poor video quality, lag, or even system crashes. This problem matters to you because it can affect the accuracy and reliability of your video processing applications, such as surveillance, robotics, or autonomous vehicles. The Technexion VL-FPD3-8CAM-RPI22, 8 Channel FPD-Link III cameras, Frame Grabber provides a clear solution to this problem by offering a high-performance, low-latency frame grabber that can handle up to 8 camera feeds simultaneously, ensuring high-quality video capture and processing.



Technexion VL-FPD3-8CAM-RPI22, 8 Channel FPD-Link III cameras, Frame Grabber with Technexion

Imagine being able to capture and process high-quality video feeds from multiple cameras in real-time, without any lag or interruption. The Technexion VL-FPD3-8CAM-RPI22, 8 Channel FPD-Link III cameras, Frame Grabber makes this possible, providing a powerful and flexible solution for a wide range of applications. As a user, you need a reliable and efficient system that can handle multiple camera feeds, and the Technexion VL-FPD3-8CAM-RPI22 delivers. With its advanced FPD-Link III technology and support for up to 8 cameras, this frame grabber is the perfect solution for anyone looking to capture and process high-quality video feeds.





Key Features
    • Support for up to 8 FPD-Link III cameras
    • Advanced frame grabber technology for high-quality video capture
    • Low latency and real-time processing for fast and accurate results
    • Compact size and low power consumption for use in embedded systems
    • Flexible and scalable design for a wide range of applications
    • Reliable and efficient performance for 24/7 operation

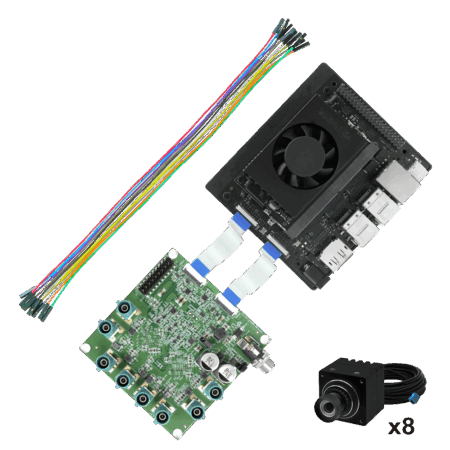

    • Support for NVIDIA Jetson AGX Orin platform
    • Linux operating system support
    • VizionViewer and VizionSDK software support
    • REACH and RoHS compliance for environmental sustainability



Specifications
Information
Deserializer MAX96716A
Frame Sync Support Sync mode / non-Sync mode support
Interface
Support Camera Quantity Up to 8 Cameras
Connector FAKRA SMB Jack Z-Code
DIO Connector 20-Pin Expansion120-Pin Jetson Camera Connector
Power Specifications
Power Input 10-30V DC
Power Connector Molex 430450412
Power Consumption Depending on Configuration
Software Support
Platform Support NVIDIA Jetson AGX Orin
Operation Systems Linux
SDK VizionViewer™ / VizionSDK
Environmental and Mechanical
Dimensions 102 x 64.1 mm
Weight 68 grams
Operation Temperature -30°C to +70℃
Commercial Information
Brand TechNexion
Country of Origin Taiwan
HTSN 8473.30.1180
ECCN EAR99
REACH / RoHS Yes
