Are you tired of dealing with complicated camera systems that are hard to set up and use? Do you need a reliable and easy-to-use frame grabber that can handle multiple cameras at once? Look no further than the TechNexion VL-GM2-8CAM-AGX-ORIN, 8-channel GMSL2 Frame Grabber. This powerful device is designed to make it easy to capture and process video feeds from up to 8 cameras, making it perfect for a wide range of applications. With its advanced features and user-friendly design, this frame grabber is the perfect solution for anyone looking to simplify their camera system and improve their overall video quality.

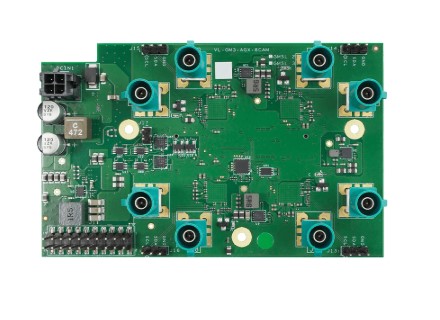

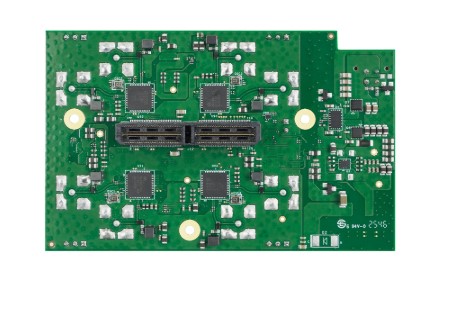

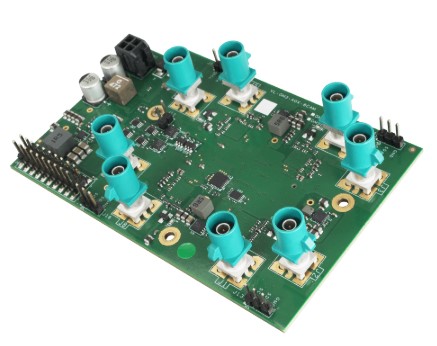

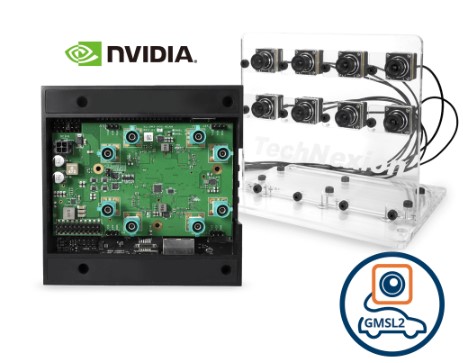

TechNexion VL-GM2-8CAM-AGX-ORIN, 8-channel GMSL2 Frame Grabber
The TechNexion VL-GM2-8CAM-AGX-ORIN, 8-channel GMSL2 Frame Grabber solves the problem of complicated camera systems by providing a simple and reliable way to capture and process video feeds from multiple cameras. This problem matters to users because it can be frustrating and time-consuming to deal with complicated camera systems, and it can also lead to poor video quality. The TechNexion VL-GM2-8CAM-AGX-ORIN, 8-channel GMSL2 Frame Grabber gives a clear solution to this problem by providing a user-friendly interface and advanced features that make it easy to set up and use. With its support for up to 8 cameras and advanced features like frame sync support, this frame grabber is the perfect solution for anyone looking to simplify their camera system and improve their overall video quality.
Key Features
- Supports up to 8 cameras
- Advanced features like frame sync support and non-sync mode support
- User-friendly interface that makes it easy to capture and process video feeds
- Reliable and durable design that can withstand heavy use
- Support for NVIDIA Jetson AGX Orin platform
- Support for Linux operating system
- VizionViewer and VizionSDK software support
- Dimensions: 102 x 64.1 mm
- Weight: 68 grams
- Operation temperature: -30C to +70C
- Power input: 10-30V DC
Specifications
| Information |
|
| Deserializer |
MAX96716A |
| Frame Sync Support |
Sync mode / non-Sync mode support |
| Interface |
|
| Support Camera Quantity |
Up to 8 Cameras |
| Connector |
FAKRA SMB Jack Z-Code |
| DIO Connector |
20-Pin Expansion120-Pin Jetson Camera Connector |
| Power Specifications |
|
| Power Input |
10-30V DC |
| Power Connector |
Molex 430450412 |
| Power Consumption |
Depending on Configuration |
| Software Support |
|
| Platform Support |
NVIDIA Jetson AGX Orin |
| Operation Systems |
Linux |
| SDK |
VizionViewer™ / VizionSDK |
| Environmental and Mechanical |
|
| Dimensions |
102 x 64.1 mm |
| Weight |
68 grams |
| Operation Temperature |
-30°C to +70℃ |
| Commercial Information |
|
| Brand |
TechNexion |
| Country of Origin |
Taiwan |
| HTSN |
8473.30.1180 |
| ECCN |
EAR99 |
| REACH / RoHS |
Yes |
