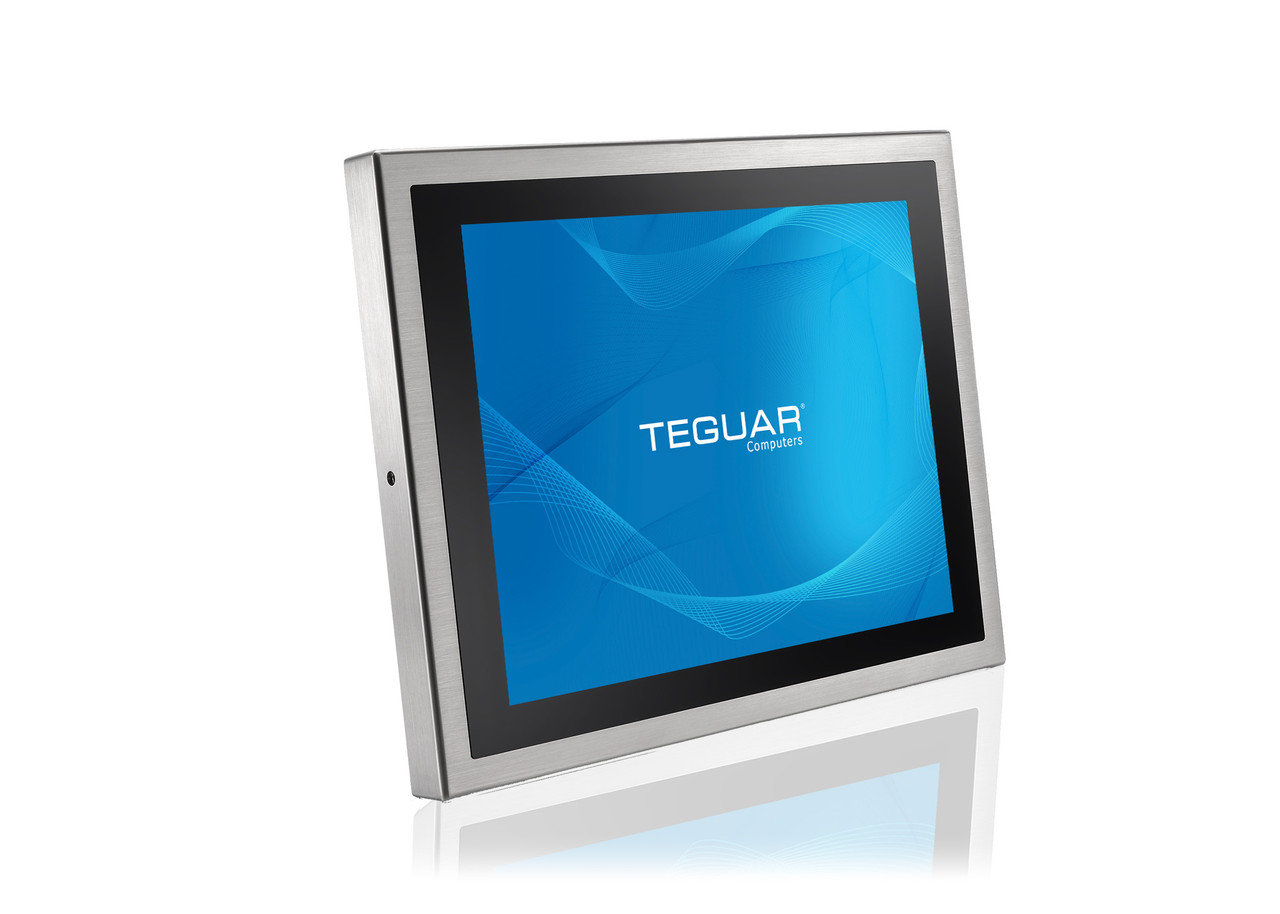

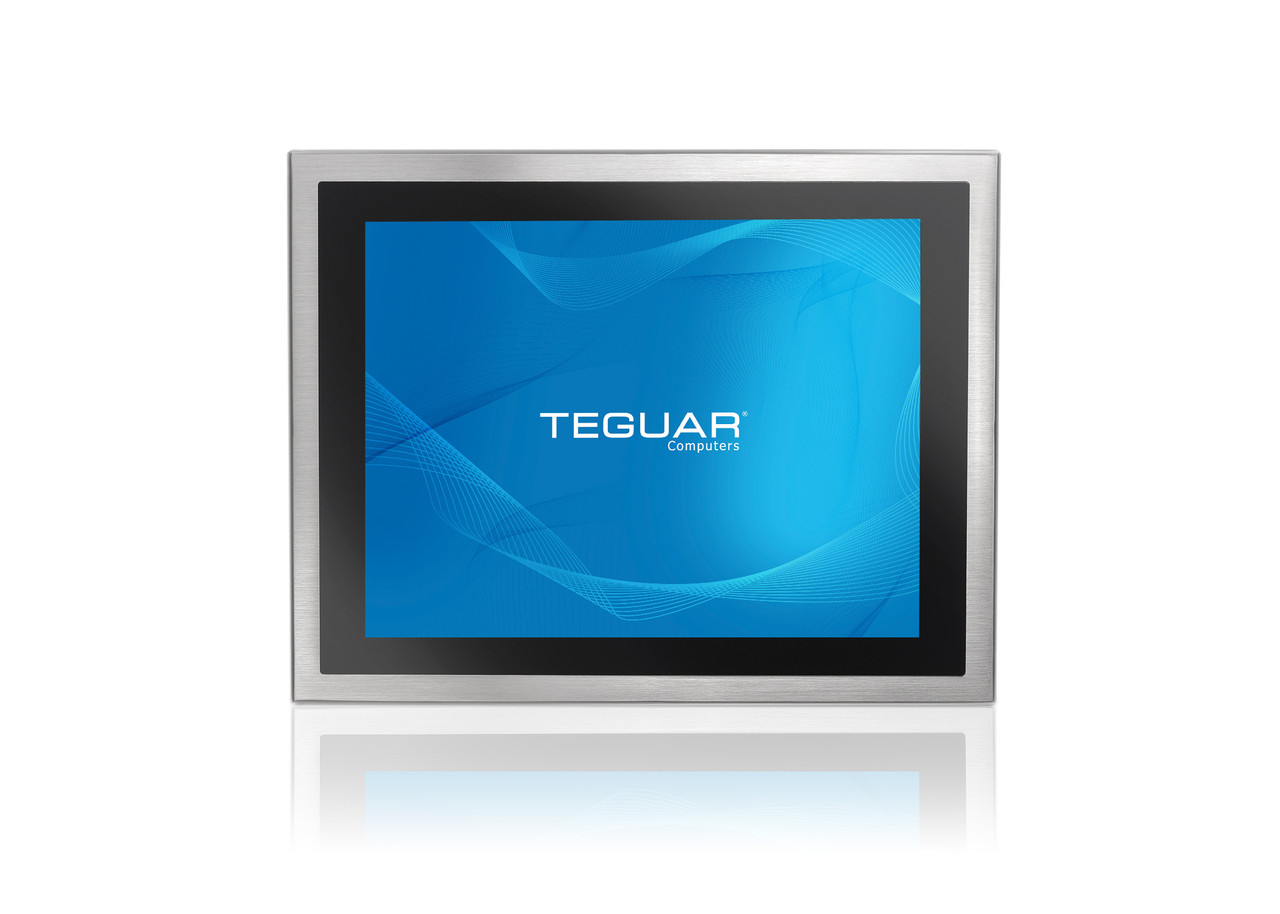

Teguar TS-4810-15, Intel Celeron J6412 15" Stainless Steel Panel PC
The Teguar TS-4810-15 is a rugged 15-inch stainless steel panel PC designed for industrial applications that require dependable computing and a durable touchscreen interface. Powered by the Intel Celeron J6412 processor with speeds up to 2.6 GHz, it provides practical performance for industrial control, monitoring, data collection, and operator interface applications.
The system supports up to 32GB of DDR4 SO-DIMM memory and offers flexible storage through a 2.5-inch SATA drive bay and an M.2 SATA3 2280 slot. The 4:3 display provides a practical viewing format for industrial interfaces, while the 350-nit brightness and 5-wire resistive or projected capacitive touchscreen options support different operating and user interaction requirements.
Built with optional SUS316 or SUS304 stainless steel construction, the TS-4810-15 provides IP66, IP69K, NEMA 4X, and optional IP67 protection. Its rugged enclosure is suitable for environments where resistance to water, dust, cleaning processes, and demanding industrial conditions is important. Passive fanless cooling also helps support reliable operation without moving cooling components.
The panel PC provides multiple industrial connectivity options, including M12 USB ports, dual configurable COM ports with RS-232/422/485 support, 2.5Gbit LAN, and configurable M12 ports that can be adapted for additional LAN or COM connectivity. Expansion options include WiFi, Bluetooth, and 4G/5G cellular connectivity, while an optional 1D/2D barcode scanner can support data capture applications.
The Teguar TS-4810-15 can be used for industrial automation, machine control, production monitoring, process visualization, HMI systems, warehouse operations, and other demanding applications. Its 12-28V DC input, multiple mounting options, wide environmental protection ratings, and fanless design provide flexibility for installation in industrial workspaces and equipment environments.
Key features
-
Intel Celeron J6412 processor with speeds up to 2.6 GHz
-
15-inch 4:3 touchscreen display with 350-nit brightness
-
Optional SUS316 or SUS304 stainless steel enclosure
-
IP66, IP69K, NEMA 4X, and optional IP67 protection
-
Up to 32GB DDR4 SO-DIMM memory support
-
2.5-inch SATA and M.2 SATA3 2280 storage options
-
Dual RS-232/422/485 COM and 2.5Gbit LAN connectivity
-
Passive fanless cooling with 12-28V DC input
SPECIFICATION
| Primary Components |
|
| Processor Family |
Intel Celeron Elkhart Lake |
| Processor Model |
Celeron J6412 |
| Processor Speed |
Up to 2.6 GHz |
| Memory Type |
2x DDR4 SO-DIMM |
| Memory Support |
4GB, 8GB, 16GB, 32GB |
| Storage Type |
1x 2.5" SATA Drive Bay for SSD/HDD, 1x M.2 SATA3 2280 Slot |
| Storage Support |
64GB-2TB |
| Power |
|
| Input Voltage Range |
12-28V DC |
| Standard Power Adapter |
AC 100~240V / 47 ~ 63Hz, IP68, 60W |
| Operating Systems |
|
| Windows |
Windows 10 IoT, Windows 10 Pro, Windows 11 Pro |
| Linux |
Linux Ubuntu 20.04 or above (Contact your sales rep for more information) |
| Compatibility |
|
| Security Hardware |
fTPM 2.0 |
| Multimedia |
|
| Speakers |
Optional Speaker |
| Enclosure |
|
| Material |
Optional SUS316 Stainless Steel, SUS304 Stainless Steel |
| IP Rating |
IP66, IP69K, NEMA 4X, Optional IP67 |
| Color |
Stainless Steel |
| Control Buttons |
Power Button |
| Mounting Options |
Table Mount, VESA 100 Mount, Wall Mount |
| Weight / Dimensions |
|
| Weight |
8.4 kg (18.5 lbs) |
| Dimensions |
395 x 310 x 58 mm (15.6 x 12.2 x 2.3 in) |
| Warranty |
|
| Warranty |
Up to 5 Years |
| Display |
|
| Screen Size |
15" |
| Screen Ratio |
4:3 |
| Brightness |
350 nits |
| Touch Screen |
|
| Touch Screen |
5 Wire Resistive, Projected Capacitive (Multi-touch) |
| Hardness |
Resistive: 3H, P-cap: 7H |

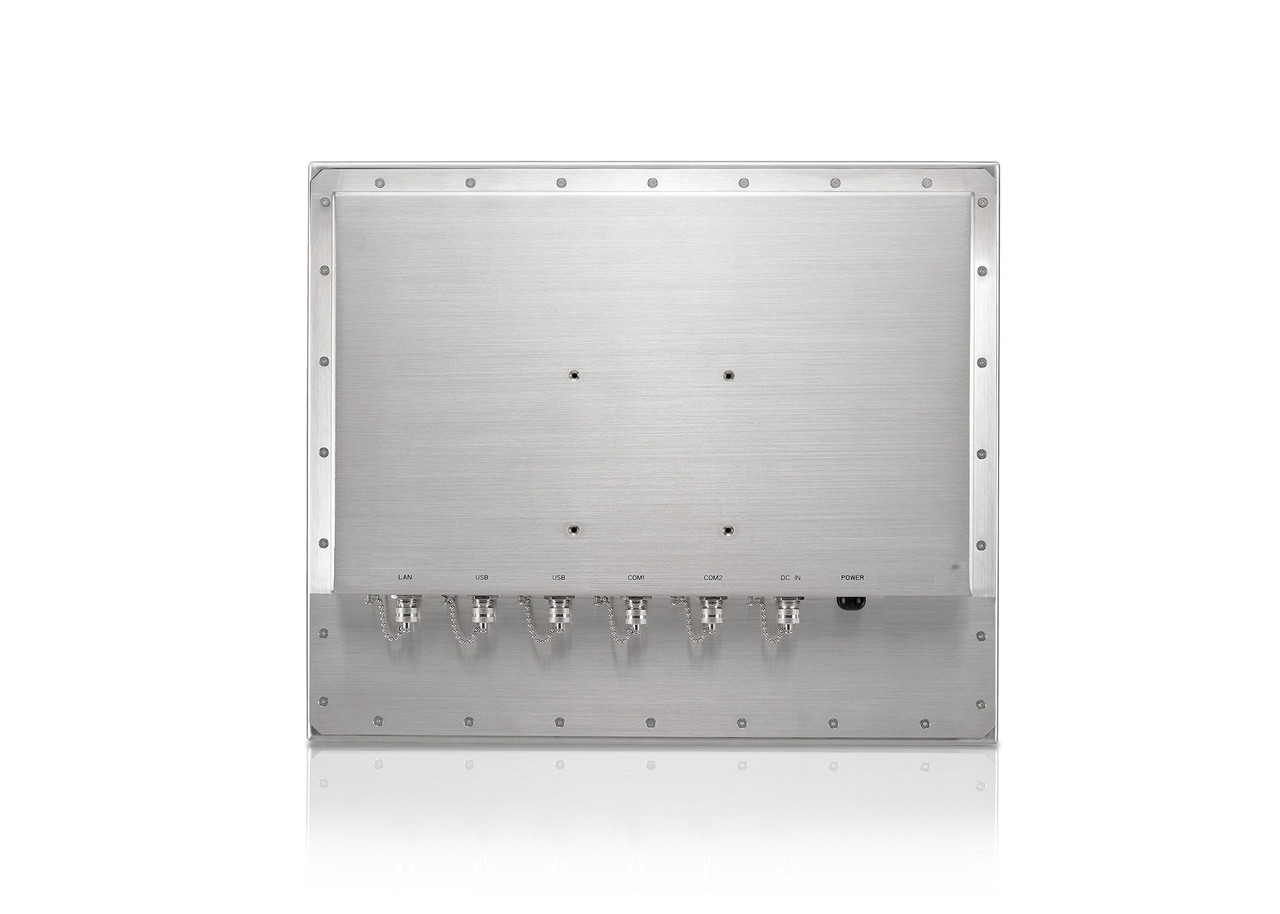

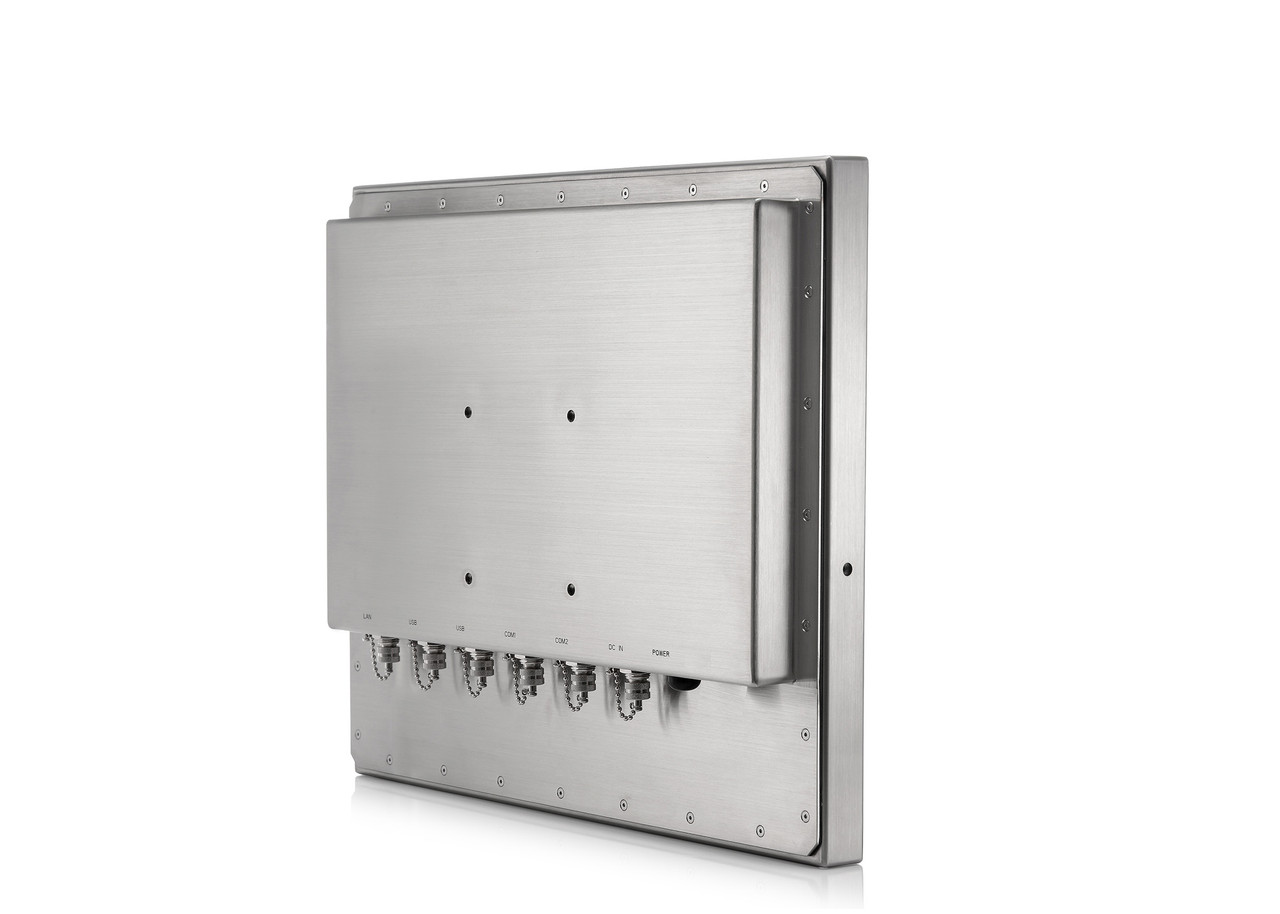

| External I/O Ports |
|
| USB |
2x M12 8Pin for USB 1/2 and USB 3/4 |
| Serial / Com |
2x M12 8-pin for COM |
| Serial Protocol Detail |
2x RS-232/422/485 (configured in BIOS) |
| Ethernet / LAN |
1x M12 8 pin RJ45 2.5Gbit LAN |
| Other Ports |
M12 Ports can be configured as needed. Example: 2nd LAN or 3rd COM port |
| Power Input Port |
M12 type 5-PIN DC-in |
| Expansion Slots |
|
| Internal M.2 |
1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 3042/3052 Key B
(For 4G/5G Cellular expansion option)
|
| Thermal & Environmental |
|
| Operating Temperature |
0°C - 50°C (32°F – 122°F) |
| Storage Temperature |
-20°C - 60°C (-4°F – 140°F) |
| Cooling Solution |
Passive – Fanless |
| Humidity Range |
10% – 90% Non-condensing |
| Storage Humidity |
10% – 90% Non-condensing |
| Peripherals & Wireless Connectivity |
|
| WiFi |
Optional WiFi + Bluetooth Flat Antenna Kit, Supports WIFI 6 (AX) |
| Bluetooth |
Optional Bluetooth 5.2 |
| Barcode Scanner |
Optional 1D/2D Barcode Scanner |
| Certification |
|
| Certifications |
CE, FCC, VCCI Class B |
