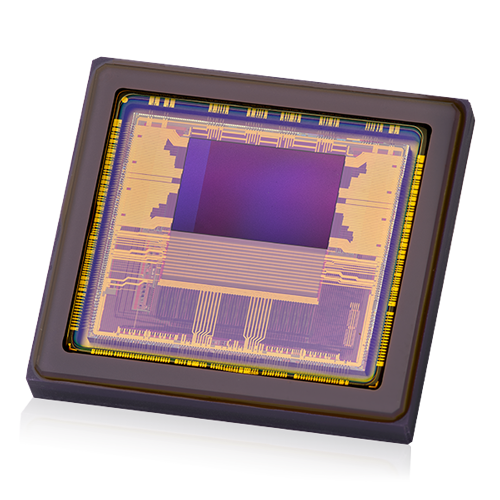

Teledyne Hydra3D+ high-resolution Time-of-Flight (ToF) CMOS Image Sensor

Imagine trying to capture exact depth data on a fast moving production line, but your camera blurs or skips details. The Teledyne Hydra3D+ high-resolution Time-of-Flight (ToF) CMOS Image Sensor gives you clear 3D images at high speed. It is made for industrial vision, robotics, and scientific research. If you need reliable distance measurement and sharp images in tough lighting, this sensor solves that problem.

Teledyne Hydra3D+ high-resolution Time-of-Flight (ToF) CMOS Image Sensor

Many users struggle with inaccurate depth data because traditional cameras cannot measure distance quickly enough. Inaccurate data can cause errors in robot positioning, quality inspection, and safety systems. This sensor removes the guesswork by providing real-time, high-resolution distance maps. The result is faster decision making, fewer mistakes, and smoother operation of automated equipment.

Usages of Teledyne

The sensor works well in factory automation where robots need exact object location. It fits security cameras that must detect intruders in low light. Researchers use it for motion capture and 3D scanning of small parts. It also powers autonomous drones that navigate indoors using depth perception.

Benefits

• High frame rate gives smooth motion capture, reducing missed events.
• Accurate depth data improves robot accuracy and reduces waste.
• Visible and NIR sensitivity works in bright and dark environments.
• Gated global shutter eliminates motion blur for fast moving objects.
• Multiple lens mounts let you choose the optics that fit your system.

Key Features

• 0.5 MP resolution (832 600 pixels)
• 416 fps frame/line rate
• 10 m 10 m pixel size
• LVDS interface for fast data transfer
• 2/3-inch optical format
• C-mount, APS, F-mount, TFL-mount, 35 mm, M42 compatible lenses
• Visible and near-infrared spectrum support
• NIR enhanced sensor for low-light performance
• Gated global shutter for motion-free images

Specifications
