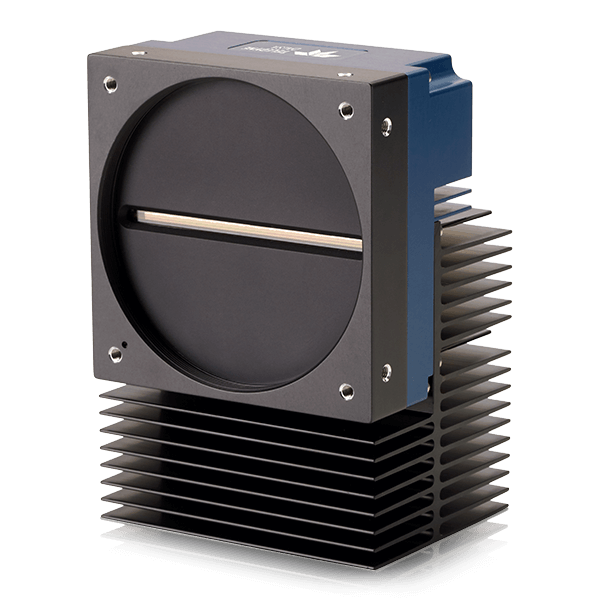

Teledyne Linea ML 16k, 300kHz 16k Multi-line Monochrome CMOS Camera

Imagine trying to capture fast moving parts on a production line and ending up with blurry images. The Teledyne Linea ML 16k, 300kHz 16k Multi-line Monochrome CMOS Camera is built for that challenge. It is a high-speed, line-scan camera that records every detail of fast objects. If you need reliable data for quality control, inspection or research, you cannot rely on ordinary cameras. This camera gives you the speed and clarity you need to stop defects before they happen.

Teledyne Linea ML 16k, 300kHz 16k Multi-line Monochrome CMOS Camera

The main problem it solves is missing or distorted data when objects move faster than a standard sensor can record. Missing data means wrong measurements, wasted time and higher costs. By using a 300 kHz line rate and Time Delay Integration, the camera captures each line without blur, delivering clean monochrome images even at extreme speeds. This clear solution lets you trust every frame for precise analysis.

Benefits

• Captures fast motion without blur - you see every detail of moving parts.
• High dynamic range of 70 dB - works in bright or dim light.
• Built-in 4 GB memory - stores images locally if the link is busy.
• Manual gain control - adjust brightness to match your scene.
• M90 lens mount - easy to attach a wide range of lenses.

Usages

This camera is ideal for industrial inspection where products move on a conveyor belt at high speed. It works well for semiconductor wafer inspection, where tiny defects must be seen clearly. High-speed sorting lines in food processing can use it to separate items based on size or shape. Researchers use it for scientific imaging of fast phenomena such as fluid flow or combustion. Aerospace testing labs rely on it to capture rapid events during material stress tests.

Key Features

• Resolution 16384 192 with two TDI arrays.
• CMOS sensor with 5 m pixel size.
• Time Delay Integration (TDI) shutter for motion-compensated capture.
• 300 kHz maximum line rate.
• Camera Link HS (CX4/AOC) data interface.
• 8-bit and 12-bit digitization options.
• IP30 protection rating for harsh environments.
• External trigger, free-running and CLHS trigger synchronization.
• ROI, multi-ROI and pixel binning for flexible imaging.
• 16 user configuration sets for custom settings.
• 30 W maximum power consumption, 12-24 V supply.
• Compact size 97 mm 140.5 mm 78.6 mm, weight 1.2 kg.
