Tired of missing objects on a fast conveyor or getting false alarms from dust? The Telemecanique Sensors Multimode Photoelectric Sensor, Barrel Sensor gives you reliable detection every time. It works in harsh factories, food plants, and packaging lines. If you need a sensor that can see through dirt, handle vibrations and still give a clean signal, this is the part you have been looking for.

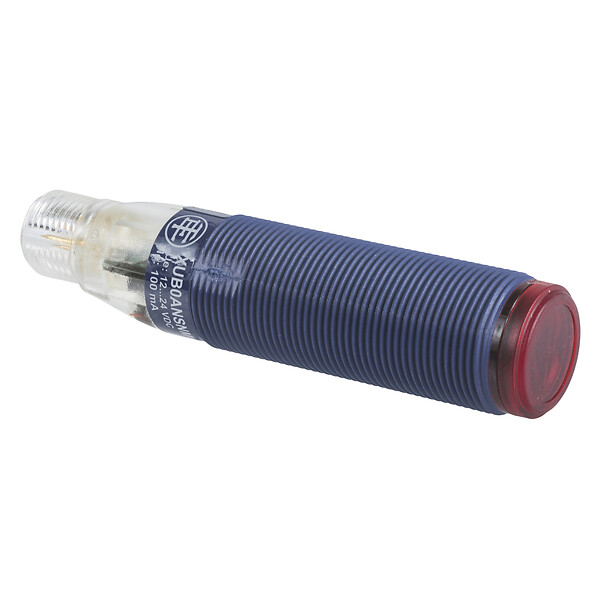

Telemecanique Sensors Multimode Photoelectric Sensor, Barrel Sensor
The sensor solves the problem of inconsistent object detection caused by changing lighting or dirty environments. When a sensor fails, production stops and costs rise. This barrel-type sensor uses infrared diffuse emission and an axial line of sight to ignore background light and focus on the target. Its multimode design lets you switch between reflective and through-beam modes without changing hardware, giving a simple and fast solution.
Key Features
- Cylindrical M18 design for compact installation.
- Infrared diffuse emission for reliable detection.
- PMMA lens material provides clear optical performance.
- Plastic housing with PBT enclosure for durability.
- 12-24 V DC supply with reverse polarity protection.
- 3-wire M12 connector, 4 pins for easy wiring.
- PNP output, programmable NO or NC.
- Switching capacity 100 mA with overload protection.
- 250 Hz switching frequency for fast cycles.
- 200 ms first-up delay, 2 ms response and recovery times.
- Vibration resistance 7 gn, shock resistance 30 gn.
- LED indicator shows green supply status.
Specifications
| General Information |
|
| Product Range |
Telemecanique Photoelectric Sensors XU |
| Series Name |
General Purpose Multimode |
| Electronic Sensor Type |
Photo-electric Sensor |
| Sensor Name |
XUB |
| Sensor Design |
Cylindrical M18 |
| Detection System |
Multimode |
| Line of Sight Type |
Axial |
| Product Specific Application |
Not Applicable |
| Optical Characteristics |
|
| Emission Types |
Infrared Diffuse |
| Lens Material |
PMMA |
| Mechanical Specifications |
|
| Housing Material |
Plastic |
| Enclosure Material |
PBT |
| Electrical Connection |
1 Male Connector M12, 4 Pins |
| Electrical Specifications |
|
| Supply Circuit Type |
DC |
| Rated Supply Voltage (Us) |
12…24 V DC (Reverse Polarity Protection) |
| Wiring Technique |
3-Wire |
| Output Type |
Solid State |
| Output Signal Type |
Discrete |
| Discrete Output Type |
PNP |
| Discrete Output Function |
1 NO or 1 NC Programmable |
| Add-On Output |
Without |
| Switching Capacity |
≤ 100 mA (Overload & Short-Circuit Protection) |
| Switching Frequency |
250 Hz |
| Maximum Voltage Drop |
< 1.5 V (Closed State) |
| Current Consumption |
35 mA (No-Load) |
| Timing Characteristics |
|
| Delay First-Up |
200 ms |
| Response Time |
2 ms |
| Recovery Time |
2 ms |
| Indication & Setup |
|
| Setting-Up |
Self-Teaching Environment |
| Status LEDs |
Green (Supply) |
| Environmental & Protection |
|
| Vibration Resistance |
7 gn, ±1.5 mm (10–55 Hz) IEC 60068-2-6 |
| Shock Resistance |
30 gn (11 ms) IEC 60068-2-27 |
| Degree of Protection |
IP65 |
