Imagine a work site where the internet drops just when you need to send a report or update a machine. The Teltonika RUT956 4G LTE upto 50 UL Mbps INDUSTRIELLER MOBILFUNK-ROUTER is built to stop that. It is a rugged mobile router that gives you fast LTE connectivity even in harsh environments. If you have lost productivity because of unreliable Wi-Fi or weak cellular signals, this device is the answer you have been waiting for.

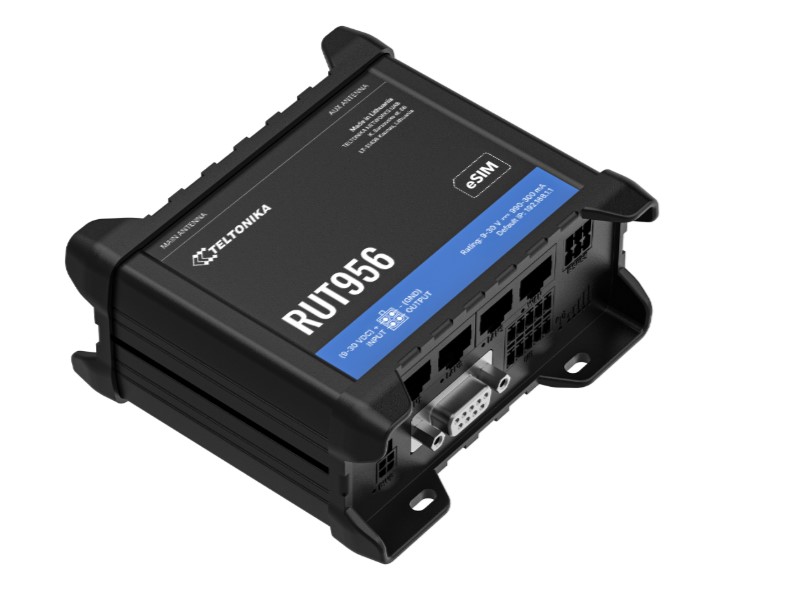

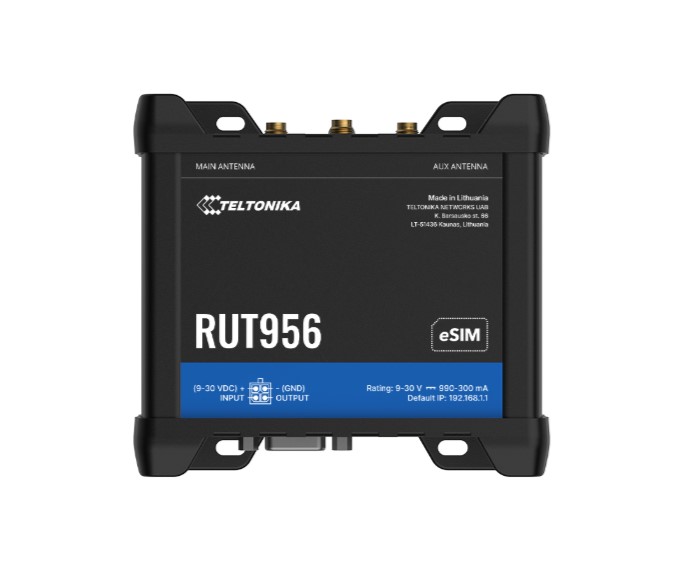

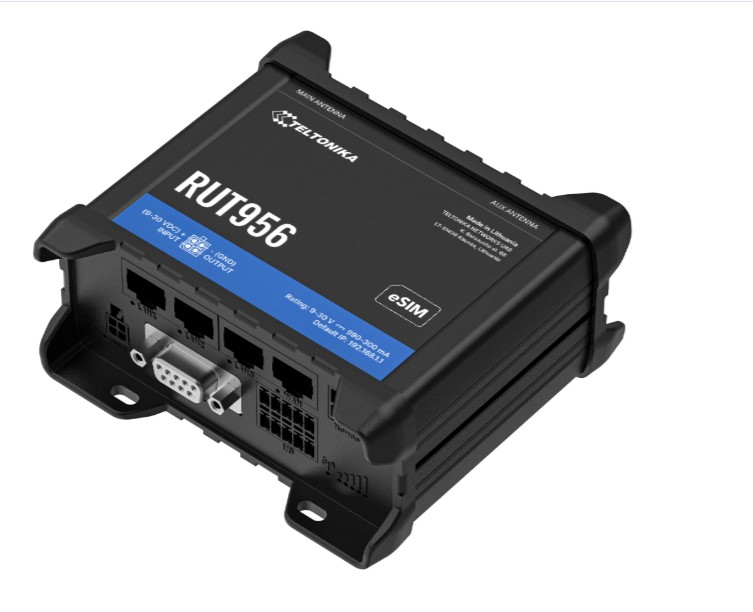

Teltonika RUT956 4G LTE upto 50 UL Mbps INDUSTRIELLER MOBILFUNK-ROUTER
Many businesses struggle with spotty mobile data that can halt remote monitoring, point-of-sale transactions, or fleet communication. When a connection fails, data is lost and decisions are delayed. The RUT956 solves this by offering reliable LTE Cat 4 speeds up to 150 Mbps down and 50 Mbps up, plus backup 3G/2G support. Its industrial-grade housing protects it from dust, vibration, and extreme temperatures, so you get a steady link wherever you place it.
Key Features
- 4G LTE Cat 4 (150 Mbps down / 50 Mbps up)
- 3G and 2G fallback for continuous coverage
- Mediatek 580 MHz CPU with 128 MB RAM
- Four RJ45 Ethernet ports, one configurable WAN
- 802.11b/g/n Wi-Fi AP and STA modes
- Two LTE SMA antennas and two Wi-Fi RP-SMA antennas
- eSIM support for up to seven profiles
- Digital and analog inputs, relay and open-collector outputs
- RS232 and RS485 serial interfaces
- Aluminium housing with plastic panels, 110 50 100 mm size, 287 g weight
Specifications
| Mobile |
|
| Mobile |
4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps |
| CPU |
Mediatek, 580 MHz, MIPS 24KEc |
| RAM |
128 MB, DDR2 |
| Storage |
16 MB, SPI Flash |
| Power |
|
| Powering options |
4-pin industrial DC power socket, 9 - 30 VDC |
| eSIM / SIM |
|
| eSIM |
Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans |
| SIM |
2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |

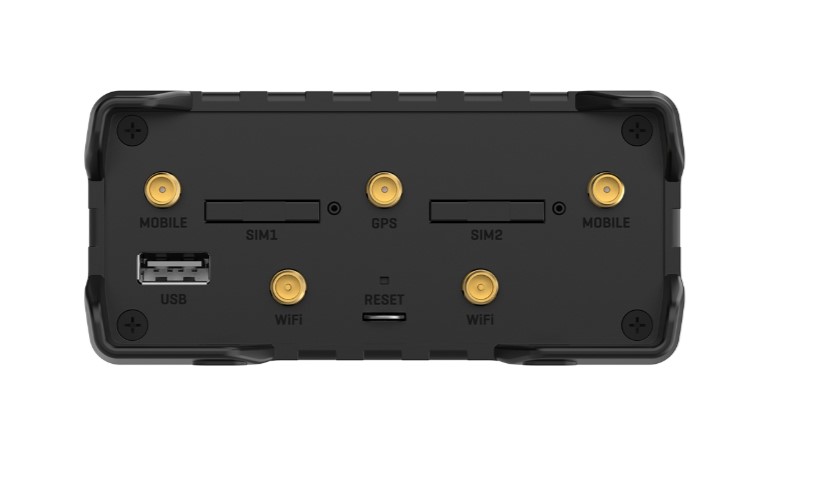

| Antennas |
|
| Antenna connectors |
2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |

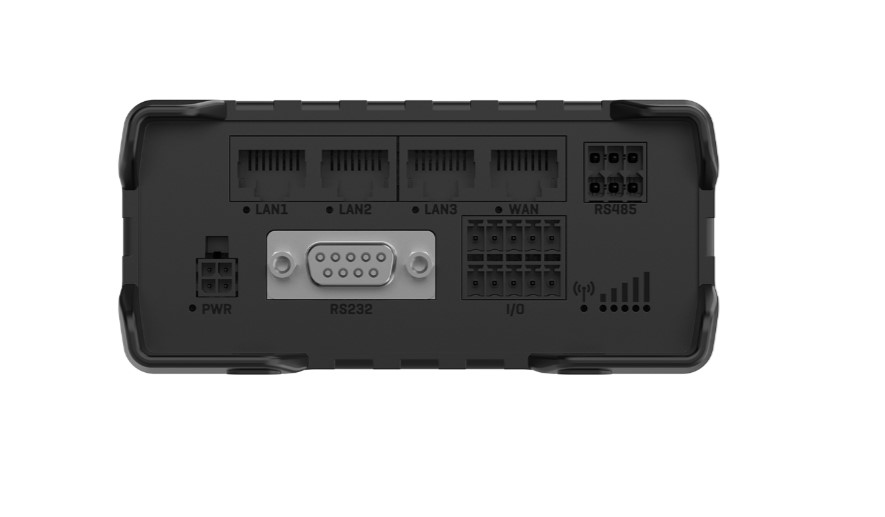

| Ethernet |
|
| Ethernet |
4 x RJ45 ports, 10/100 Mbps: 1 x WAN (configurable as LAN), 1 x LAN |
| Wi-Fi |
|
| Wi-Fi |
802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA) |
| GNSS |
|
| GNSS |
GPS, GLONASS, BeiDou, Galileo and QZSS |
| Inputs/Outputs |
|
| Inputs/Outputs |
1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V),
1 x analog input (0 - 24 V; with 4-20 mA capability),
1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V
detected as logic high),
1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A),
1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)
|
| Serial Interface |
|
| Serial |
RS232, RS485 |
| Status Indicators |
|
| Status LEDs |
1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power |
| Environmental Limits |
|
| Operating temperature |
-40 °C to 75 °C |
| Physical Characteristics |
|
| Housing |
Aluminium housing, plastic panels |
| Dimensions (W x H x D) |
110 x 50 x 100 mm |
| Weight |
287 g |
| Mobile Bands |
|
| 4G (LTE-FDD) |
B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28 |
| 4G (LTE-TDD) |
B38, B39, B40, B41 |
| 3G |
B1, B2, B4, B5, B6, B8, B19 |
| 2G |
B2, B3, B5, B8 |
