| Mobile |
5G Sub-6 GHz SA/NSA 2.4/3.4 Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2);
4G (LTE) – LTE Cat 19 1.6 Gbps DL, Cat 18 200 Mbps UL; 3G – 42 Mbps DL
|
| CPU |
Mediatek, Dual-core, 1.3 GHz, ARM Cortex A53 |
| RAM |
512MB DDR3 |
| Storage |
16MB serial NOR flash, 512MB serial NAND flash |
| Powering options |
4-pin industrial DC power socket, 9 - 50 VDC |
| SIM |
2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional) |

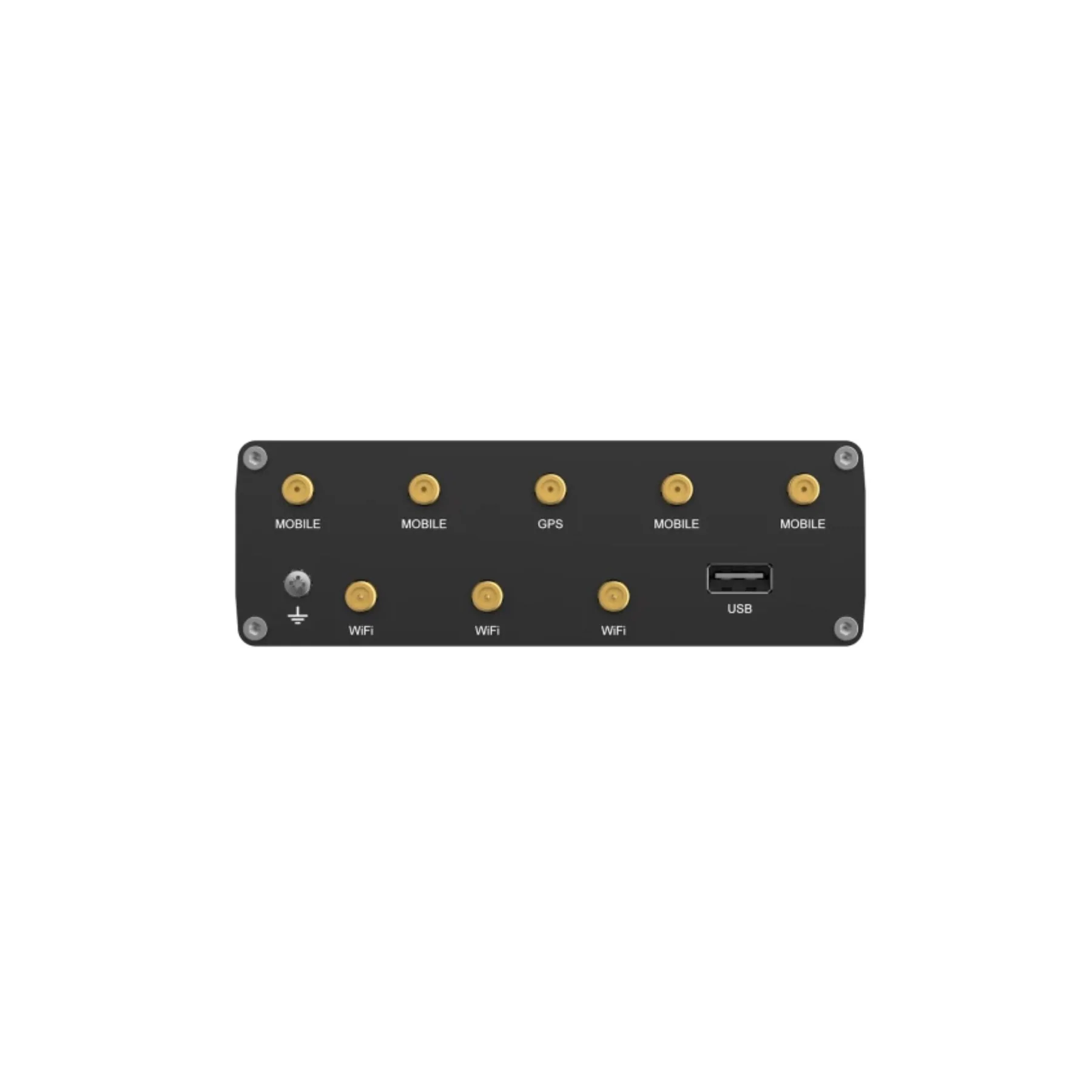

| Antenna connectors |
4 x SMA for Mobile, 3 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |
| Ethernet |

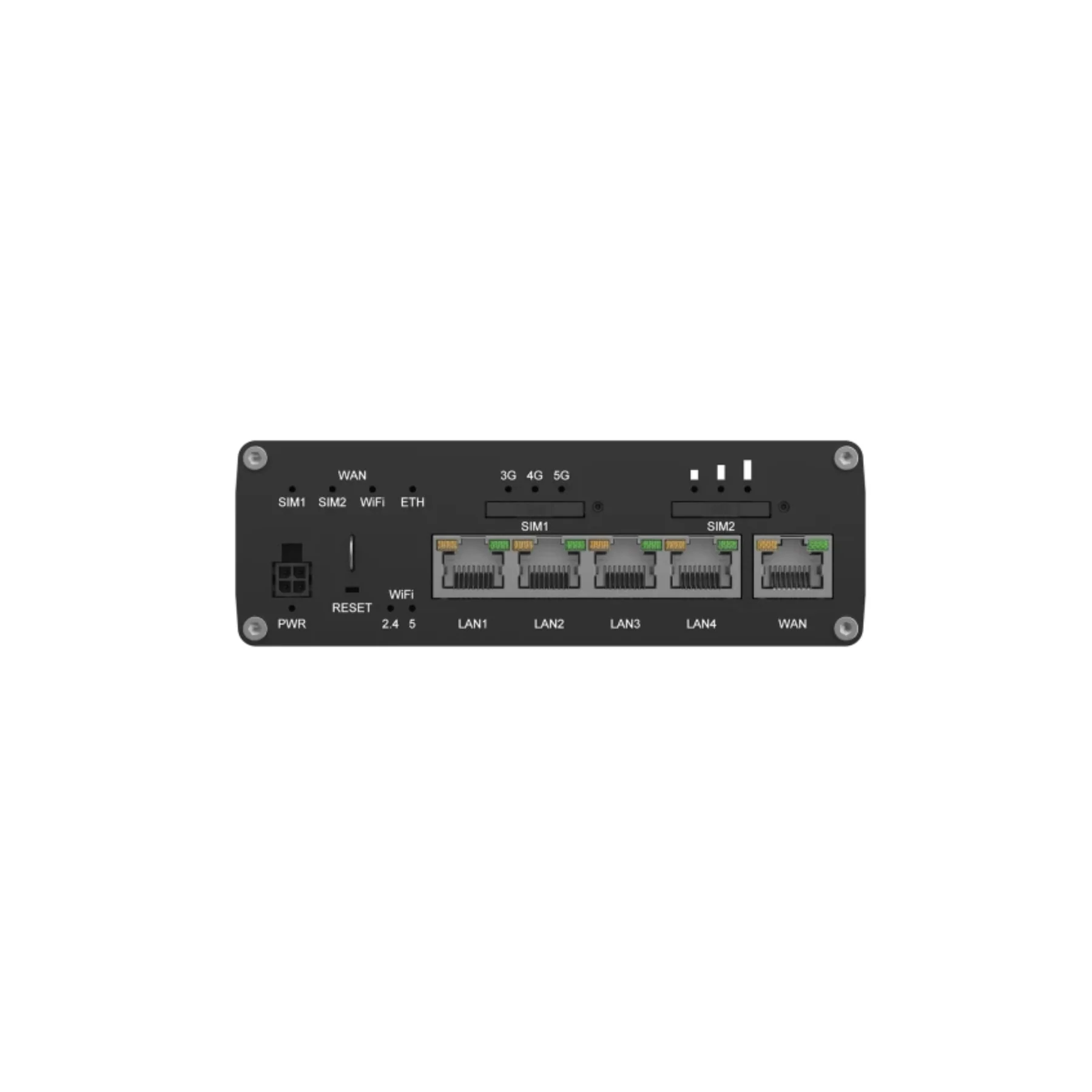

5 x RJ45 ports, 10/100/1000 Mbps: 1 x WAN (configurable as LAN), 4 x LAN |
| WiFi |
802.11b/g/n/ac/ax (Wi-Fi 6) with data transmission rates up to 2402Mbps on 5GHz,
576Mbps on 2.4GHz (Dual Band, MU-MIMO)
|
| GNSS |
GPS, GLONASS, BeiDou, Galileo and QZSS |
| Inputs/Outputs |
1 x Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high,
1 x Digital Output, Open collector output, max output 50 V, 300 mA
|
| Grounding |
1 x Grounding screw |
| Status LEDs |
4 x WAN status LEDs, 3 x Mobile connection type, 3 x Mobile connection strength,
8 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi, 2 x WAN status
|
| Operating temperature |
-40 °C to 75 °C |
| Housing |
Anodized aluminum housing and panels |
| Dimensions (W x H x D) |
130.4 x 42.6 x 103.4 mm |
| Weight |
452 g |
| SOFTWARE |
|
| Operating system |
RutOS (OpenWrt Based Linux OS) |
| Mobile features |
SIM switch, Status, SMS, USSD, Black/White list, Multiple PDN, Band management,
SIM idle protection service, SIM PIN code management, APN, Bridge, Passthrough, Framed routing
|
| Wireless features |
Wi-Fi security, SSID/ESSID, Wi-Fi users, Wireless Connectivity features, Wireless MAC filter,
Wireless QR code generator, TravelMate
|
| Security |
Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control,
SSL certificate generation, 802.1x
|
| VPN and tunneling |
OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard,
Tinc, Tailscale, OpenConnect, EoIP, NetBird
|
| Monitoring and Management |
WEB GUI, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, RMS |
| Cloud solutions |
RMS, Cloud of Things, ThingWorx, Cumulocity, Azure IoT Hub |
| Services |
OPC UA, DNP3, Modbus, Data to Server, Modbus MQTT GATEWAY, DLMS/COSEM |
| Location Tracking |
GNSS, Coordinates, NMEA, NTRIP, Server software, Geofencing |
