Looking for a rugged switch that can handle heavy traffic and power devices at the same time? The Teltonika TSW2000000B0, 20Gbps, Industrial Unmanaged POE+ Ethernet Switch is built for factories, outdoor sites, and any place where reliability matters. When a normal office switch fails under temperature swings or power spikes, your whole line can stop. This switch solves that risk and keeps your cameras, sensors and computers running without a hitch.

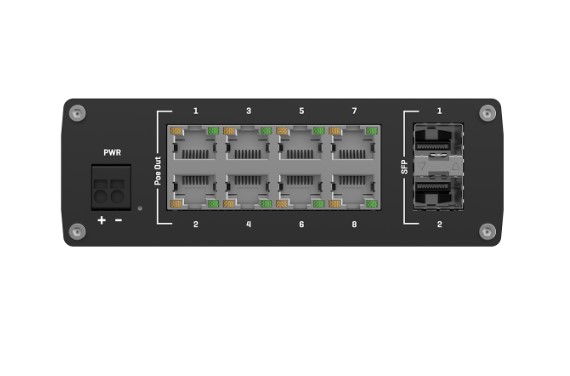

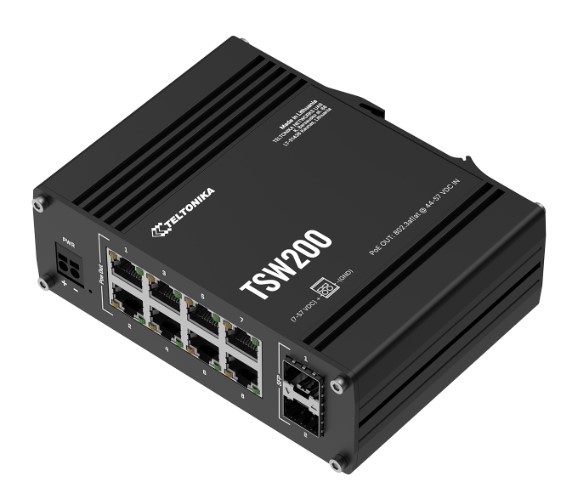

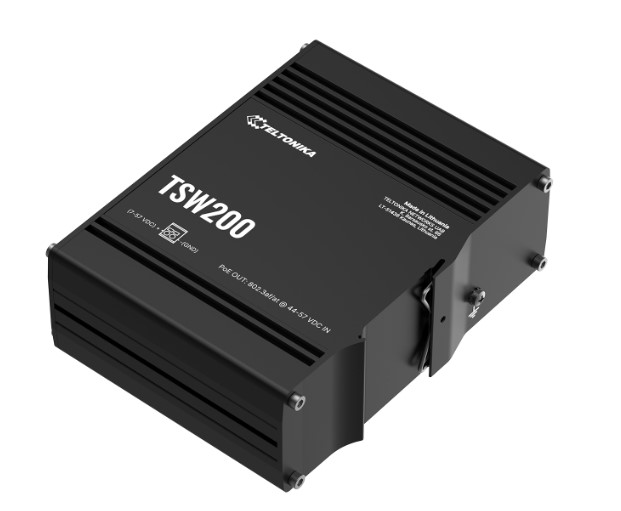

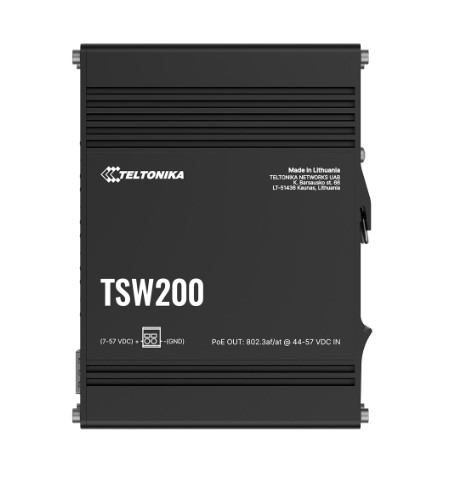

Teltonika TSW2000000B0, 20Gbps, Industrial Unmanaged POE+ Ethernet Switch
The main problem it solves is network downtime caused by harsh environments and insufficient power delivery. In industrial settings a lost connection can mean production loss or safety issues, so uptime is critical. This switch offers non-blocking 20 Gbps bandwidth, 240 W PoE budget and an aluminium case that survives extreme temperatures, giving you a clear, plug-and-play solution.
Key Features
- 8 RJ45 ports, 10/100/1000 Mbps with auto MDI/MDIX.
- 2 SFP slots for fiber uplinks.
- 30 W PoE+ per port, total 240 W budget.
- Non-blocking 20 Gbps bandwidth.
- 128 KB packet buffer and 2K MAC table.
- Jumbo frames up to 9216 bytes.
- Industrial DC input 7-57 V, PoE-Out 44-57 V.
- Power consumption max 245.5 W including PoE.
- IP30 protection, surge rating 1 kV (signal) and 2 kV (AC).
- Full aluminium case, 517 g weight.
- DIN-rail bracket, optional wall-mount kit.
- CE, FCC, UKCA and other global approvals.
Specifications
| Ethernet |
|
| ETH |
8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| Fibre |
|
| Fibre |
2 x SFP ports |
| IEEE 802.3 Series Standards |
|
| Standards |
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3z |
| Industrial Protocols |
|
| Profinet |
Profinet Class A conformance (available with optional order code) |
| PoE Out |
|
| PoE+ Ports |
Port 1 - 8 |
| PoE Max Power per Port (at PSE) |
30 W |
| Total PoE Power Budget (at PSE) |
240 W |
| Performance Specifications |
|
| Bandwidth (Non-blocking) |
20 Gbps |
| Packet Buffer |
128 KB |
| MAC Address Table Size |
2K entries |
| Jumbo Frame Support |
9216 bytes |
| Power |
|
| Connector |
2-pin industrial DC power socket |
| Input Voltage Range |
7 – 57 VDC |
| PoE-Out Input Voltage Range |
44 – 57 VDC |
| Power Consumption |
Idle: 1.81 W / Max: 5.5 W / PoE Max: 245.5 W |
| Surge at AC Mains Power Port |
1kV Line to line; 2kV line to ground, 1.2/50us, IEC 61000-4-5 |
| Surge at Signal Port (Ethernet) |
1kV Line to Ground, 1.2/50us, IEC 61000-4-5 |
| Physical Interfaces |
|
| Ethernet |
8 x RJ45 ports, 10/100/1000 Mbps |
| Fibre |
2 x SFP ports |
| Status LEDs |
1 x Power LED, 16 x ETH status LEDs, 2 x SFP status LEDs |
| Power |
1 x 2-pin industrial DC power socket |
| Other |
1 x Grounding screw |
| Physical Specification |
|
| Casing Material |
Full aluminium housing |
| Dimensions (W x H x D) |
132 x 44.2 x 95.1 mm |
| Weight |
517 g |
| Mounting Options |
Integrated DIN rail bracket; wall mount and flat surface (additional kit needed) |
| Operating Environment |
|
| Operating Temperature |
-40 °C to 75 °C |
| Operating Humidity |
5% to 95% non-condensing |
| Ingress Protection Rating |
IP30 |
| Regulatory & Type Approvals |
|
| Regulatory |
CE, UKCA, CITC, ANRT, FCC, IC, CB, MTCTE |
