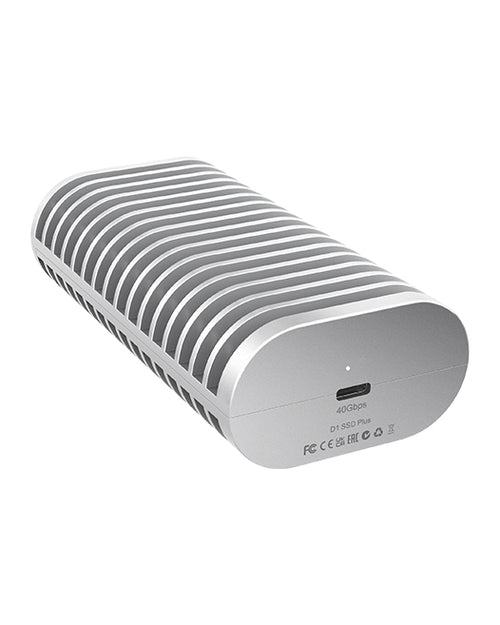

TerraMaster D1 SSD Plus 40Gbps USB4 Type-C Portable High-Speed SSD Enclosure
40Gbps Extreme Speed: Utilizing the USB4 protocol, it delivers up to 40Gbps of transfer bandwidth. Real-world tests show read speeds up to 3853MB/s and write speeds up to 3707MB/s, dramatically enhancing efficiency for 4K/8K video editing and large file transfers.
Wide Protocol Compatibility: Fully compatible with Thunderbolt 5/4/3 and USB4/3.2/3.1/3.0 protocols, enabling seamless switching between Mac and PC. It is the ideal choice for Mac mini storage expansion, boot drives, and as high-speed cache for Windows workstations.
Fanless, Silent Cooling: Features a fully sealed aluminum alloy chassis with a fanless passive cooling design, offering triple the typical heat dissipation area. It maintains low temperatures and silent operation even under full load, ensuring sustained, stable performance.
Compact, Portable & Durable: Designed for M.2 2280 NVMe SSDs, it boasts a compact, lightweight form factor perfect for on-the-go use. The unibody all-metal construction provides strength and efficient heat dissipation, making it suitable for high-intensity mobile creative work.
Built-in Safety Protection: Incorporates additional protective circuitry components to guard against short circuits, voltage surges, and electrostatic discharge (ESD), ensuring stable data transmission and device safety.
Features:
- 1 x NVMe M.2 2280 disk slot
- Supports PCIe3.0/4.0/5.0 NVMe M.2 2280 SSD
- Supports up to 8 TB internal raw capacity
- USB4 40Gbps connectivity
- Up to 3641 MB/s reading speed
- Up to 3498 MB/s writing speed
- Supports Mac OS and Windows 11 (24H2 or later version)
- Noiseless operation with USB 5V power supply
Specifications:
| Storage |
|
| Disk Slot Number |
1 |
| Compatible Disk Types |
PCle3.0/4.0/5.0 NVMe M.2 2280 SSD |
| File System |
NTFS, APFS, Mac OS, FAT32, EXT4, exFAT |
| Maximum Internal Raw Capacity |
8 TB (8TB SSD * 1) |
| RAIDs Supported |
SINGLE DISK |
| USB |
USB4 40Gbps |
| Reading/writing Speed (max.) |
|
| Reading Speed (max.) |
3641 MB/s (Samsung 990 Pro 4TB M.2 SSD*1) |
| Writing Speed (max.) |
3498 MB/s (Samsung 990 Pro 4TB M.2 SSD*1) |
| Appearance |
|
| Size (H*W*D) |
112.5 x 60.0 x 33.0 mm |
| Packaging Size (H*W*D) |
152.0 x 65.0 x 139.0 mm |
| Weight |
net weight: 246 g, Gross Weight: 499 g |
| Others |
|
| System fan |
N/A |
| Fan mode |
/ |
| Noise Level |
Noiseless |
| Power Supply |
|
| Power Supply |
USB 5V |
| AC Input Voltage |
/ |
| Current Frequency |
/ |
| Power Consumption |
7.5 W (Built-in Samsung 990 Pro 4TB M.2 SSD in read/write state) |
| 5.5 W (Built-in Samsung 990 Pro 4TB M.2 SSD in hibernation) |
| Environment Temperature |
|
| Working Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature |
-20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity |
5% ~ 95% RH |
| Supported OS |
Mac OS、Windows 11(24H2 or later version) |
| Certificate |
CE, FCC, CCC, KC |
| Environment |
RoHS compliance |
| Package Contents: |
Host unit (x1) |
| USB4 Cable C to C 0.3m (x1) |
| Quick Installation Guide (x1) |
| Carry bag (x1) |
| Limited Warranty Note (x1) |
