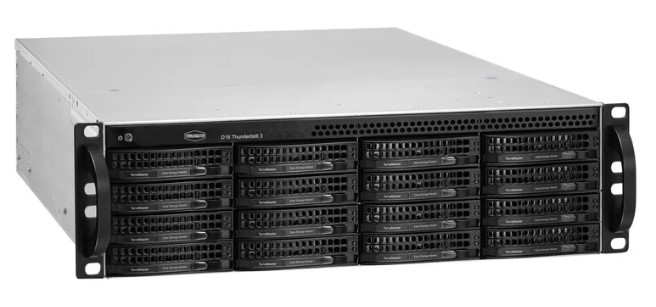

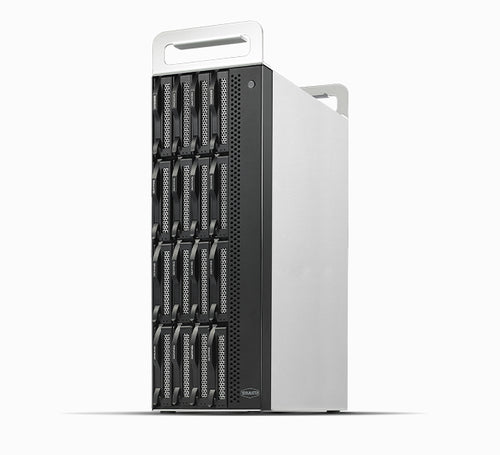

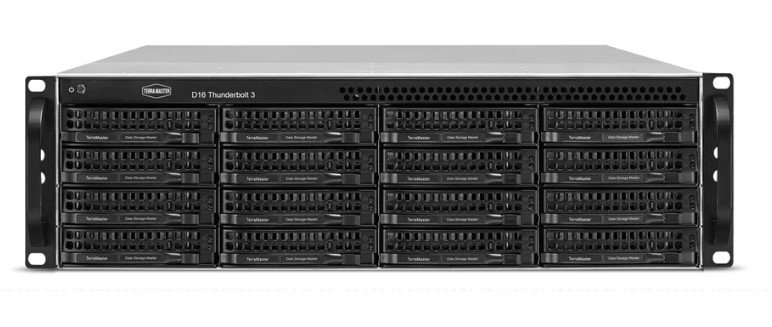

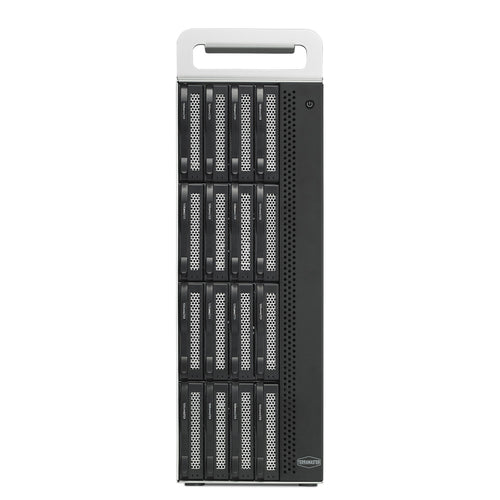

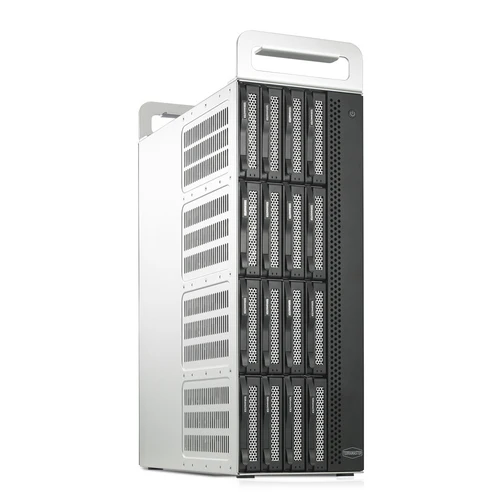

TerraMaster D16 Thunderbolt3, 40Gbps 16-Bay Professional-Grade DAS
Veritable Hardware RAID Controller: D16-Thunderbolt3 is equipped with the latest dedicated RAID chip and high-speed cache memory to complete all RAID processing, which can provide true high-performance hardware RAID protection to ensure stable and high-performance data transmission. It issuitable for a video editor that works with real-time multi-channel HD and 8K video streams. Starting from March 26th, 2021, Mac with M1 security chip was fully supported.

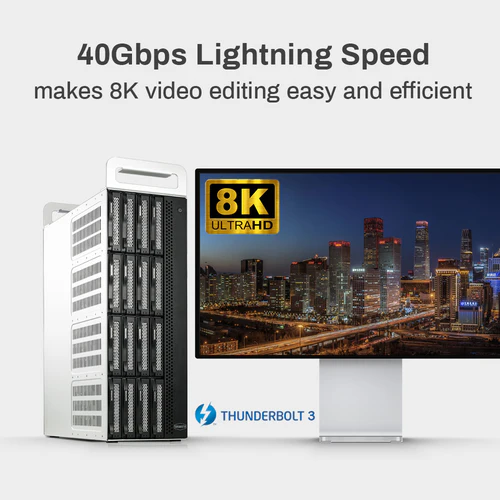

Lightning Fast Dtorage for Video Editing: Drawing on a pair of Thunderbolt 3 interfaces (40 Gbps) and a hardware RAID controller, the D16 Thunderbolt 3 can operate at transfer speeds of 2100 MB/s in RAID 0 array mode with 16 SSDs. Under RAID 5, the device can achieve a speed of 1800 MB/s. It works with the computers with Thunderbolt 3 or 4 port, NOT compatible with USB port.

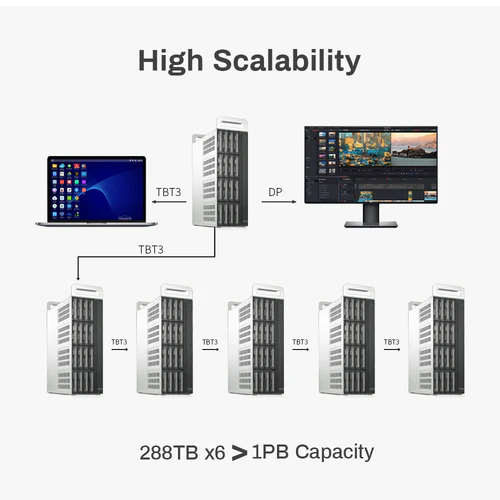

Incredible Capacity up to 1PB: Multiple hardware RAID: RAID 0/1/5/6/10/50, JBOD, Single. Support up to 310TB storage capacity (20TB x 16, in RAID 0), hard drives not included, users need to purchase as needed. Support both 3.5” SATA disks and 2.5” SSDs. Other storage devices can be daisy-chained via Thunderbolt 3 – so six linked D16 Thunderbolt 3 units can achieve an enormous 1PB of on-site storage.

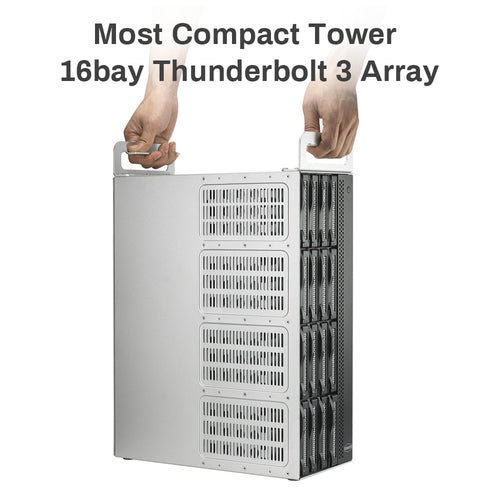

The D16 is both quiet and compact enough to be placed on a desktop in the working area, with a similar footprint to a typical tower PC. Even under full load, the D16’s high-quality silent fan and specially optimized interior structure help increase the internal air flow of the device to reduce the disk temperature, as well as greatly reducing resonance and noise. D16 has a specially designed handle that makes it easy to carry, facilitating the work of video production teams.
Features:
- 16 disk slots supporting 3.5" SATA, 2.5" SATA HDD and 2.5" SATA SSD

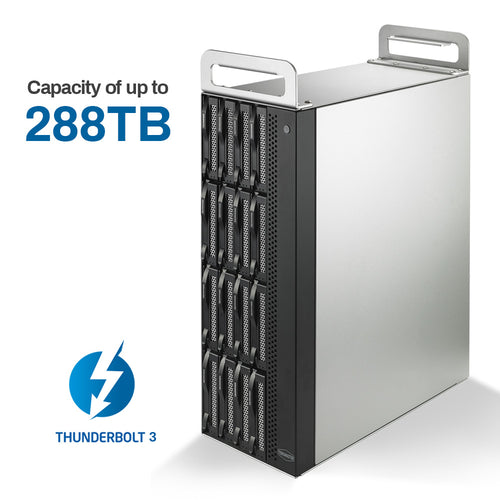

- Maximum internal raw capacity of 288 TB
- Supports SINGLE DISK, JBOD, RAID 0, RAID 1, RAID 5, RAID10, RAID 6 and RAID 50
- Hardware RAID and RAID Manager Software
- RAID online expansion, migration and auto-rebuilding

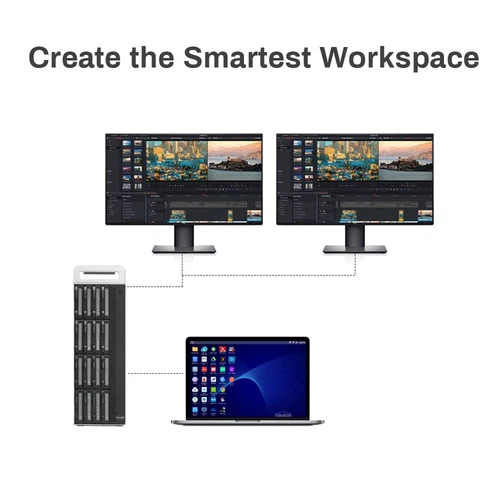

- 40Gb Thunderbolt 3 data transmission and daisy chain
- Reading speed up to 2817MB/sec
- Writing speed up to 2022MB/sec
- 550W power supply with 100V to 240V AC input
Specifications:
| Disk Slot Number |
16 |
| Compatible Disk Types |
3.5" SATA |
| |
2.5" SATA HDD |
| |
2.5" SATA SSD |
| File System |
NTFS, APFS, Mac OS,FAT32,EXT4,exFAT |
| Maximum Internal Raw Capacity |
288 TB (18 TB drive x 16) (Capacity will vary along with the RAID type) |
| RAIDs Supported |
SINGLE DISK,JBOD,RAID 0,RAID 1,RAID 5,RAID10,RAID 6,RAID 50
Note: Mac 0S computers do not support RAlD online expansion and migration. |
| Hardware RAID |
√ |
| RAID Manager Software |
√ |
| RAID Manager Software Language |
English, Chineses, Japanese |
| RAID Online Expansion |
√ |
| RAID Migration |
√ |
| RAID Auto-rebuilding |
√ |
| HDD S.M.A.R.T. Inspection |
√ |
| Sector Inspection and Parity Check |
√ |
| SSD Cache |
√ |
| Daisy Chain |
√ |
| HDD NCQ Technology |
√ |
| Alert Notice |
√ |
| Event Log |
√ |

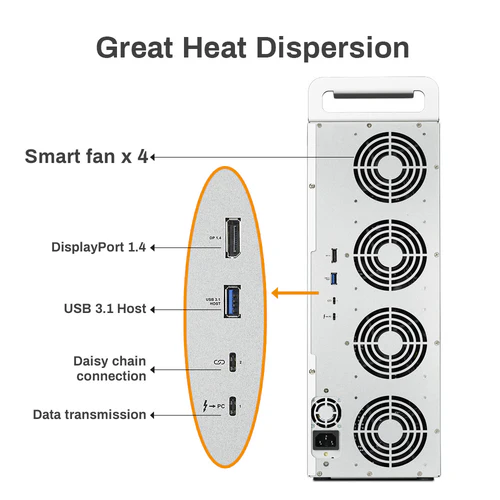

| External Ports |
|
| Thunderbolt Data Transmission |
40Gb Thunderbolt 3 x 1 |
| Thunderbolt Daisy Chain |
40Gb Thunderbolt 3 x 1 |
| USBhost |
USB 3.1 Gen2 host (Use to connect USB storage device) |
| DP Interface |
DP 1.4 x 1 |
| Power Socket |
AC IN 220V |
| Appearance |
|
| Size (H*W*D) |
348*160*498 mm |
| Packaging Size (H*W*D) |
455*275*616 mm |
| Others |
|
| System fan |
90mm x90mm x 25mm 4PCS |
| Noise Level |
55dB(A) (Noise testing environment: Fully loaded Seagate EXOS 8TB ST8000NM000A
hard drive(s) in the reading state)
|
| Power Supply |
|
| Power Supply |
550W |
| AC Input Voltage |
100V to 240V AC |
| Current Frequency |
50/60 HZ, Single Phase |
| Power Consumption |
230W(Fully loaded Seagate EXOS 8TB ST8000NM000A hard drive(s) in the reading state) |
| Environment Temperature |
|
| Working Temperature |
5°C ~ 40°C (40°F ~ 104°F) |
| Storage Temperature |
-20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity |
5% ~ 95% RH |
| Supported OS |
Mac OS |
| Environment |
RoHS compliance |
| Package Contents: |
Host unit (x1) |
| |
Power cord (x1) |
| |
Thunderbolt 3 cable (40Gbps) 2 Meter (x1) |
| |
Quick Installation Guide (x1) |
| |
/ |
| |
Screws (several) |
| |
Limited Warranty Note x 1 |
