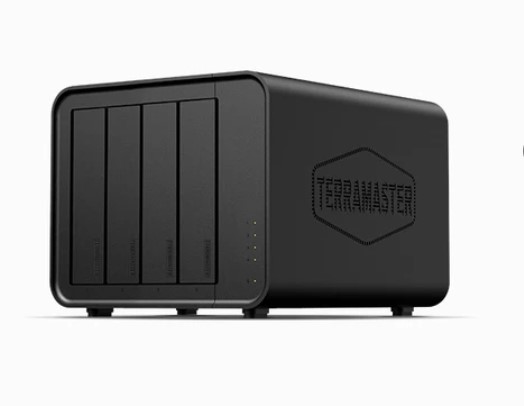

TerraMaster D4-320, USB 3.2 Gen 24-Bay USB Single Disk Enclosure DAS
High-Speed Data Transmission: Utilizing the USB 3.2 Gen2 protocol, the D4-320 hard drive enclosure achieves data transfers up to 10Gbps. With four hard drives installed, it delivers read/write speeds up to 1,016 MB/s; even a single SSD reaches 510 MB/s read speed. It supports individual drives up to 32TB for a total capacity of 128TB, and is compatible with 3.5-inch SATA HDDs, 2.5-inch SATA HDDs, and 2.5-inch SATA SSDs.
Plug-and-Play Compatibility: The D4-320 USB storage supports 4 individual disks (NO RAID function), and is plug-and-play, eliminating the need for drivers. It is highly compatible with MAC, Windows, and Linux operating systems. The USB Type-C interface supports various computer interfaces, including USB 3.0, USB 3.1, USB 3.2, Thunderbolt 3, and Thunderbolt 4.
Hot Swappable Convenience: The D4-320 HDD enclosure supports hot swapping, allowing users to replace hard disks without powering off the device. This feature enhances convenience and efficiency in data transfer processes.

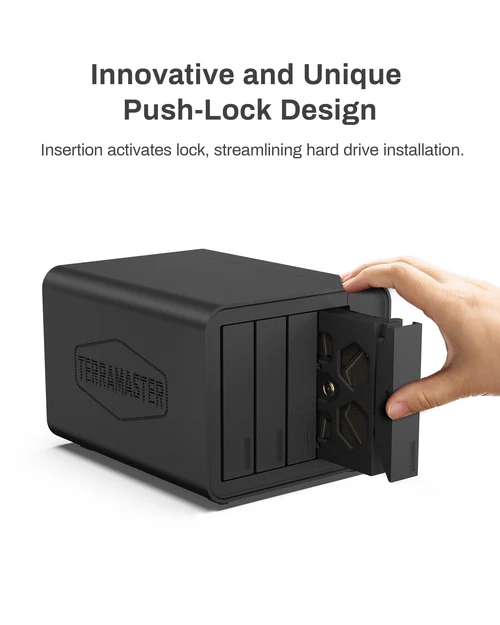

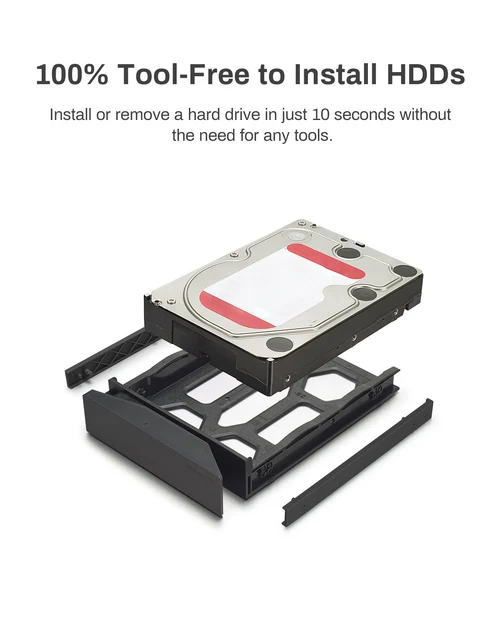

Tool-Free Hard Drive Management: The D4-320 features a tool‑free drive tray for easy installation and removal. Its unique Push‑lock design automatically secures the tray upon insertion, preventing drives from dislodging or disconnecting.
Features:
- 4 Disk Slot Number
- 3.5" SATA HDD Compatible Disk Types
- 2.5" SATA HDD and 2.5" SATA SSD support
- 128 TB (32 TB drive x 4) Maximum Internal Raw Capacity
- Drive Hot Swap supported
- USB3.2 Type-C gen2 10Gbps
- Read：1016MB/s ( SSD* 4)
- Write：960MB/s ( SSD*4 )

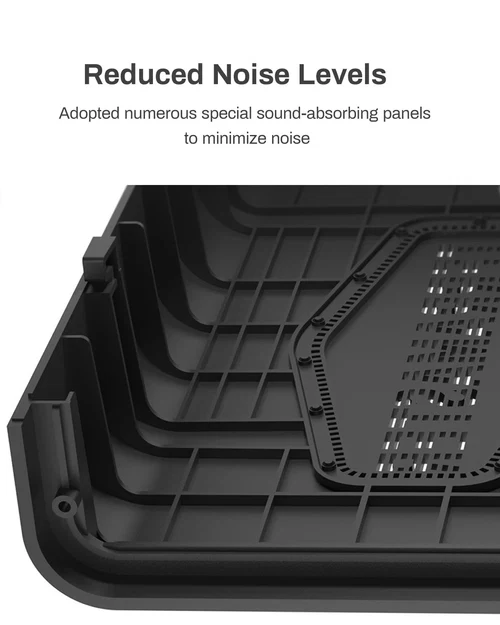

- 21.0dB(A) Noise Level
- Windows OS、Mac OS、Linux Supported OS
Specifications:
| Storage |
|
| Disk Slot Number |
4 |
| Compatible Disk Types |
3.5" SATA HDD |
| |
2.5" SATA HDD |
| |
2.5" SATA SSD |
| File System |
NTFS, APFS, Mac OS,FAT32,EXT4,exFAT |
| Maximum Internal Raw Capacity |
128 TB (32 TB drive x 4) |
| RAIDs Supported |
SINGLE DISK |
| Drive Hot Swap |
√ |
| HDD Sleep |
√ |

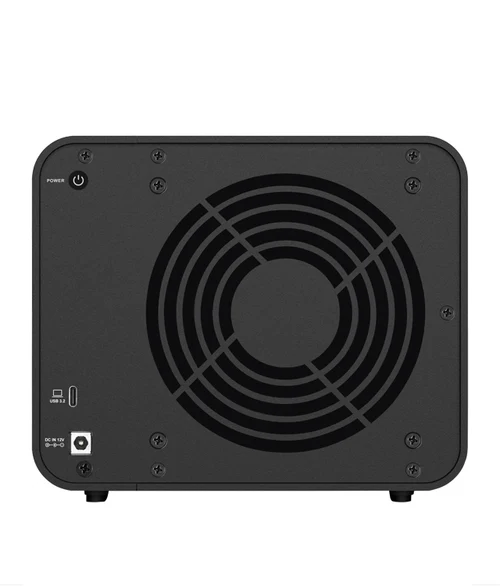

| External Ports |
|

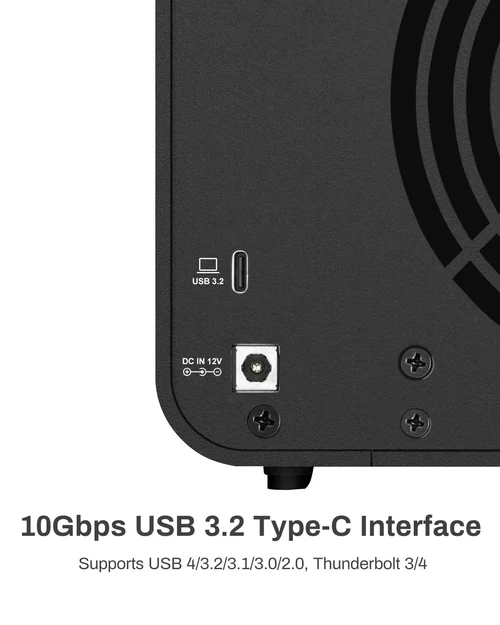

| USB |
USB3.2 Type-C gen2 10Gbps |
| Power Socket |
DC IN 12V |
| Reading/writing Speed (max.) |
|
| Reading Speed (max.) |
Read：560MB/s ( SSD* 1 ); Read：1016MB/s ( SSD* 4)； |
| Writing Speed (max.) |
Write：520MB/s ( SSD*1 ); Write：960MB/s ( SSD*4 )； |
| Appearance |
|
| Size (H*W*D) |
222 x 179 x 154 mm |
| Packaging Size (H*W*D) |
300 x 275 x 186 mm |
| Weight |
net weight: 1.9Kg Gross Weight:3.1 Kg |
| Others |
|

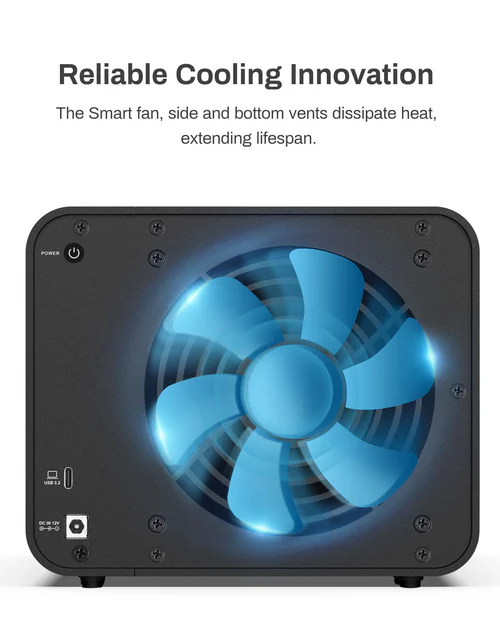

| System fan |
120 x 120 x 25mm 1PCS |
| Fan mode |
Smart |
| Noise Level |
21.0dB(A) |
| Power Supply |
|
| Power Supply |
72 W |
| AC Input Voltage |
100V to 240V AC |
| Current Frequency |
50/60 HZ, Single Phase |
| Power Consumption |
40.8 W(Access), 3.7 W (Hibernation) |
| Environment Temperature |
|
| Working Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature |
-20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity |
5% ~ 95% RH |
| Supported OS |
Windows OS、Mac OS、Linux |
| Certificate |
CE, FCC, CCC, KC |
| Environment |
RoHS compliance |
| Package Contents: |
Host unit (x1) |
| |
Power cord (x1) |
| |
USB Cable C to Type-C(10Gb) (0.8m x1) |
| |
Quick Installation Guide (x1) |
| |
Power adapter (x1) |
| |
Screws (several) |
| |
Limited Warranty Note x 1 |
