TerraMaster D4 SSD, 4-bay USB 4 40Gbps All SSD Enclosure DAS
Blazing-Fast USB4 Performance: Utilizing the USB4 protocol, it delivers up to 40Gbps of bandwidth. In real-world tests (with four Samsung 990 PRO 4TB SSDs in RAID 0), it achieves read speeds up to 3257MB/s and write speeds up to 3192MB/s, enabling seamless handling and editing of 8K video footage.
All-Flash Architecture with 32TB Max Capacity: Features four M.2 NVMe SSD bays, supporting up to 8TB per drive for a maximum of 32TB of all-flash storage. Purpose-built for high-performance scenarios like media creation, video production, large game libraries, and as a Mac OS boot drive.

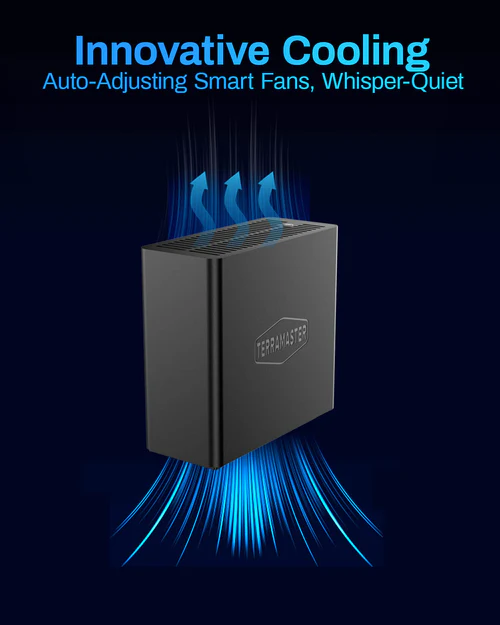

Intelligent, Quiet Cooling: Equipped with a second-generation intelligent temperature-controlled fan and four internal sensors that adjust speed based on load, ensuring sustained high performance. Optimized airflow keeps noise levels low even at full load, with standby noise below 19dB(A)—perfect for quiet creative environments.
Wide Voltage Input & Power Protection: Supports 12V-20V wide voltage input, allowing it to be powered by most laptop (19V) adapters for greater portability. Built-in advanced power protection and automatic recovery from unexpected power outages safeguard your device and data, ideal for unattended operation with servers/NAS.
Extensive Protocol Compatibility: Fully compatible with Thunderbolt 3/4/5 and USB4/3.2/3.1/3.0 protocols for seamless switching between Mac and PC. It's the ideal choice for expanding Mac mini storage or serving as high-speed cache for Windows workstations.
Features:
- 4 x PCIe3.0/4.0/5.0 NVMe M.2 2280 SSD slots
- Maximum internal raw capacity up to 32 TB

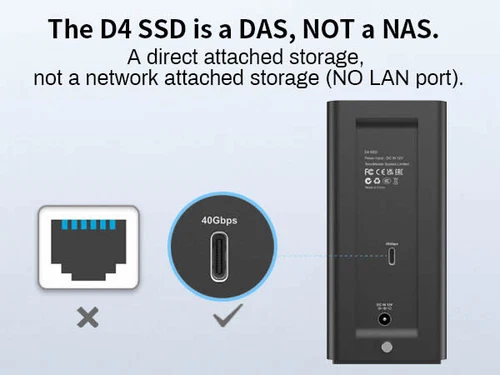

- USB4 40Gbps interface

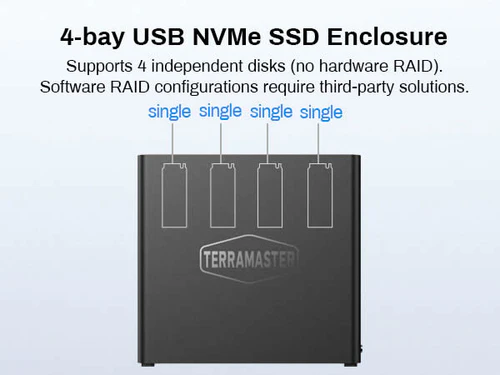

- Supports SINGLE DISK RAID mode
- Reading speed up to 3257 MB/s
- Writing speed up to 3192 MB/s
- Smart fan mode with 19.0 dB(A) noise level
- 100V to 240V AC input voltage
- Supports Mac OS and Windows 11
Specifications:
| Disk Slot Number |
4 |
| Compatible Disk Types |
PCle3.0/4.0/5.0 NVMe M.2 2280 SSD |
| File System |
NTFS, APFS, Mac OS, FAT32, EXT4, exFAT |
| Maximum Internal Raw Capacity |
32 TB (8TB SSD * 4) |
| RAIDs Supported |
SINGLE DISK |
| USB |
USB4 40Gbps |
| Reading Speed (max.) |
3257 MB/s (Samsung 990 Pro 4TB*4_RAID0); 1600MB/s (Samsung 990 Pro 4TB*1) |
| Writing Speed (max.) |
3192 MB/s (Samsung 990 Pro 4TB*4_RAID0); 1500MB/s (Samsung 990 Pro 4TB*1) |

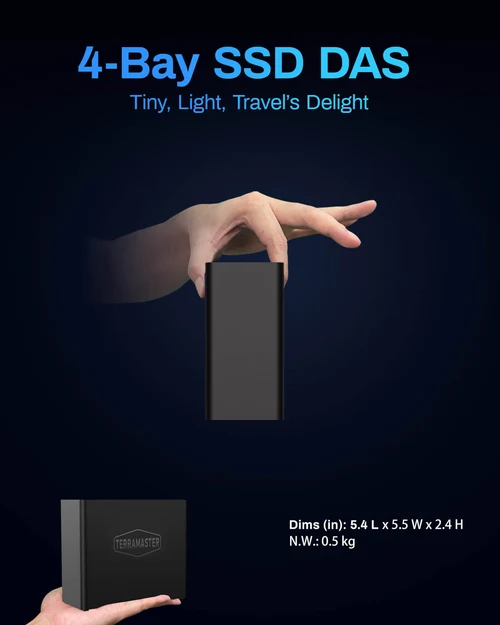

| Size (H*W*D) |
138 x 60 x 140 mm |
| Packaging Size (H*W*D) |
185 x 172 x 152 mm |
| Weight |
net weight: 392g, Gross Weight: 891g |
| System fan |
50 x 50 x 10mm 2PCS |
| Fan mode |
Smart |
| Noise Level |
19.0 dB(A) (Using M.2 SSDs in standby mode; Test environment noise: 17.3dB(A); Test distance: 1m) |
| Power Supply |
24 W |
| AC Input Voltage |
100V to 240V AC |
| Current Frequency |
50/60 Hz, Single Phase |
| Power Consumption |
15.0 W (Fully loaded Seagate 2TB M.2 SSDs in read/write state) |
| 6.0 W (Fully loaded Seagate 2TB M.2 SSDs in hibernation) |
| Working Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature |
-20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity |
5% ~ 95% RH |
| Supported OS |
Mac OS、Windows 11(24H2 or later version) |
| Certificate |
CE, FCC, CCC, KC |
| Environment |
RoHS compliance |
| Package Contents: |
Host unit (x1) |
| USB4 Cable C to C 0.8m (x1) |
| Quick Installation Guide (x1) |
| Power adapter (x1) |
| Screws (several) |
| Limited Warranty Note (x1) |
