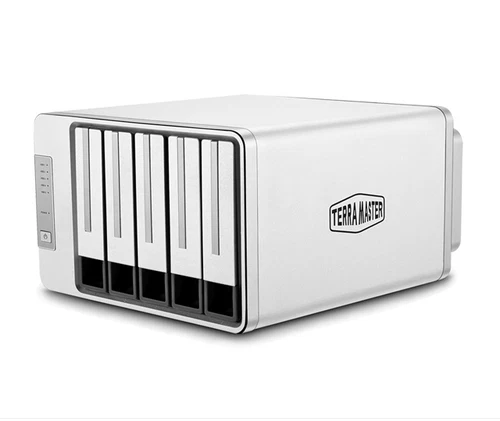

TerraMaster D5-310, 3.2 5Gbps HDD Enclosure 5-Bay USB Hard Drive Array

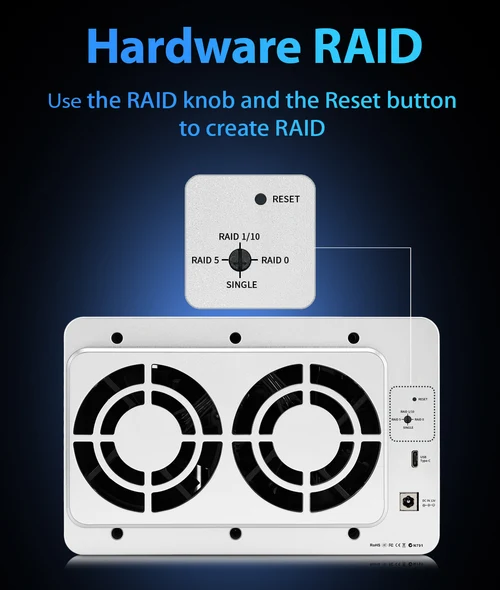

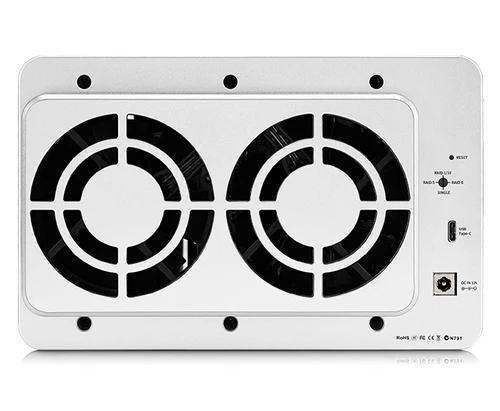

Hardware RAID with Flexible Modes: The D5‑310 features a dedicated hardware RAID controller, operated by a physical knob on the rear panel for easy switching between RAID 5, 0, 1, 10, and Single modes. This true hardware-based design delivers higher performance and reliability than software RAID. The hot‑spare feature also enhances data protection by automatically rebuilding arrays in RAID 1, 5, or 10 configurations when a drive fails, minimizing downtime and data‑loss risk.
Fully Compatible with Multiple Operating Systems: The D5-310 works seamlessly with Windows, macOS, and Linux without requiring any additional drivers. It also supports connections to servers, smart TVs, and set-top boxes, offering true plug-and-play usability in multi-platform environments.
High-Speed USB 3.1 Gen 1 Interface: With a transfer speed of up to 5Gbps, the D5-310 delivers actual read/write performance of 220MB/s. This enables fast file transfers—such as moving a 1GB file in about 4 seconds—reducing wait times for demanding workflows.

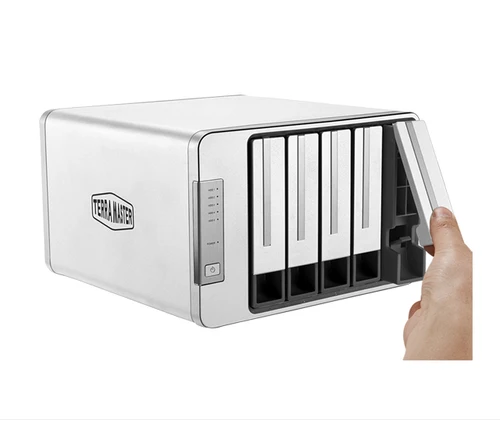

Massive 160TB Storage Capacity: Supporting up to five 3.5-inch/2.5-inch SATA HDDs or SSDs, the D5-310 offers a total capacity of 160TB (using 32TB drives). Its tool-free drive bays make installation and replacement simple, streamlining storage expansion.
Features:
- 5 x 3.5" SATA HDD disk slots

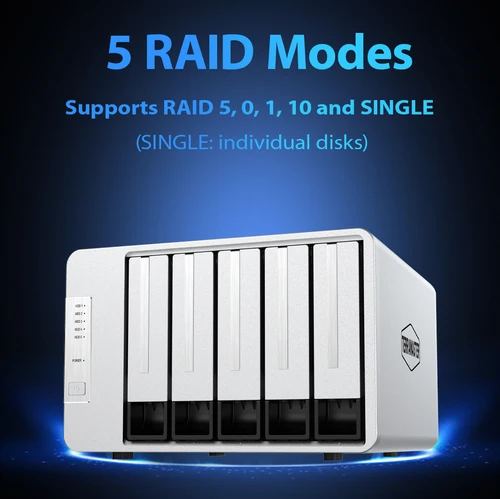

- Supports SINGLE DISK, RAID 0, RAID 1, RAID 5 and RAID 10
- Maximum internal raw capacity of 160TB
- USB-C x 1 data transmission interface
- Supports NTFS, APFS, Mac OS, FAT32, EXT4 and exFAT
- RAID5 read speed up to 248MB/s
- PWM Smart Temperature Control fan mode
- Aluminum Alloy enclosure material
- 227 x 225 x 136 mm size
Specifications:
| Storage |
| Disk Slot Number |
5 |
| Compatible Disk Types |
3.5" SATA HDD |
| 2.5" SATA SSD |
| RAIDs Supported（RAID hardware switch mode） |
SINGLE DISK,RAID 0,RAID 1,RAID 5,RAID 10 |
| RAID Expansion/Migration |
/ |

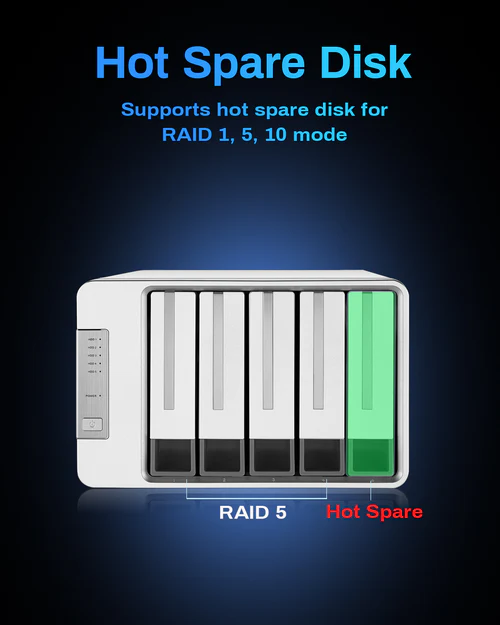

| RAID Hot Spare |
√（The hard drives added in RAID 1/5/10 modes are the listed hot spare drives.） |
| Maximum Internal Raw Capacity |
160TB(32 TB HDD x 5, RAID 0 Array) |
| Fan mode |
PWM Smart Temperature Control |
| Hard Drive S.M.A.R.T. |
√ |
| TRIM |
/ |
| External Ports |
| Data transmission interface |
USB-C x 1 |
| Data transmission cable |
USB Cable A to C |
| Hard Drive Format |
NTFS,APFS,Mac OS,FAT32,EXT4,exFAT |
Reading/writing Speed (max.)
Test conditions:
The test drives are 5 Western Digital 8TB WD80EFBX;
the test computer is a Mac mini with Apple M4 chip,
running macOS 15.1.1;
the test software is AJA System Test Lite. |
RAID5 Mode,Write: 231MB/s;Read: 248MB/s |
| RAID0 Mode,Write: 238MB/S;Read: 244MB/s |
| RAID10 Mode,Write: 241MB/s;Read: 248MB/s |
| RAID1 Mode,Write: 188MB/s;Read: 187MB/s |
| SINGLE Mode,Write: 188MB/s;Read: 187MB/s |
| Operating System |
| Supported OS |
Windows 7.8.10.11,Windows Server,Mac OS, Linux Ubuntu,KylinV10 SP1 |
| RAID Manager Client |
Supports Windows 7, 8, 10, 11, and Windows Server |
| Not supported on Mac OS, Linux Ubuntu, and Kylin V10 SP1. |
| Appearance |
| Size (H*W*D) |
227 x 225 x 136 mm |
| Weight |
net weight: 2.16Kg Gross Weight: 3.64 Kg |
| Enclosure Material |
Aluminum Alloy |
| Power Supply |
| AC Input Voltage |
DC 12V (90W) |
| Current Frequency |
50/60 HZ, Single Phase |
| Power Consumption |
45.5W (5 x 8TB Western Digital WD80EFBX hard drives in read/write state) |
| 5.2W (5 x 8TB Western Digital WD80EFBX hard drives in hibernation) |
| Working Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Relative Humidity |
5% ~ 95%RH |
| Storage Temperature |
-20°C ~ 60°C (-5°F ~ 140°F) |
| Certificate |
CCC、CE、FCC、UL |
| Environmental Protection and Packaging |
| Environment |
RoHS compliance |
| Package Contents: |
Host unit (x1) |
| Quick Installation Guide (x1) |
| Power adapter (x1) |
| Power cord (x1) |
