TerraMaster D5-Hybrid, 5-Bays USB 3.2 Gen 2 Hybrid DAS Enclosure
Industry’s First Hybrid DAS Solution: Combines two 3.5-inch SATA HDD/SSD bays with three M.2 NVMe SSD bays. Manually store active "hot data" on the high-speed SSDs for performance, and archive "cold data" on the high-capacity HDDs for economy, achieving the optimal balance.
10Gbps High-Speed Transfer: Features USB 3.2 Gen2 protocol with 10Gbps bandwidth. Delivers read speeds up to 980MB/s (with NVMe SSDs) and 960MB/s (with SATA SSDs), significantly accelerating large file workflows.
Unique 2+3 Storage Modes: The two SATA bays support RAID 0, 1, JBOD, or Single modes for flexible, large-capacity storage. The three M.2 SSD bays operate in single-disk mode, dedicated to high-speed tasks. Supports up to 32TB HDDs and 8TB SSDs, for a maximum total capacity of 88TB.
Tool-Free & Secure Push-Lock Design: Features tool-free drive trays and a unique Push-Lock mechanism that automatically secures drives upon insertion, preventing disconnection. Drive installation or swap takes under 10 seconds.
Intelligent Cooling & Ultra-Quiet 19dB Operation: An intelligent temperature-controlled fan and dedicated M.2 SSD airflow channel maintain optimal temperatures. Advanced noise-dampening design results in standby noise as low as 19dB(A), 50% quieter than previous generations.
Broad Compatibility & Built-in Protection: USB-C interface ensures compatibility with Windows, macOS, Linux, and Thunderbolt 3/4. Includes advanced power protection to safeguard against incompatible power sources.
Features:
- 2 x 3.5" SATA HDD disk slots with support for 2.5" SATA HDD and SSD
- 3 x M.2 2280 NVMe slots supporting PCle3.0/4.0/5.0
- 88 TB maximum internal raw capacity
- Supports SINGLE DISK, JBOD, RAID 0 and RAID 1
- Hardware RAID with RAID Auto-rebuilding
- USB3.2 Type-C gen2 10Gbps interface
- Read speed up to 980MB/s with NVMe M.2 SSD
- Write speed up to 956MB/s with SSD RAID 0
- Supports Windows OS, Mac OS, Linux
Specifications:
| Storage |
|
| Disk Slot Number |
2 |
| Compatible Disk Types |
3.5" SATA HDD |
| 2.5" SATA HDD |
| 2.5" SATA SSD |
| M.2 2280 NVMe Slot |
3(PCle3.0/4.0/5.0) |
| File System |
NTFS, APFS, Mac OS,FAT32,EXT4,exFAT |
| Maximum Internal Raw Capacity |
88 TB (32 TB drive x 2 + 8 TB drive x 3) (Capacity will vary along with the RAID type) |
| RAIDs Supported |
SINGLE DISK,JBOD,RAID 0,RAID 1（Only HDD1 and HDD2 support RAID array creation，the rest operate in Single mode.） |
| Hardware RAID |
√ |
| RAID Auto-rebuilding |
√ |
| HDD Sleep |
√ |

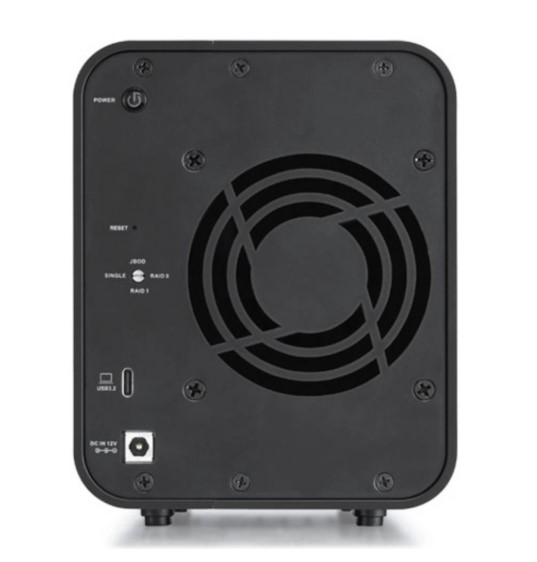

| External Ports |
|
| USB |
USB3.2 Type-C gen2 10Gbps |
| Power Socket |
DC IN 12V |
| Reading/writing Speed (max.) |
|
| Reading Speed (max.) |
Read：565MB/s ( HDD*2_RAID0 ); Read：960MB/s ( SSD*2_RAID0 )； |
| Reading Speed (max.) |
Read：980MB/s (NVMe M.2 SSD*1 ) |
| Writing Speed (max.) |
Write：524MB/s ( HDD*2_RAID0); Write：956MB/s ( SSD*2_RAID0 )； |
| Writing Speed (max.) |
Write：880MB/s (NVMe M.2 SSD *1 ) |
| Appearance |
|
| Size |
222 x 119 x 154 mm |
| Packaging Size |
258 x 220 x 170 mm |
| Weight |
Net weight: 1.3 Kg Gross Weight: 2.1 Kg |
| Others |
|
| System fan |
80 mm x 80 mm x25mm (x 1) |
| Fan mode |
Smart |
| Noise Level |
19.0 dB(A) ( Using 2 SATA HDDs/SSDs in standby mode) |
| The microphone is placed at a distance of 1 meter from the device. |
| Background noise: 17.3 dB(A) |
| Power Supply |
|
| Power Supply |
40 W |
| AC Input Voltage |
100V to 240V AC |
| Current Frequency |
50/60 HZ, Single Phase |
| Power Consumption |
30 W(Fully loaded Seagate 22TB ST22000NM001E hard drive(s) and SAMSUNG 980 NVMe M.2 SSD in read/write state ) |
| 8.1 W (Fully loaded Seagate 22TB ST22000NM001E hard drive(s) and SAMSUNG 980 NVMe M.2 SSD in hibernation) |
| Environment Temperature |
|
| Working Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature |
-20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity |
5% ~ 95% RH |
| Supported OS |
Windows OS、Mac OS、Linux |
| Warranty |
2 years |
| Certificate |
CE, FCC, CCC, KC |
| Environment |
RoHS compliance |
| Package Contents: |
Host unit (x1) |
| USB Cable C to Type-C (10Gb) (0.8m x1) |
| Quick Installation Guide (x1) |
| Power adapter (x1) |
| Screws (several) |
| Limited Warranty Note x 1 |
