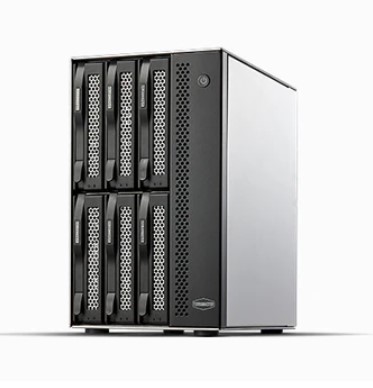

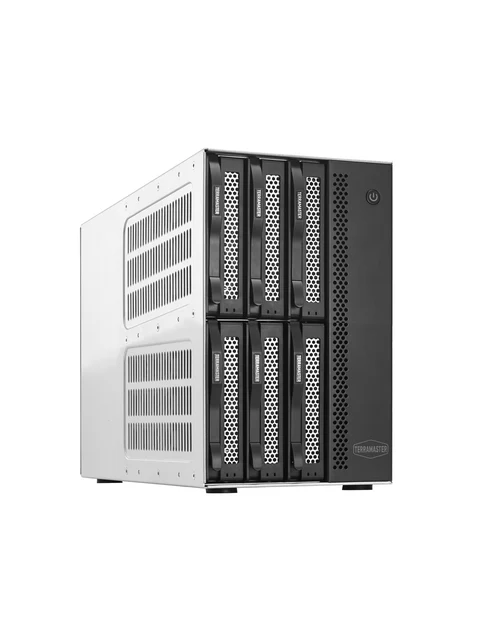

TerraMaster D6-320, 6-Bay USB 3.2 Gen2 10Gbps External Hard Drive Enclosure DAS
High Speed: The D6-320 hard drive enclosure adopts USB 3.2 Gen2 protocol for high-speed data transmission up to 10Gbps. With 6 hard drives installed, the read/write speed can reach up to 1,030MB/s (SATA III HDD 8TB x 6). With one hard disk installed, the read speed can reach 510MB/s (SATA III HDD 1TB SSD x 1).
Super-large Storage Space: The D6-320 HDD enclosure supports up to six 3.5"/2.5" SATA HDDs or 2.5" SATA SSDs, with a maximum single-drive capacity of 32TB for a total storage potential of 192TB. Note: The enclosure operates in standalone disk mode and does not support RAID arrays.

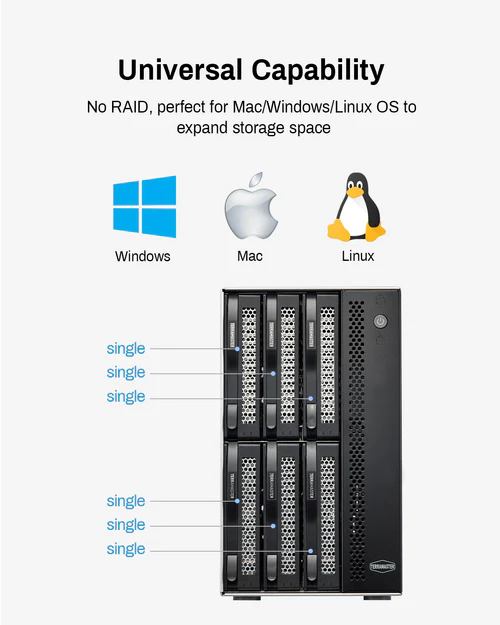

Plug and Play, Highly Compatible: The D6-320 DAS storage is a driver-free, plug-and-play device that offers broad compatibility with macOS, Windows, and Linux operating systems. It features a USB Type-C interface (includes a Type-C to Type-C cable) and supports a wide range of host interfaces, including USB 3.0, 3.1, 3.2, as well as Thunderbolt 3 and Thunderbolt 4.
Better Heat Dissipation: The D6-320 features an intelligent, temperature-controlled fan that automatically adjusts its speed based on HDD temperature. This low-noise design ensures optimal operating conditions and enhanced heat dissipation for your drives.
Expansion of NAS Storage Space: The D6-320 DAS storage can be connected via USB to compatible TerraMaster NAS devices. Using TerraMaster TOS (version 5.1 or later), you can create arrays and storage pools on the D6-320 to directly expand your NAS storage capacity.
Features:
- 6 Disk Slot Number
- 3.5" SATA HDD Compatible Disk Types
- 192 TB (32 TB drive x 6) Maximum Internal Raw Capacity

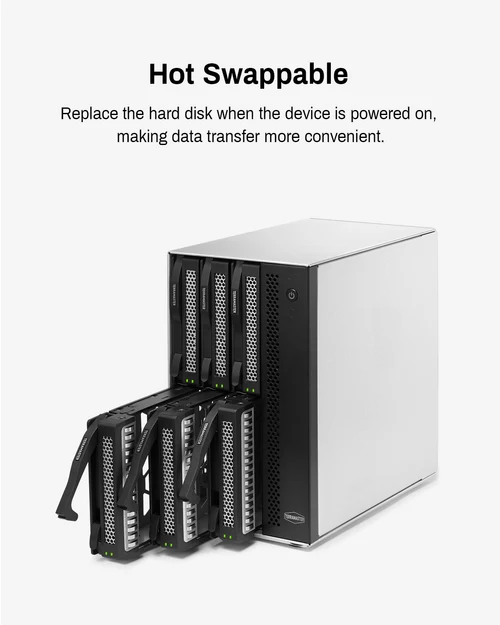

- Drive Hot Swap supported

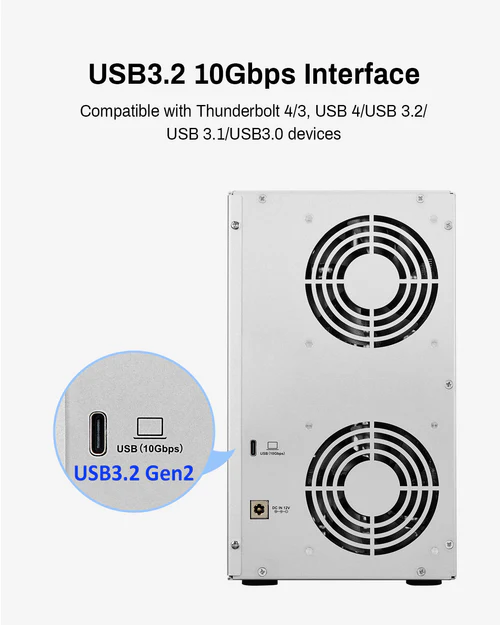

- USB3.2 Type-C gen2 10Gbps
- Read：1016MB/s ( SSD* 6 )
- Write：986MB/s ( SSD*6 )
- 120 W Power Supply
- 22.3dB(A) Noise Level
- Windows OS、Mac OS、Linux Supported OS
Specifications:
| Storage |
|
| Disk Slot Number |
6 |
| Compatible Disk Types |
3.5" SATA HDD |
| 2.5" SATA HDD |
| 2.5" SATA SSD |
| File System |
NTFS, APFS, Mac OS,FAT32,EXT4,exFAT |
| Maximum Internal Raw Capacity |
192 TB (32 TB drive x 6) (Capacity will vary along with the RAID type) |
| RAIDs Supported |
SINGLE DISK |
| Drive Hot Swap |
√ |
| HDD Sleep |
√ |
| External Ports |
|
| USB |
USB3.2 Type-C gen2 10Gbps |
| Power Socket |
DC IN 12V |
| Reading/writing Speed (max.) |
|
| Reading Speed (max.) |
Read：520MB/s ( SSD* 1 ); Read：1016MB/s ( SSD* 6 )； |
| Writing Speed (max.) |
Write：500MB/s ( SSD*1 ); Write：986MB/s ( SSD*6 )； |
| Appearance |
|
| Size (H*W*D) |
226 x 130 x 218 mm |
| Packaging Size (H*W*D) |
312 x 189 x 267 mm |
| Weight |
net weight: 3.4 Kg Gross Weight: 4.5 Kg |
| Others |
|
| System fan |
80 mm x 80 mm x25mm (x 2) |
| Fan mode |
Smart |
| Noise Level |
22.3dB(A) |
| Power Supply |
|
| Power Supply |
120 W |
| AC Input Voltage |
100V to 240V AC |
| Current Frequency |
50/60 HZ, Single Phase |
| Power Consumption |
42 W(Access) |
| Environment Temperature |
|
| Working Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature |
-20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity |
5% ~ 95% RH |
| Supported OS |
Windows OS、Mac OS、Linux |
| Warranty |
2 years |
| Certificate |
CE, FCC, CCC, KC |
| Environment |
RoHS compliance |
| Package Contents: |
Host unit (x1) |
| Power cord (x1) |
| USB Cable C to Type-C (10Gb) (0.8mx1)；USB Cable A to Type-C (10Gb) (0.8mx1) |
| Quick Installation Guide (x1) |
| Power adapter (x1) |
| Screws (several) |
| Limited Warranty Note x 1 |
