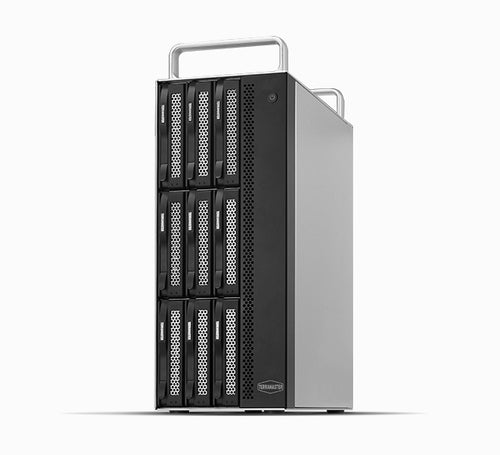

Veritable Hardware RAID Controller: The D8-332 Thunderbolt 3 storage is equipped with the latest dedicated RAID chip and high-speed cache memory to complete all RAID processing, which can provide true high-performance hardware RAID protection to ensure stable and high-performance data transmission. This 8-Bay Thunderbolt 3 storage is suitable for video editors working with real-time multi-channel HD and 4K video streams.
Lightning Fast Storage for Video Editing: Drawing on a pair of Thunderbolt 3 interfaces (40Gbps) and a hardware RAID controller, the D8-332 Thunderbolt 3 storage can operate at transferring speeds of 1600 MB/s under a 7200 RPM high-speed hard disk and RAID 0 array mode. Under RAID 5, the device can achieve a speed of 1440 MB/s. It works with the computers with Thunderbolt 3 or 4 port, NOT compatible with USB port.
Large-Capacity Storage] Multiple hardware RAID: RAID 0/1/5/10/JBOD, Single. Support up to 160TB storage capacity (20TB x 8, in RAID 0); users can also daisy-chain with other Thunderbolt 3 storage devices via the Thunderbolt 3 interface, which can achieve an enormous 960 TB capacity by linking together six D8-332 Thunderbolt 3 devices.
One Device with Multifunctions: Capitalizing on the Thunderbolt3 and DP interface, the D8-332 Thunderbolt 3 storage supports multi-screen displays with up to 3 monitors or daisy-chain up to 6 devices to create the smartest workspace. This is an ideal solution for multitaskers, especially when efficiency is the end goal.

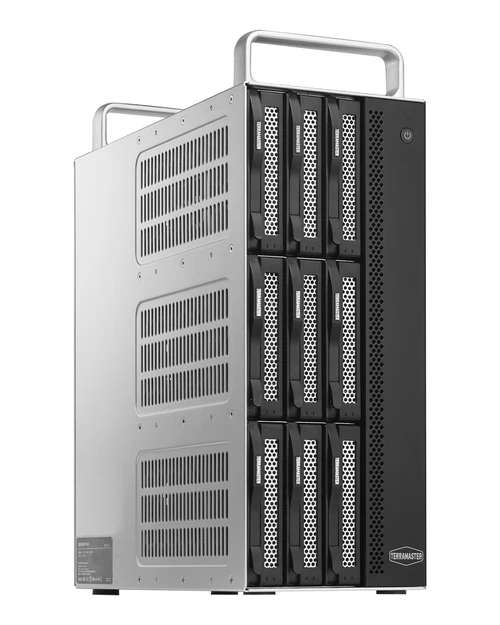

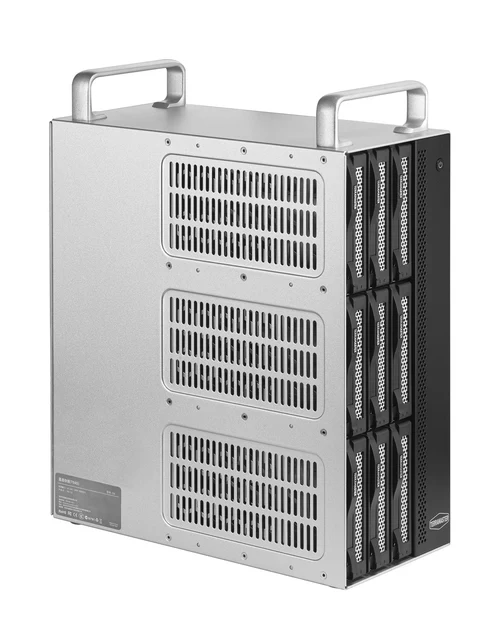

Professional and Safe: Equipped with 3*80-mm inbuilt temperature-controlled smart fans ensure excellent heat dispersion. In addition, its sturdy and durable, metal body and humanized design with double handles can be easily and safely moved to meet the needs of the studio and field work.
Features:
- 8 x SATA HDD/SSD disk slots
- Supports up to 160 TB internal raw capacity
- Supports SINGLE DISK, JBOD, RAID 0, RAID 1, RAID 5 and RAID10
- Hardware RAID and RAID Manager Software
- Supports RAID online expansion, migration and auto-rebuilding
- Drive Hot Swap and SSD Cache support
- 40Gb Thunderbolt 3 data transmission and daisy chain
- Reading speed up to 1600MB/sec
- 250 W power supply with 100V to 240V AC input
- Supports Windows OS and Mac OS
Specifications:
| Storage |
|
| Processor Model |
INTEL JHL7440 + Marvell 88SE9485 |
| Disk Slot Number |
8 |
| Compatible Disk Types |
3.5" SATA HDD |
| 2.5" SATA HDD |
| 2.5" SATA SSD |
| File System |
NTFS, APFS, Mac OS,FAT32,EXT4,exFAT |
| Maximum Internal Raw Capacity |
160 TB (20 TB drive x 8) (Capacity will vary along with the RAID type) |
| RAIDs Supported |
SINGLE DISK,JBOD,RAID 0,RAID 1,RAID 5,RAID10
Note: Mac 0S computers do not support RAlD online expansion and migration. |
| Power Resume |
/ |
| Hardware RAID |
√ |
| RAID Manager Software |
√ |
| RAID Manager Software Language |
English, Chineses, Japanese |
| RAID Online Expansion |
√ |
| RAID Migration |
√ |
| RAID Auto-rebuilding |
√ |
| Drive Hot Swap |
√ |
| The hard drive hibernates as the computer system hibernates |
/ |
| The hard drive is scheduled to hibernate |
/ |
| HDD S.M.A.R.T. Inspection |
√ |
| Sector Inspection and Parity Check |
√ |
| SSD Cache |
√ |
| Daisy Chain |
√ |
| HDD NCQ Technology |
√ |
| Alert Notice |
√ |
| Event Log |
√ |
| External Ports |
|
| USB Device |
/ |
| USB Host |
USB 3.1 Gen2 host (Use to connect USB storage device) |
| Thunderbolt Data Transmission |
40Gb Thunderbolt 3 x 1 |
| Thunderbolt Daisy Chain |
40Gb Thunderbolt 3 x 1 |
| DP Interface |
DP 1.4 x 1 |
| RAID switch |
/ |
| Power Socket |
AC IN 220V |
| Reading/writing Speed (max.) |
|
| Reading Speed (max.) |
Read: 1600MB/sec (Use SSD under RAID 0 mode) |
| Writing Speed (max.) |
Write: 1200MB/sec (Use SSD under RAID 0 mode) |
| Appearance |
|
| Size (H*W*D) |
334 x 135 x 295 mm |
| Packaging Size (H*W*D) |
467 x 225 x 390 mm |
| Weight |
net weight: 6.5Kg Gross Weight: 8.5Kg |
| Others |
|
| System fan |
80 mm x 80 mm x25mm 3 pcs |
| Fan mode |
Smart |
| Noise Level |
31.2 dB(A) (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in idle state) |
| Power Supply |
|
| Power Supply |
250 W |
| Redundancy Power Supply |
/ |
| AC Input Voltage |
100V to 240V AC |
| Current Frequency |
50/60 HZ, Single Phase |
| Power Consumption |
96.8W(Access) |
| Environment Temperature |
|
| Working Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature |
-20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity |
5% ~ 95% RH |
| Supported OS |
Windows OS、Mac OS |
| Certificate |
CE, FCC, CCC, KC |
| Environment |
RoHS compliance |
| Package Contents: |
Host unit (x1) |
| Power cord (x1) |
| Thunderbolt 3 cable (40Gbps) 2 Meter (x1) |
| Quick Installation Guide (x1) |
| / |
| Screws (several) |
| Limited Warranty Note x 1 |
