Cloud Sync Integration: TerraMaster CloudSync seamlessly connects your TNAS with Google Drive, OneDrive, Dropbox, Baidu Cloud, and other popular cloud services, supporting flexible sync strategies, encryption, and bandwidth control for unified hybrid storage.
Features:
- Intel® N150 Quad-Core processor with Max burst up to 3.6 GHz.
- 8 GB DDR5 non-ECC SODIMM memory, expandable up to 32 GB.
- Two drive bays supporting 3.5" SATA HDD, 2.5" SATA HDD and 2.5" SATA SSD.
- Up to 60 TB maximum internal raw storage capacity.
- Three M.2 2280 NVMe slots with PCIe 3.0 x1 support.
- Two RJ-45 5GbE network ports for high-speed connectivity.
- 4K hardware transcoding supporting H.264, H.265, MPEG-4 and VC-1.
- 48 W power supply with 100V - 240V AC input voltage support.
Specifications:
| Processor |
|
| Processor Model |
Intel® N150 Quad-Core |
| Processor Architecture |
x86 64-bit |
| Processor Frequency |
Max burst up to 3.6 GHz |
| Hardware Transcoding Engine |
H.264, H.265, MPEG-4, VC-1; maximum resolution:
4K (4096 x 2160); maximum frame rate per second (FPS): 60
|
| Hardware Transcoding Engine |
√ |
| Memory |
|
| System Memory |
8 GB DDR5 non-ECC SODIMM |
| Pre-installed Memory Module |
8 GB DDR5 non-ECC SODIMM (1x 8 GB) |
| Total Memory Slot Number |
1 (DDR5 SODIMM) |
| Maximum Supported Memory |
32 GB DDR5 non-ECC SODIMM |
| Storage |
|

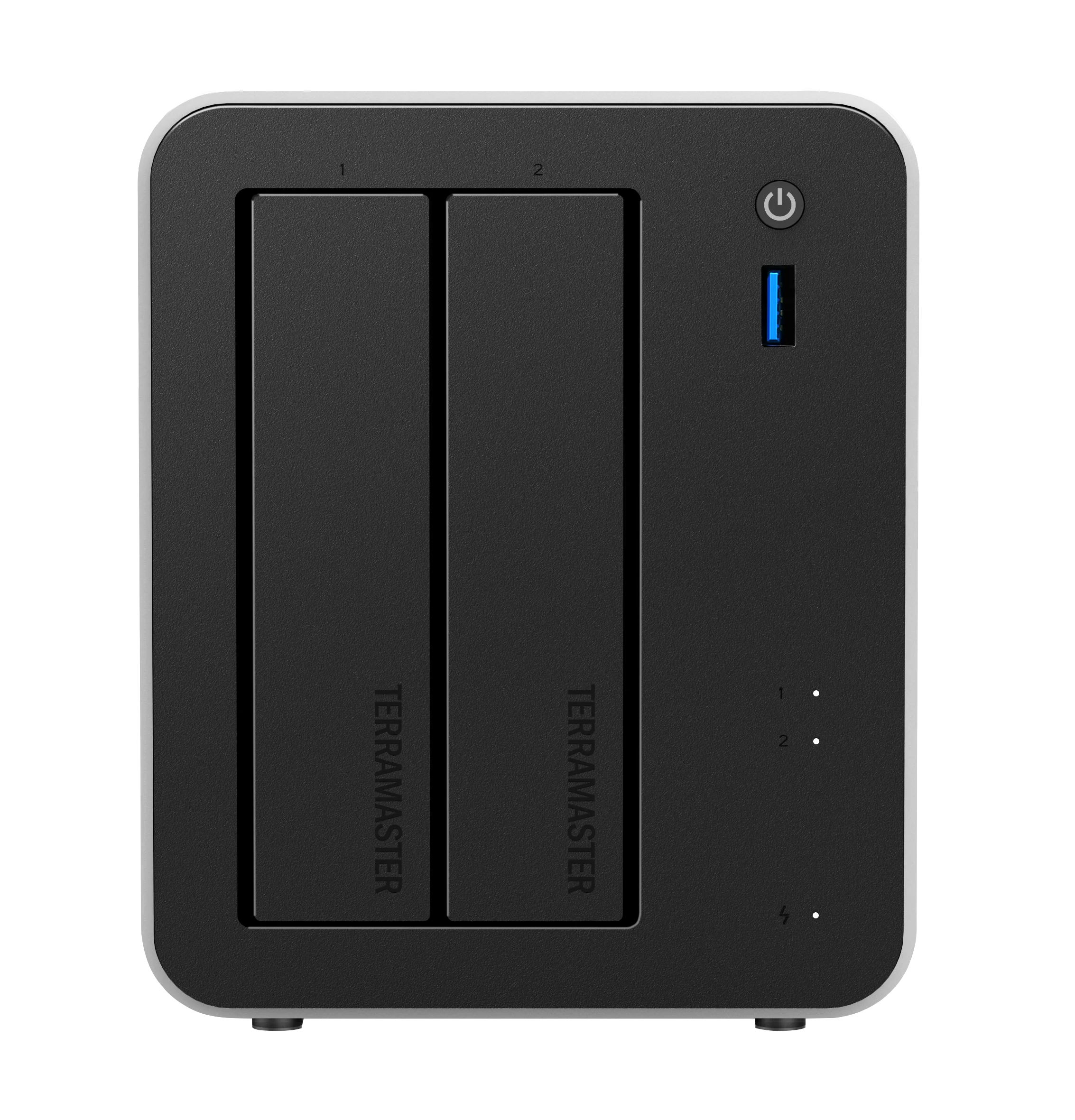

| Disk Slot Number |
2 |
| Compatible Drive types |
3.5" SATA HDD2.5" SATA HDD2.5" SATA SSD |
| Maximum Internal Raw Storage Capacity |
60 TB (30TB x2) (Capacity may vary by RAID types) |

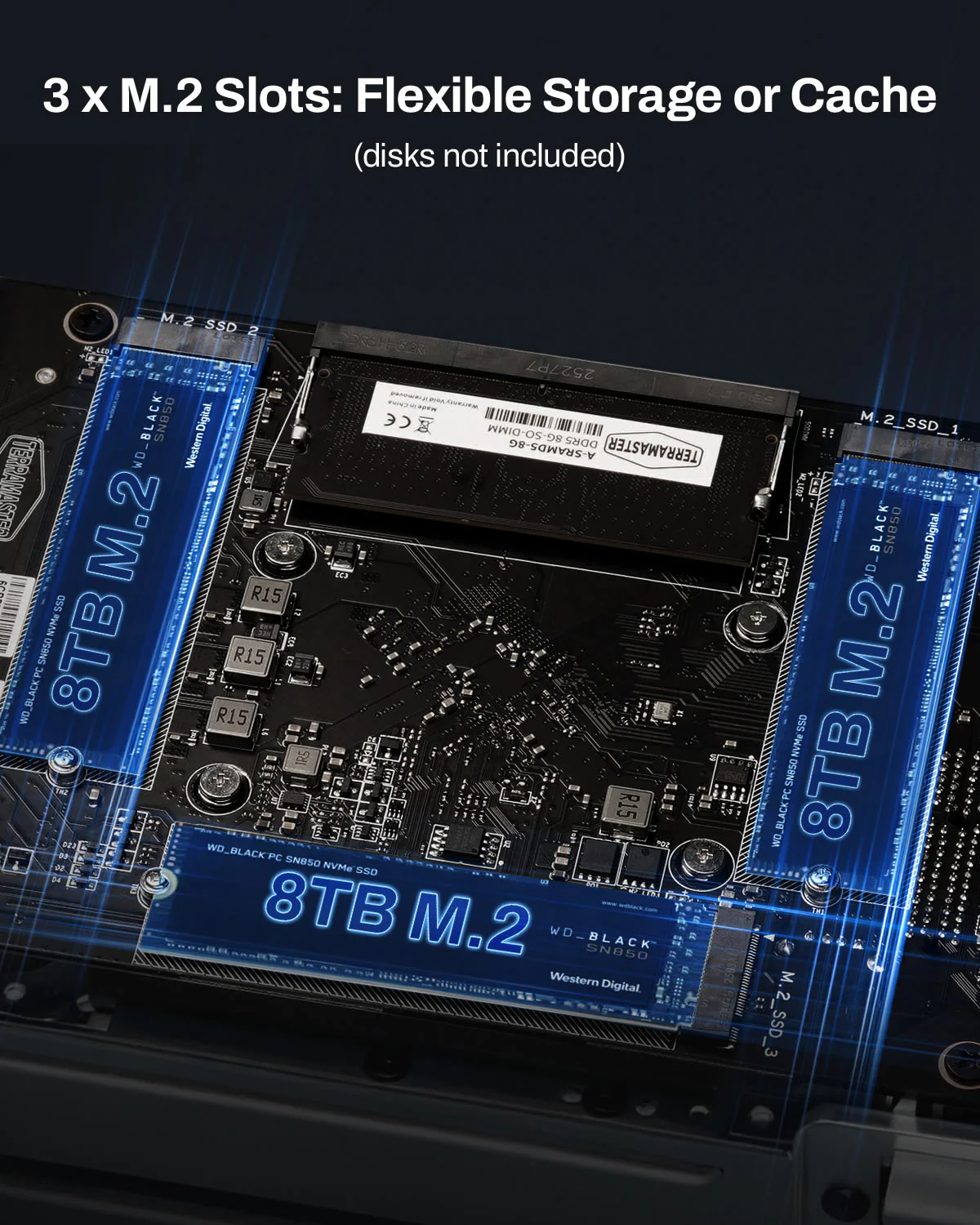

| M.2 2280 NVMe Slot |
3 (PCIe 3.0 x1） |

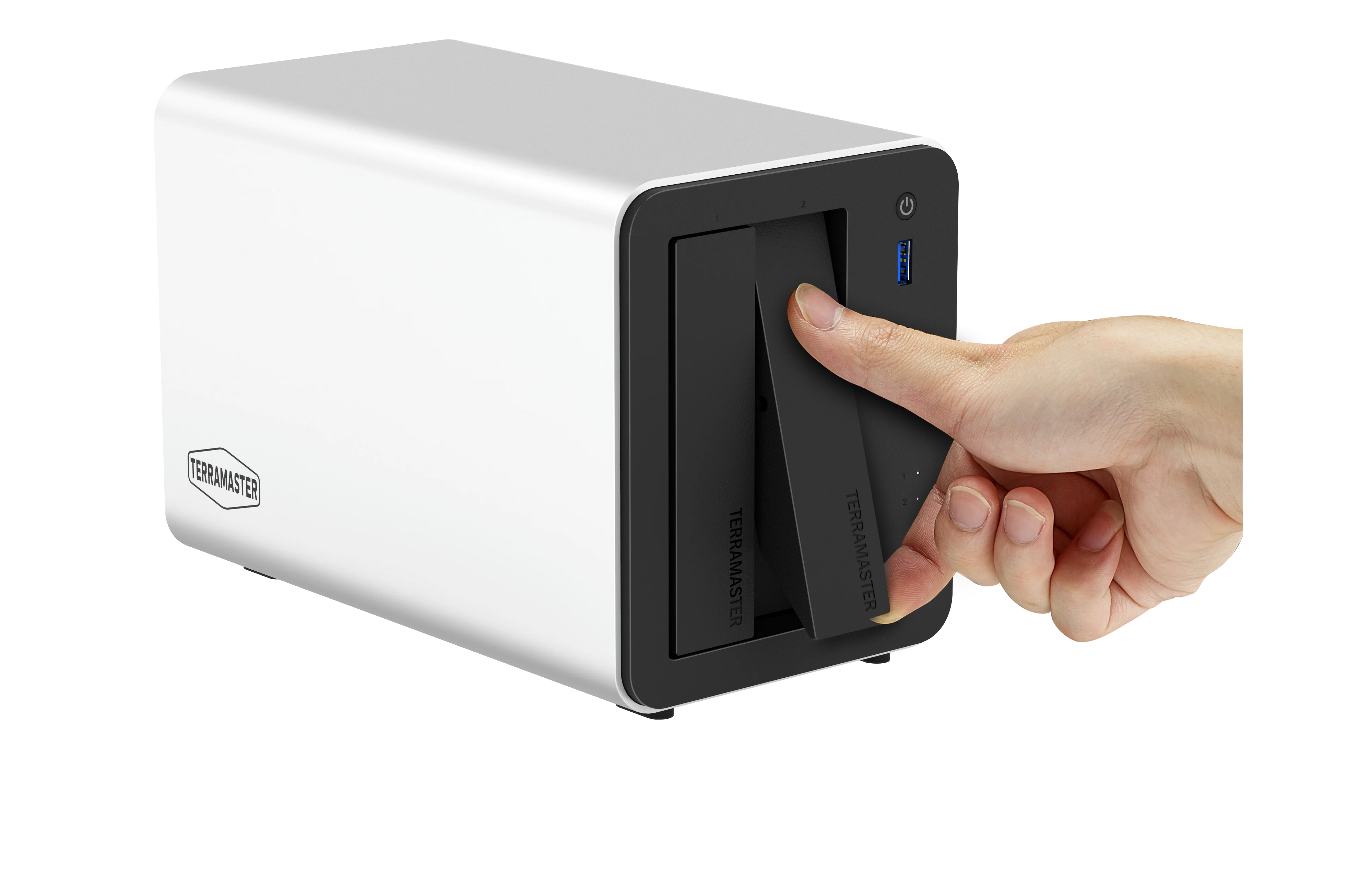

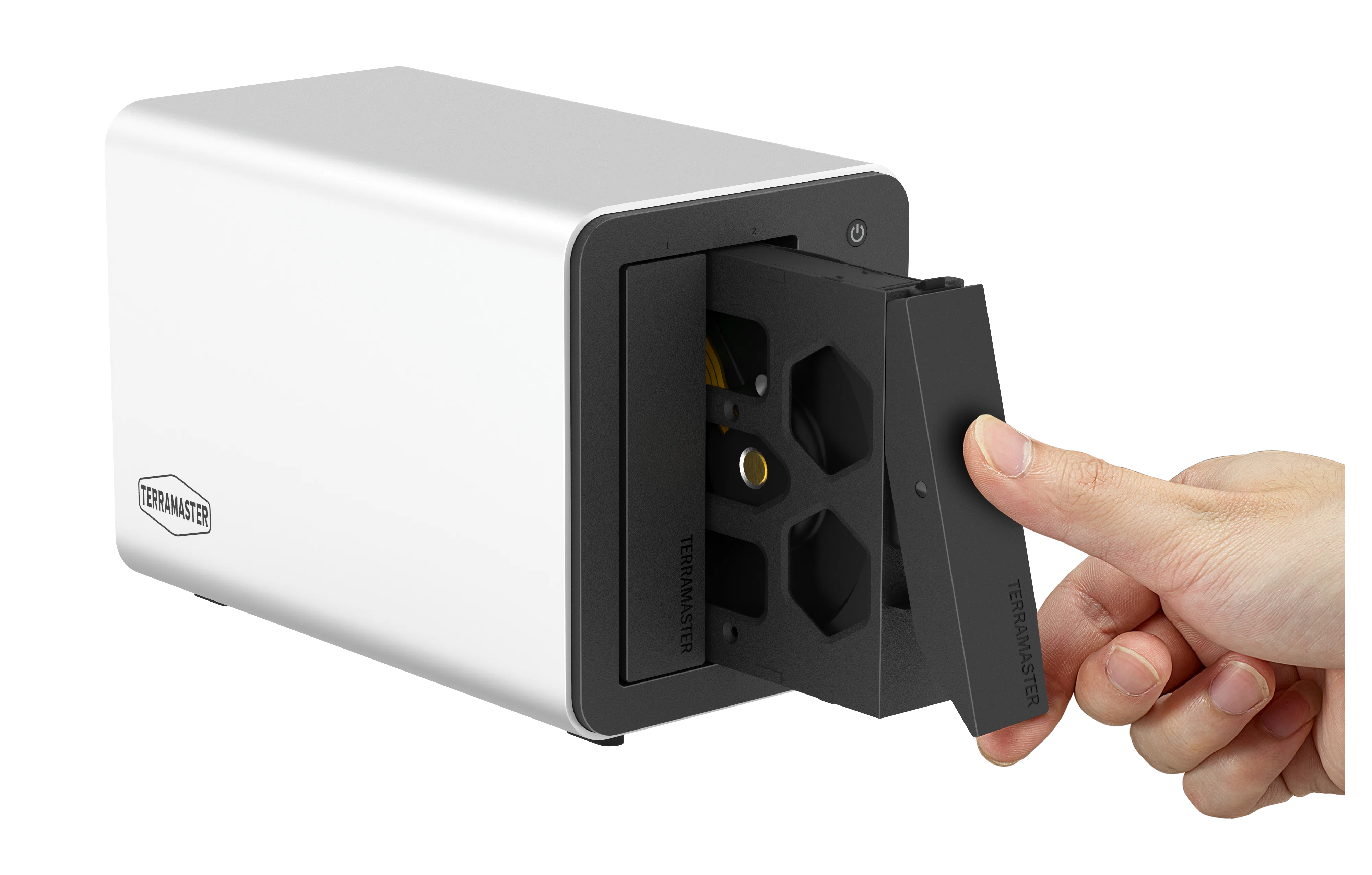

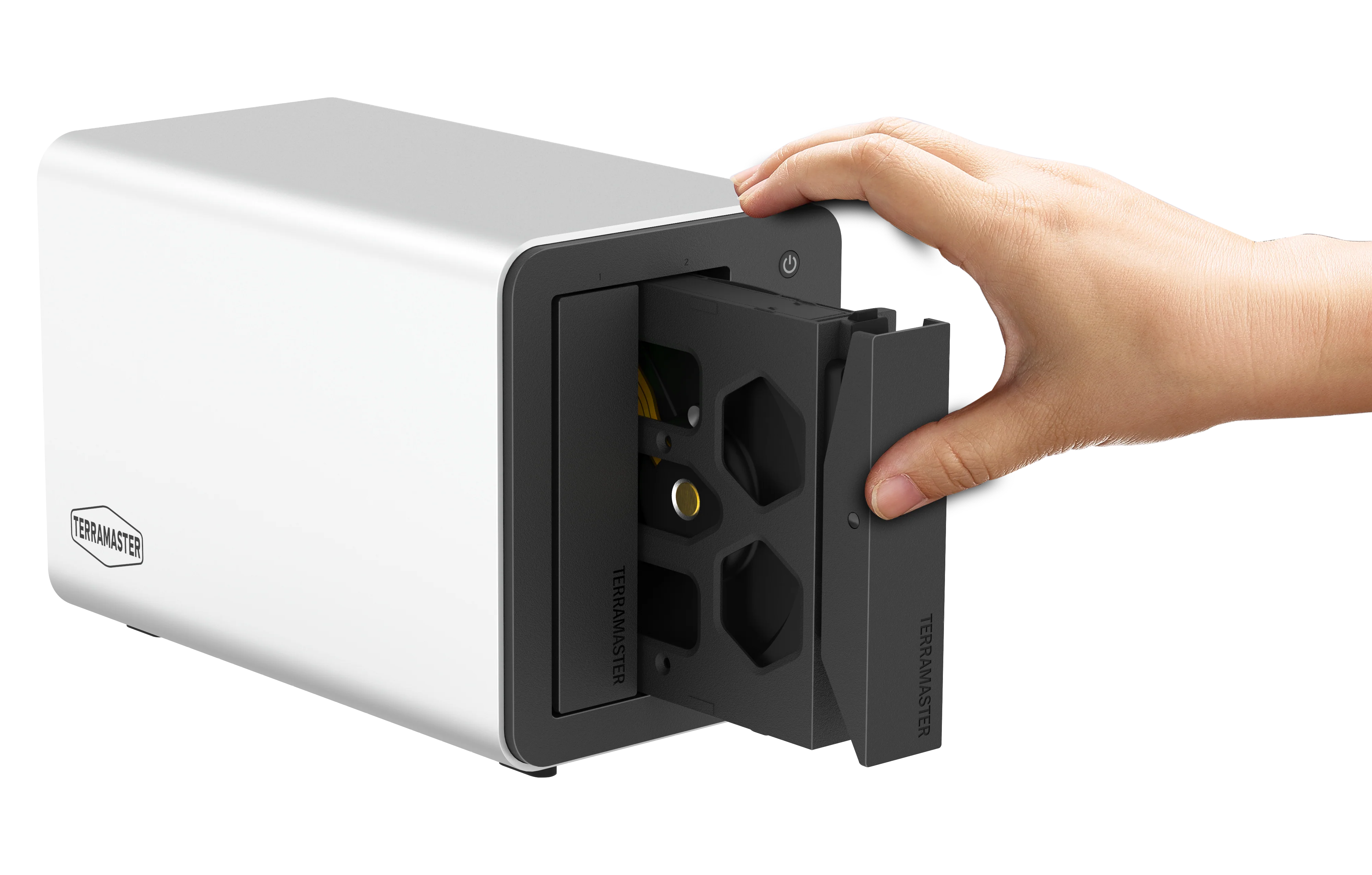

| Drive Hot Swap |
√ |
| File System |
|
| Internal Drive |
Btrfs, EXT4 |
| External Drive |
EXT3, EXT4, NTFS, FAT32, HFS+, BTRFS |

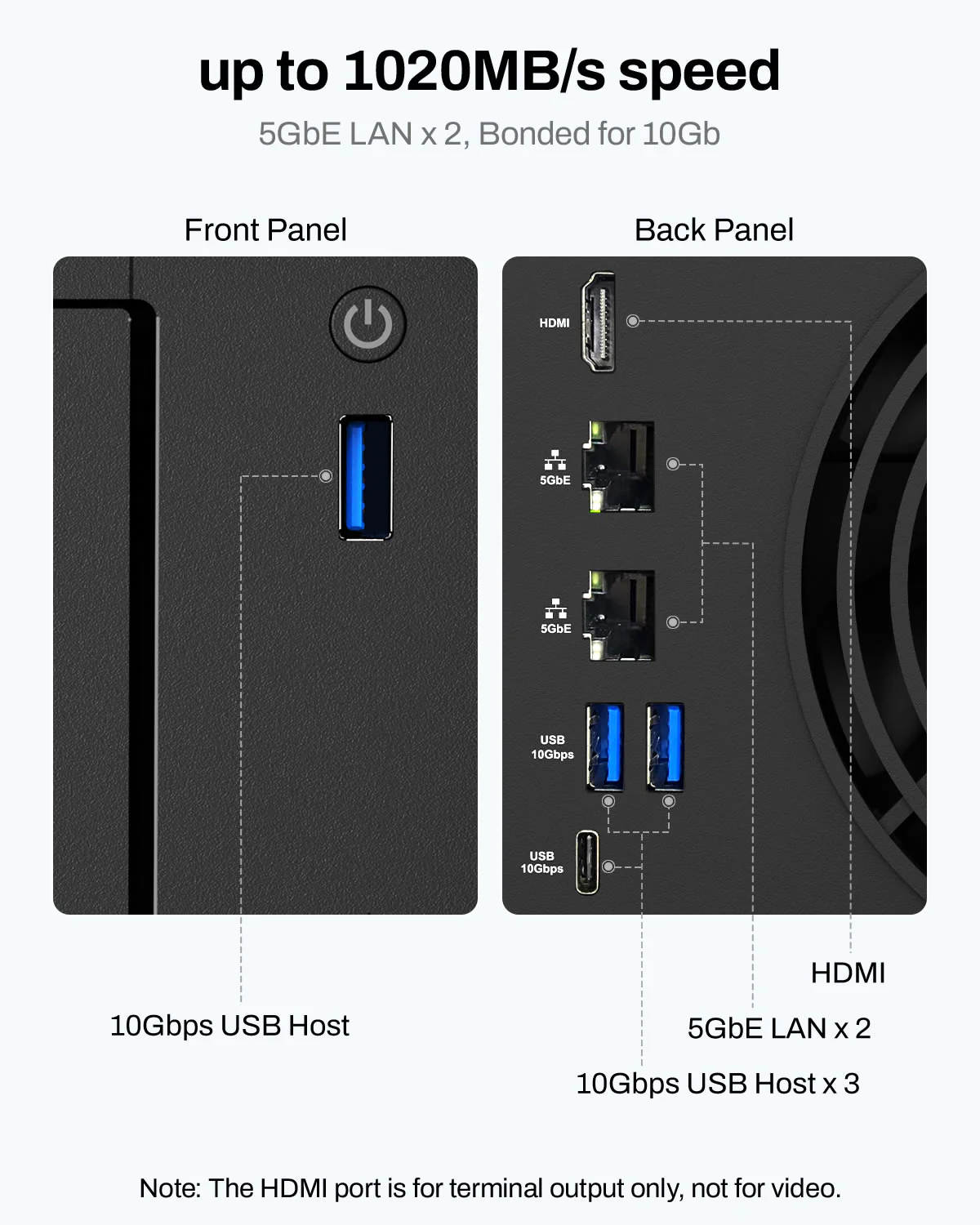

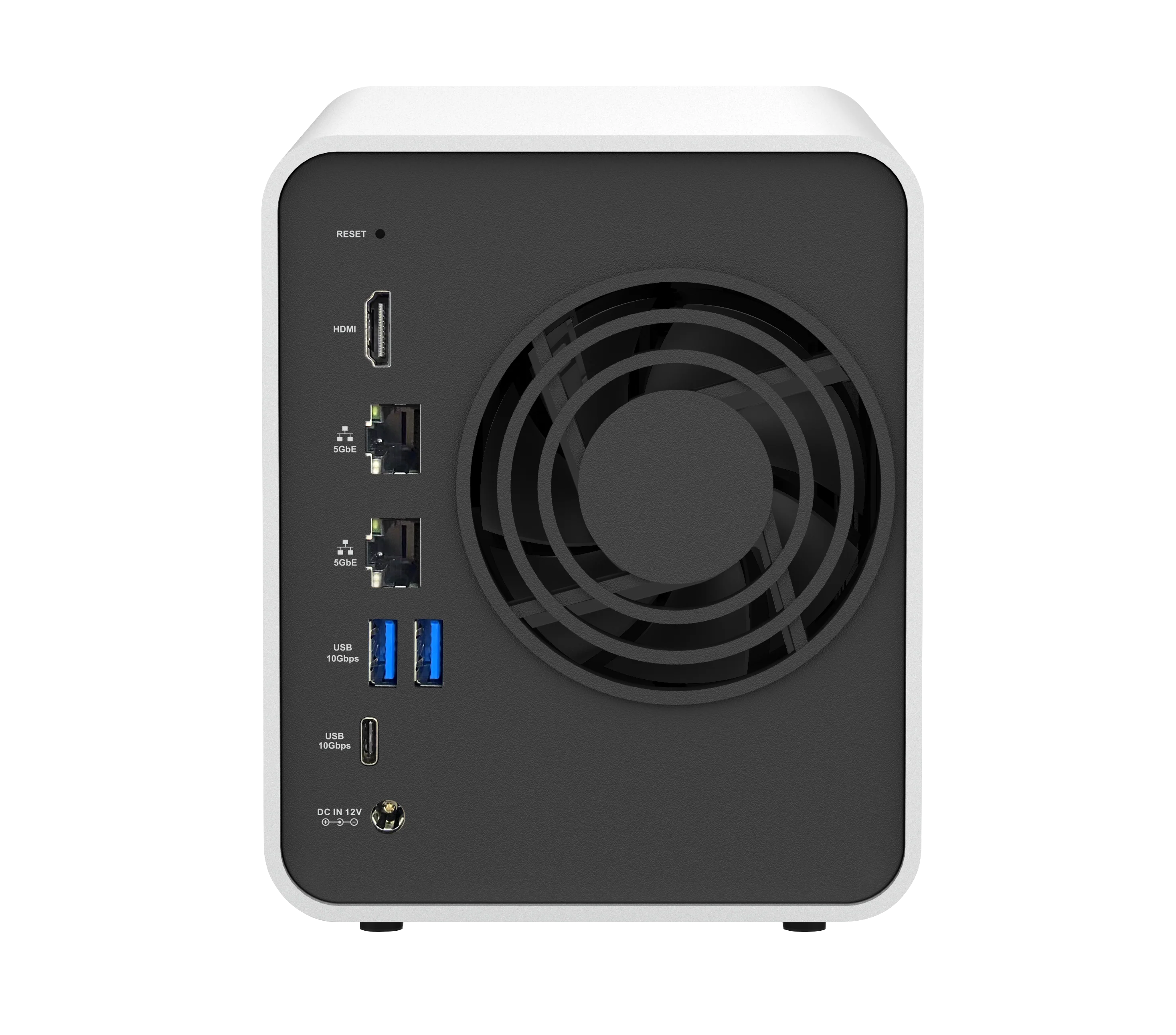

| External Ports |
|
| RJ-45 5GbE Network Port |
2 |
| USB3.2 Host Port |
3 x Type A + 1 x Type C |
| HDMI |
1 x HDMI |
| Appearance |
|
| Size (H*W*D) |
150*122*219 mm |
| Packaging Size (H*W*D) |
186*217*277 mm |
| Weight |
Net Weight: 2.2 Kg , Gross Weight: 3.1 Kg |
| Cooling |
|
| System Fan |
80 x 80 x 25mm 1PCS |
| Fan Mode |
Smart, High speed, Middle speed, Low speed |
| Noise Level |
20.0 dB(A) （Using 2 SATA HDDs/SSDs in standby mode;
Test environment noise: 17.3dB(A); Test distance: 1m）
|
| Power |
|
| Power Supply |
48 W |
| Redundancy Power Supply |
/ |
| AC Input Voltage |
100V - 240V AC |
| Current Frequency |
50/60 Hz, Single frequency |
