| Processor |
|
| Processor Model |
Intel® N95 |
| Processor Architecture |
X.86 64-bit |
| Processor Frequency |
Max burst up to 3.4 GHz |
| Hardware Transcoding Engine |
H.264, H.265, MPEG-4, VC-1;maximum resolution: 4K (4096 x 2160);
maximum frame rate per second (FPS): 60
|
| Hardware Encryption Engine |
√ |
| Memory |
|
| System Memory |
8 GB DDR5 non-ECC SODIMM |
| Pre-installed Memory Module |
8 GB DDR5 non-ECC SODIMM (1x 8 GB) |
| Total Memory Slot Number |
1 (DDR5 SODIMM) |
| Maximum Supported Memory |
32 GB DDR5 non-ECC SODIMM |
| Storage |
|
| Disk Slot Number |
4 |

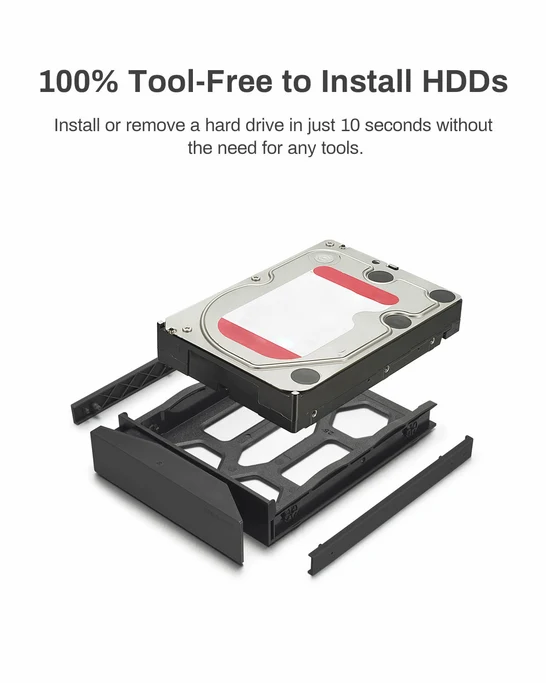

| Compatible Drive types |
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
|
| Maximum Internal Raw Storage Capacity |
88 TB (22 TB x4) (Capacity may vary by RAID types) |
| Drive Hot Swap |
√ |
| File System |
|
| Internal Drive |
Btrfs, EXT4 |
| External Drive |
EXT3, EXT4, NTFS, FAT32, HFS+, BTRFS |

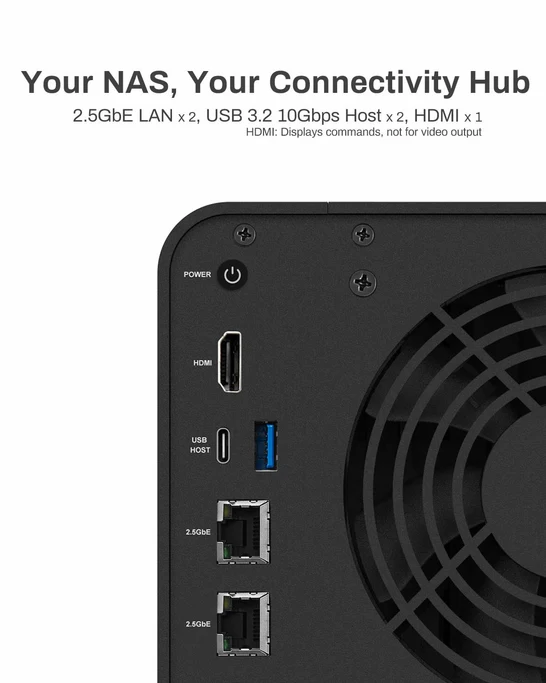

| External Ports |
|
| RJ-45 2.5GbE Network Jack |
2 |
| USB3.2 Host Port |
2(10Gbps) |
| HDMI |
1(HDMI 2.0b) |
| M.2 2280 NVMe Slot |
2 (PCIe 3.0 x1） |
| Appearance |
|
| Size (HWD) |
222 x 179 x 154 mm |
| Packaging Size (HWD) |
300 x 275 x 186 mm |
| Size (HWD) |
3.4 kg |
| Others |
|

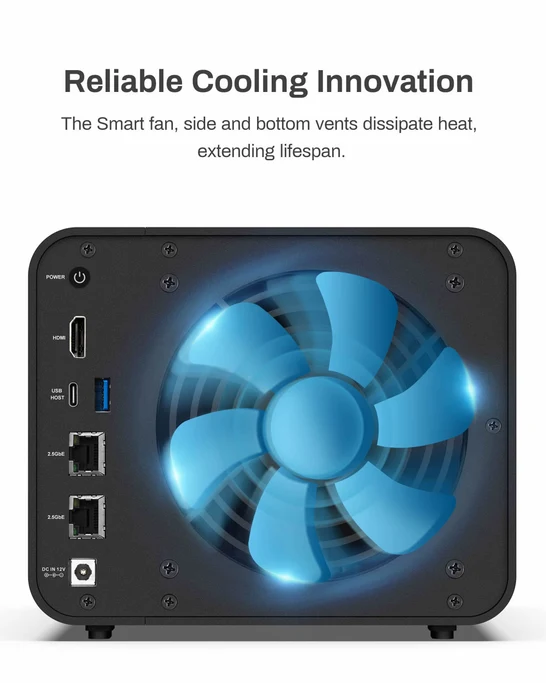

| System Fan |
120 x 120 x 25mm 1PCS |
| Fan Mode |
Smart, High speed, Middle speed, Low speed |

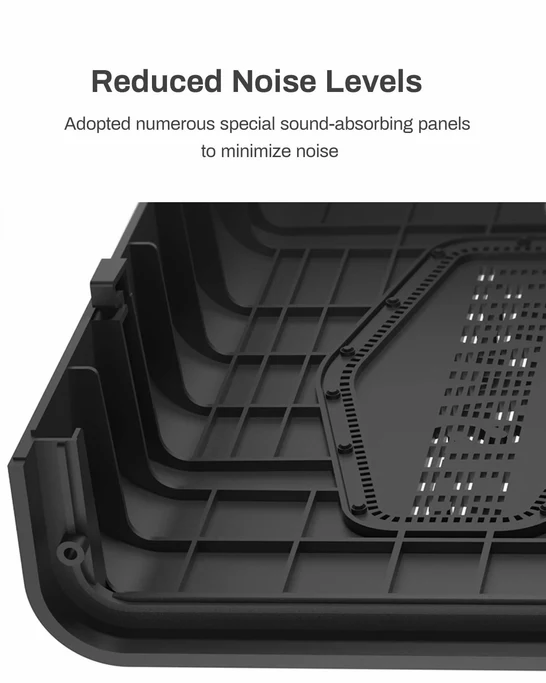

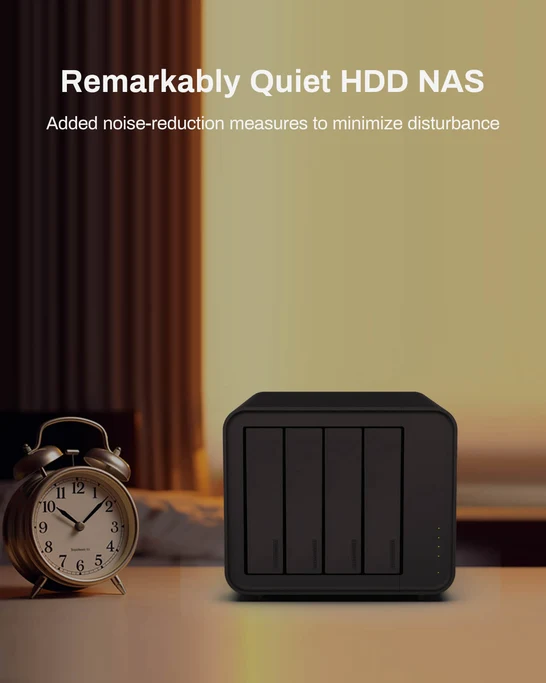

| Noise Level |
21.0 dB(A) （Using 2 SATA HDDs/SSDs in standby mode;
Test environment noise: 17.3dB(A); Test distance: 1m）
|
| Power Supply |
90W |
| Redundancy Power Supply |
/ |
| AC Input Voltage |
100V - 240V AC |
| Current Frequency |
50/60 Hz, Single frequency |
| Power Consumption |
22.0 W(Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in read/write state) |
| 13.0 W (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in hibernation) |
|
| Limited warranty |
2 years |
| Certificate |
FCC, CE, CCC, KC |
| Environment |
RoHS, WEEE |
| Temperature |
|
| Working Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature |
-20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity |
5% ~ 95% RH |
| TOS Features |
|
| OS Supported |
|
| Supported Client OS |
Windows OS, Mac OS, Linux OS |
| Supported Web Browsers |
Google Chrome 97.0.xxxx, Mozilla Firefox 9.3,Apple Safari 12.1 ; Microsoft Edge 99.0.xx or later version. |
| Supported mobile OS |
iOS14.0, Android 10.0 or later version |
| Storage Management |
|
| Supported RAID Types |
TRAID, Single, JBOD, RAID 0, RAID 1, RAID5, RAID 6, RAID 10 |
| Maximum Internal Volume Number |
256 |
| Maximum iSCSI Target |
128 |
| Maximum iSCSI LUN |
256 |
| Volume Expansion with Larger HDDs |
TRAID, RAID 1,RAID5,RAID 6,RAID10 |
| Maximum iSCSI LUN |
TRAID |
| Volume Expansion by Adding a HDD |
TRAID, RAID5,RAID6 |
| File Services |
|
| File Protocol |
SMB/AFP/NFS/FTP/SFTP/WebDAV |
| Maximum Concurrent SMB/AFP/FTP/SFTP Connections |
512 |
| Account & Shared Folder |
|
| Maximum local user's account number |
2048 |
| Maximum local group number |
512 |
| Maximum shared folders number |
512 |
| Maximum shared folders syncing tasks |
8 |
| Networking |
|
| TCP/IP |
IPv4/IPv6 |
| Protocols |
CIFS/SMB, NFS, FTP, SFTP, HTTPS, SSH, iSCSI, SNMP |
